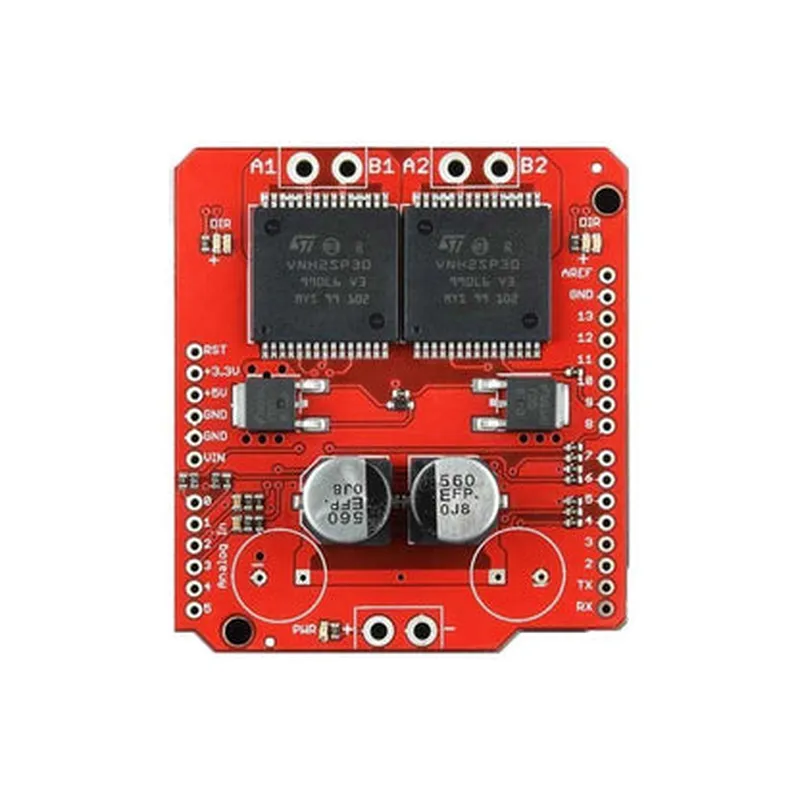

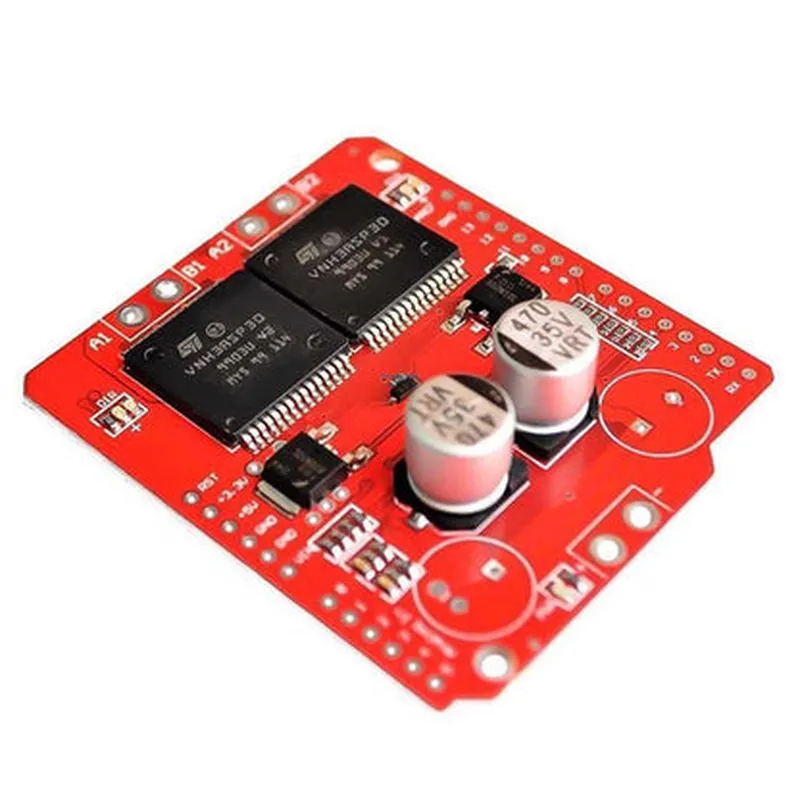

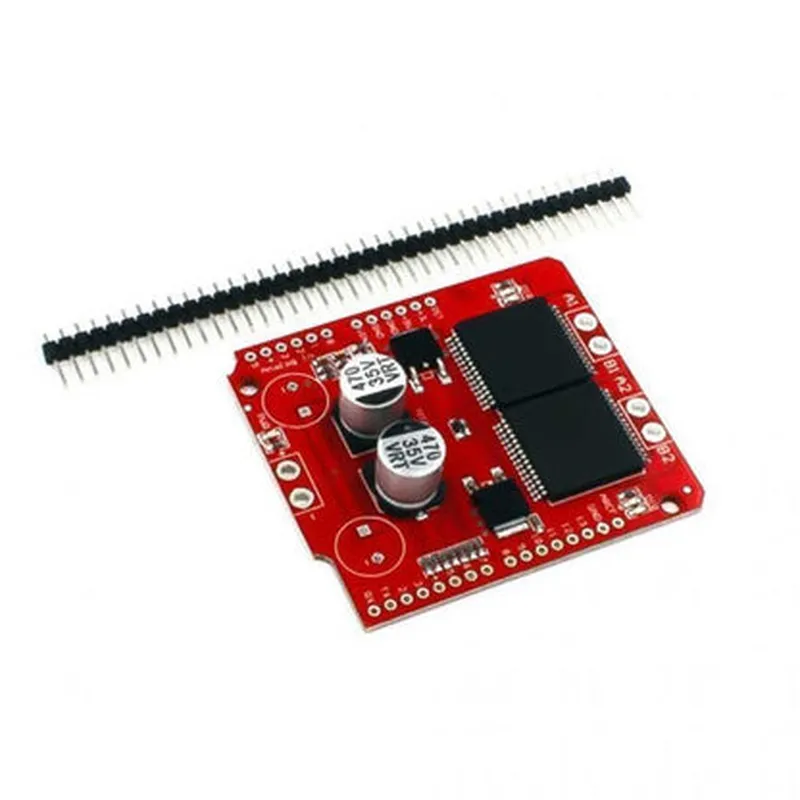

Description: 1. The Dual Monster Moto Shield VNH3ASP30 is an IoT-compatible motor driver shield designed for Arduino boards, enabling easy control of two DC motors. 2. Features two independently controlled H-bridge circuits based on the VNH3ASP30 motor driver IC, providing high torque output and improved efficiency. 3. Offers various driving modes like Acceleration, Brake, and Coast, allowing users to configure motion control according to their specific use cases. 4. Integrates a current sensor for real-time monitoring of motor current draw, helping to ensure safe operation and prevent potential overloads. 5. Supports bidirectional motor control, enabling reversing direction without the need for additional components. 6. Enables PID (Proportional-Integral-Derivative) speed control through an optional library or external controller, offering fine motor adjustment. 7. Compatible with Arduino Uno, Duemilanove, Leonardo, and other popular Arduino boards, making it a versatile choice for various
| Specification | Details |
|---|---|
| Motor Driver Type | Dual high-power motor driver |
| Chipset | VNH3ASP30 |
| Motor Support | Dual brushed DC motors 10A each |
| Voltage Input | 5V to 12V (recommended range) |
| Current Limit | Adjustable via potentiometer |
| Thermal Protection | Thermal shutdown automatic disable |
| Operating Temperature | -40°C to +85°C |
| Dimension | 54mm x 20mm x 15mm (including pins) |
| Weight | Approximately 28g |
| Power Input | DC input via VCC pin |
| Operating Modes | Speed control direction control |
| Communication | No ( standalone motor driver) |
| Mounting | Top mount screw holes for secure attachment |
