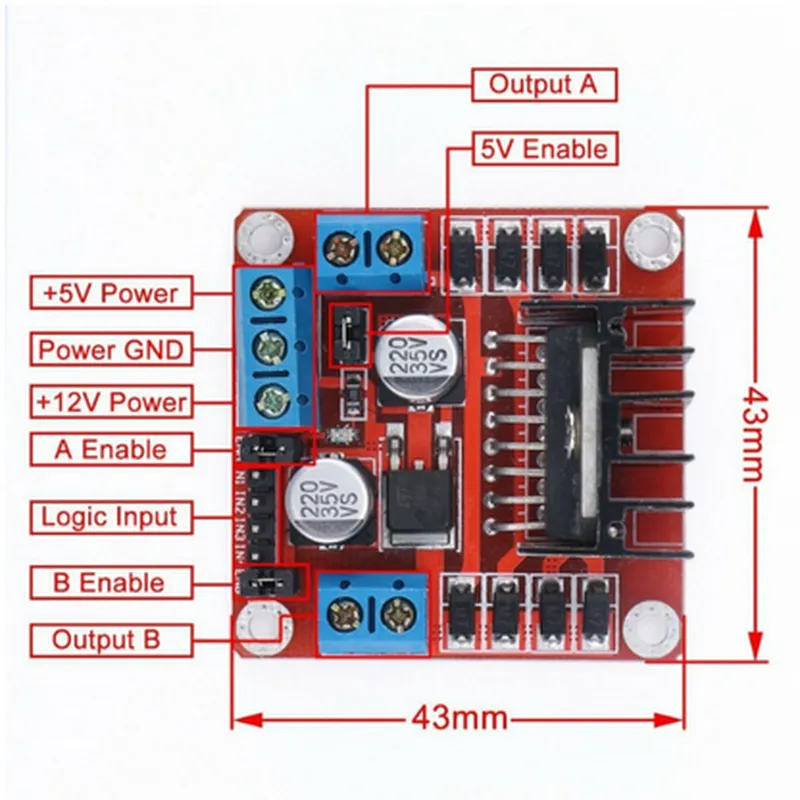

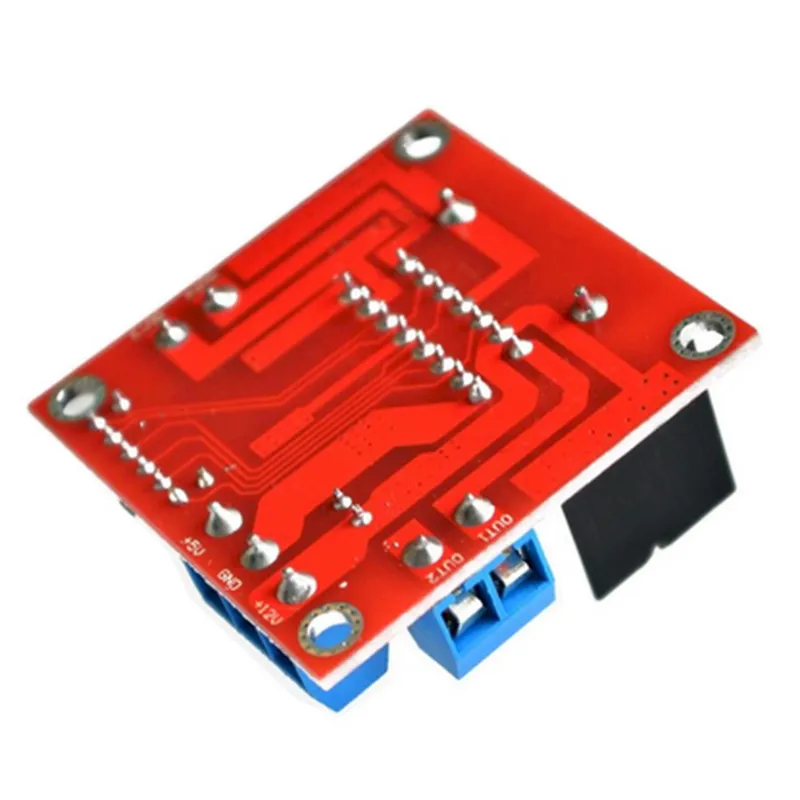

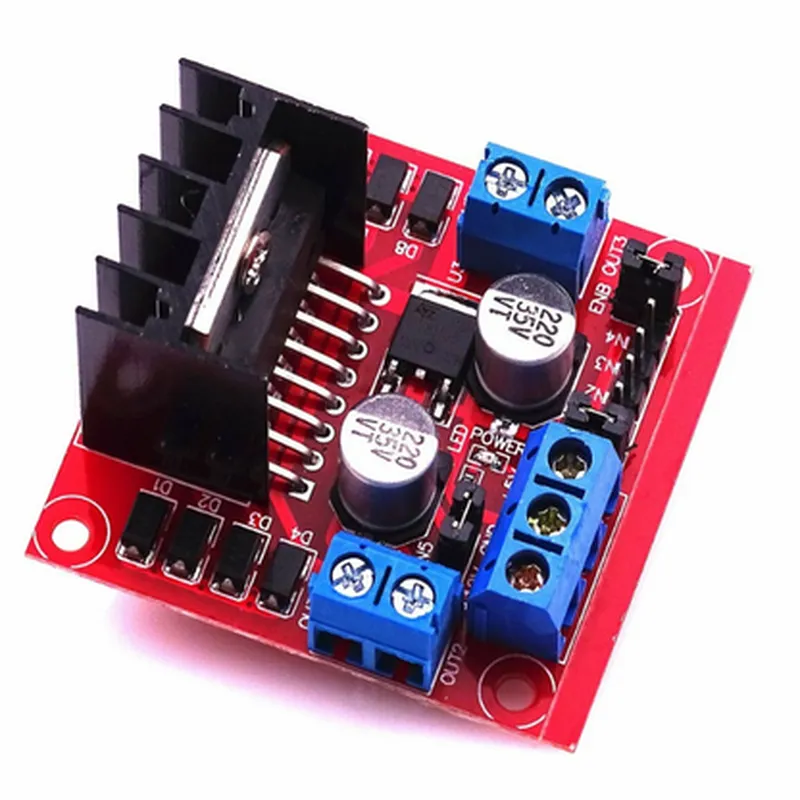

Description: 1. Dual Channel Motor Driver: L298N is a dual full-bridge driver module capable of driving two DC motors or one bidirectional motor each. 2. PWM Control: It features PWM (Pulse Width Modulation) input pins for speed control of the connected motors, enabling precise adjustment and smooth operation. 3. Efficient Power Management: L298N incorporates internal flyback diodes, which help in recovering energy from the motor back EMF during reverse direction movement, reducing power loss and enhancing efficiency. 4. Protection Features: The module includes overload protection and thermal shutdown to safeguard the motors from potential damages due to excessive current or high temperatures. 5. Versatile Interfacing: It has a wide compatibility range as it can be controlled by 5V or 3.3V microcontrollers through UART, TTL logic, or I²C interface. 6. Flexible Connection Options: The motor driver offers various input and output configurations - H-bridge (full bridge) for DC motors, or half-br
| Specification | Details |
|---|---|
| Specification | Detail |
| Output Power | Up to 2A per channel |
| Input Voltage | 4.5V - 36V (for both channels) |
| Operating Voltage | 8V - 28V (dual supply) |
| Current Limiting | Adjustable up to 1A |
| PWM Frequency Range | 0-100 kHz (via onboard potentiometer) |
| Interface | GPIO (TTL logic level) |
| Protection Features | Overheat protection short-circuit protection |
| Operating Temperature | -40°C to 85°C |
| Size | Typically around 50mm x 30mm x 15mm |
| Weight | Approximately 60g |
1. Stepper Motor Driver Expan...
1. Motor: A2212 is a high-per...

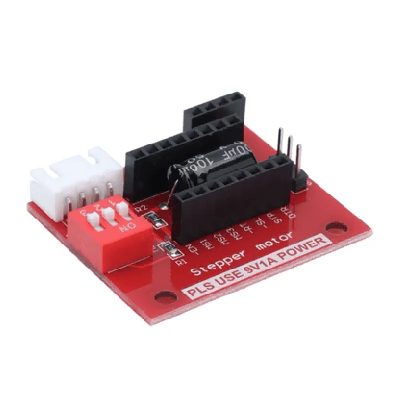

1. Stepper Motor Driver Expan...
1. L293D is a 4-channel, dual...
1. The Arduino L293D Motor Dr...

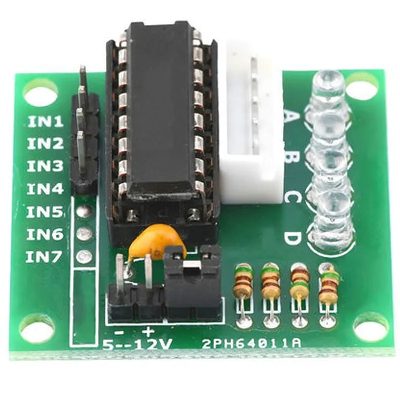

1. ULN2003 is a 7214A based 8...
