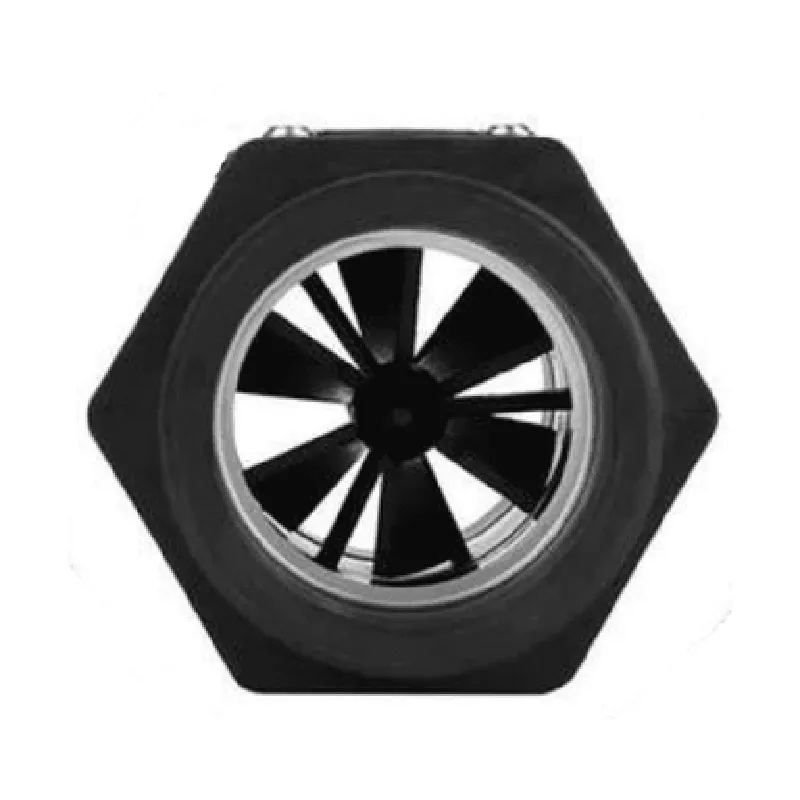

Description: 1. Size and Connection: The 2 Inch Water Flow Sensor YF - DN50 is a versatile component with a diameter of 2 inches, making it suitable for larger pipes with DN50 (DN stands for Diameter in Millimeters) thread connections. 2. Principle of Operation: This sensor employs an ultrasonic technology to measure the volume flow rate and direction of water flowing through the pipe by sending sound waves and measuring their reflections. 3. Accuracy and Range: With a measuring range from 0 to 15 m³/h, this sensor provides high accuracy (±3% of reading + ±3% of full scale) for various industrial and household water applications. 4. Installation and Integration: Designed for easy installation in pipelines or water tanks with simple wiring connections (power, signal, and ground). It is compatible with various data acquisition systems and SCADA software for seamless integration. 5. Temperature Compensation: The sensor features temperature compensation capabilities to ensure accurate readings eve
| Specification | Details |
|---|---|
| Model Number | YF-DN50 |
| Flow Range | 0-200 L/min (0-5.28 GPM) |
| Accuracy | ±3% |
| Measurement Unit | Liter/Minute Gallon/Minute |
| Sensor Type | Turbine Flow Sensor |
| Material | PPS (Polyphenylsulfone) |
| Pipe Diameter | DN50 (2 Inch) |
| Interface | Analog (0-5V) Pulse Output |
| Power Supply | 8-30V DC |
| Current Consumption | <10mA |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 10% to 90% RH |
