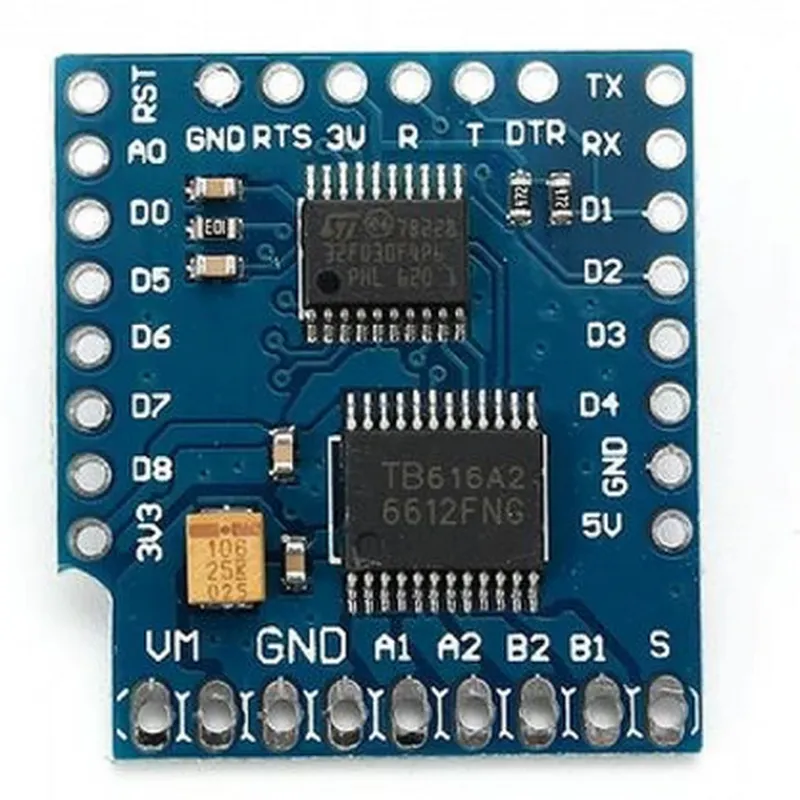

Description: 1. Wemos D1 Mini I2C Dual Motor Driver Shield is an add-on module designed for Arduino boards like the Wemos D1 Mini, enabling control of two DC motors using I2C communication protocol. 2. Features two independently controlled motor driver channels that support motors with a maximum voltage of 12V and a current up to 3A each. 3. Utilizes Texas Instruments L298N dual full bridge motor driver chips, which offer high-performance, versatile drive solutions for controlling DC motors and other loads. 4. Supports bidirectional rotation of both motors, providing flexibility for various applications such as robotics, automated systems, and model vehicles. 5. Features a built-in flyback diode to protect the motor driver chip from voltage spikes generated during motor operation. 6. Includes a level shifter circuit to ensure compatibility with 3.3V Arduino boards while allowing use of standard NPN transistor switches for enabling and disabling the motors. 7. Offers easy setup through I2C co
| Specification | Details |
|---|---|
| Chipset | L298N Dual Full-Bridge Motor Driver |
| Interface | I2C (TWI) |
| Motor Type Support | DC Stepper |
| Voltage Range | 6V to 12V |
| Current Limit | Adjustable (1.5A per motor) |
| Power Consumption | Approximately 4W |
| Operating Frequency | Up to 20MHz (dependent on D1 Mini) |
| Dimension | 50mm x 40mm x 1.7mm |
| Weight | Approximately 15g |
| Compatibility | Wemos D1 Mini Arduino Boards |
1. The 40 Amp ESC (Electronic...
1. Overview: The A4988 Steppe...
1. TIP127 is a Darlington tra...
1. Stepper Motor Driver Expan...

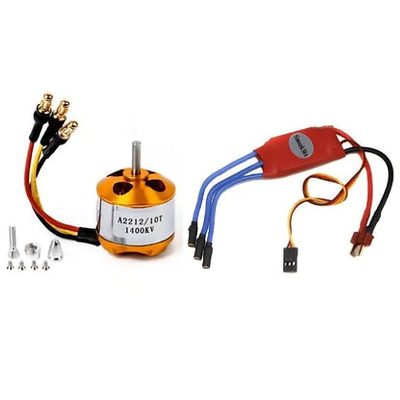

1. Motor: A2212 is a high-per...
