Owon P4305 30V 5A Programmable DC Power Supply

Stufin

Owon P4305 30V 5A Programmable DC Power Supply

This product is not available in your location yet

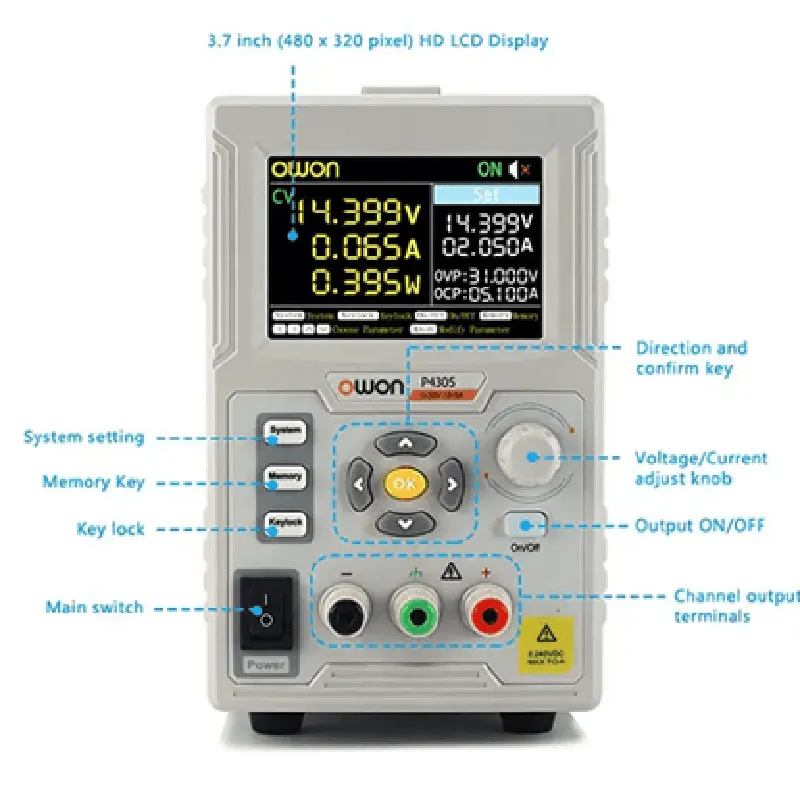

Description: 1. Owon P4305 is a versatile 30V, 5A programmable DC power supply designed for various applications in laboratories, educational institutions, and electronics hobbyists. 2. Output Range: It offers an adjustable output voltage ranging from 1V to 30V DC with a constant current of up to 5A, catering to diverse equipment requirements. 3. Programmability: The P4305 comes with a built-in digital display and keypad interface, enabling users to program and store up to ten custom voltage/current combinations for ease of use and repeatability. 4. Protection Features: It includes overvoltage protection (OVP), short circuit protection (SCP), overload protection (OLP), and reverse polarity protection (RPP) to safeguard connected devices from damage. 5. Connectivity: Featuring a large mains-operated power supply with a detachable 6.3mm barrel connector, it provides flexibility for both benchtop and portable usage. 6. Ease of Use: The intuitive keypad interface and clear LCD display make it sim

View Technical Documentation

Specification	Details
Output Voltage	0-30V (programmable)
Output Current	0-5A (programmable)
Voltage Accuracy	±(0.05%+3mV)
Current Accuracy	±(0.2%+1mA)
Resolution	10mV/100μA
Noise	≤20μVrms (50Ω output load)
Output Type	Constant Voltage (CV) Constant Current (CC) Adjustable
Overload Protection	Over-temperature protection Over-load protection Short-circuit protection
Dimensions	150 x 90 x 120mm
Weight	2.5kg
Operating Temperature	-20°C to +40°C
Power Consumption	≤30VA
Certifications	CE FCC RoHS
