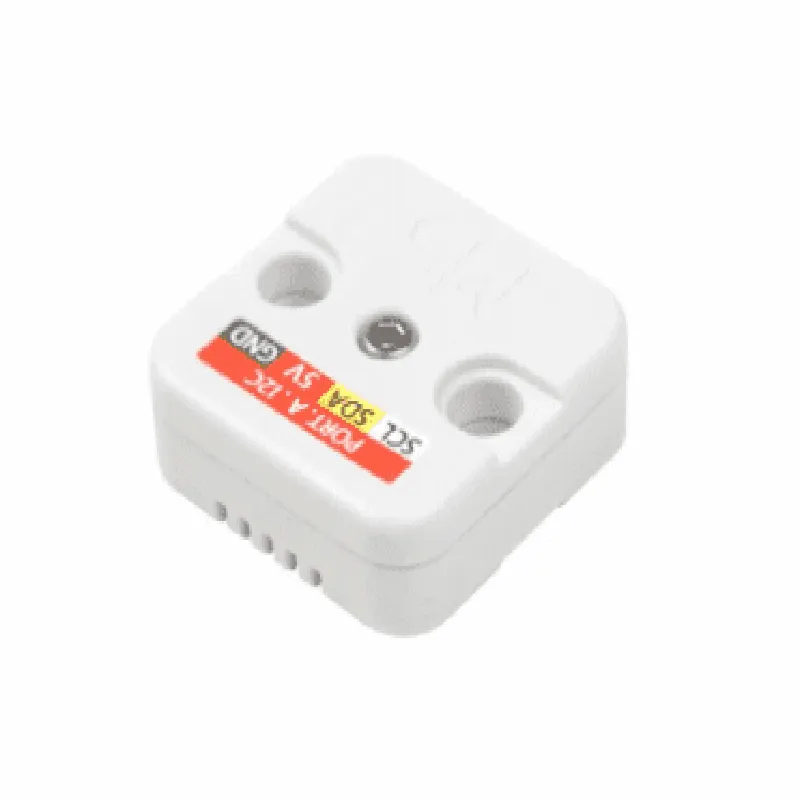

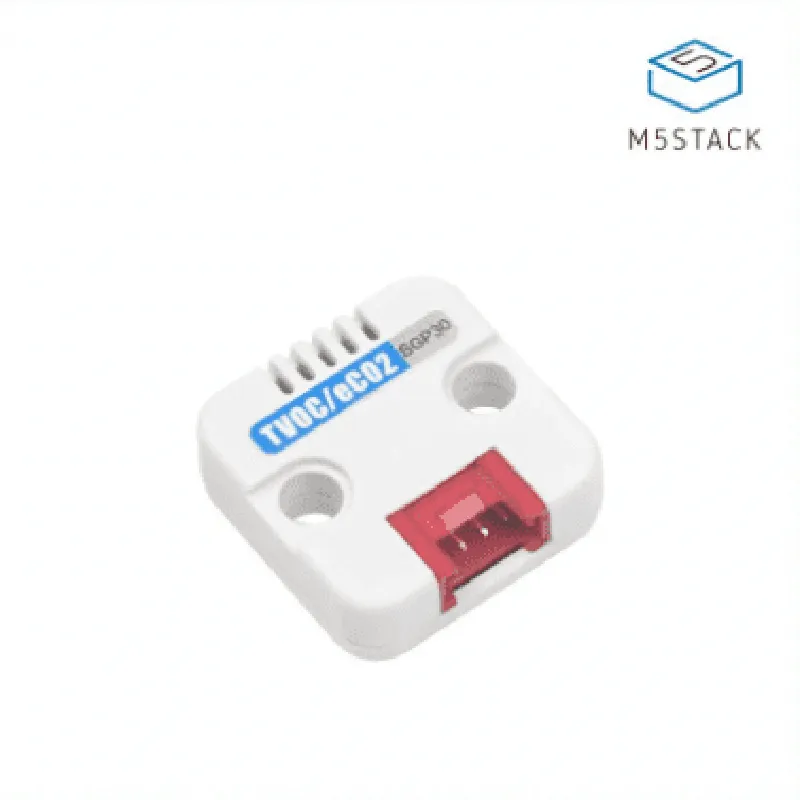

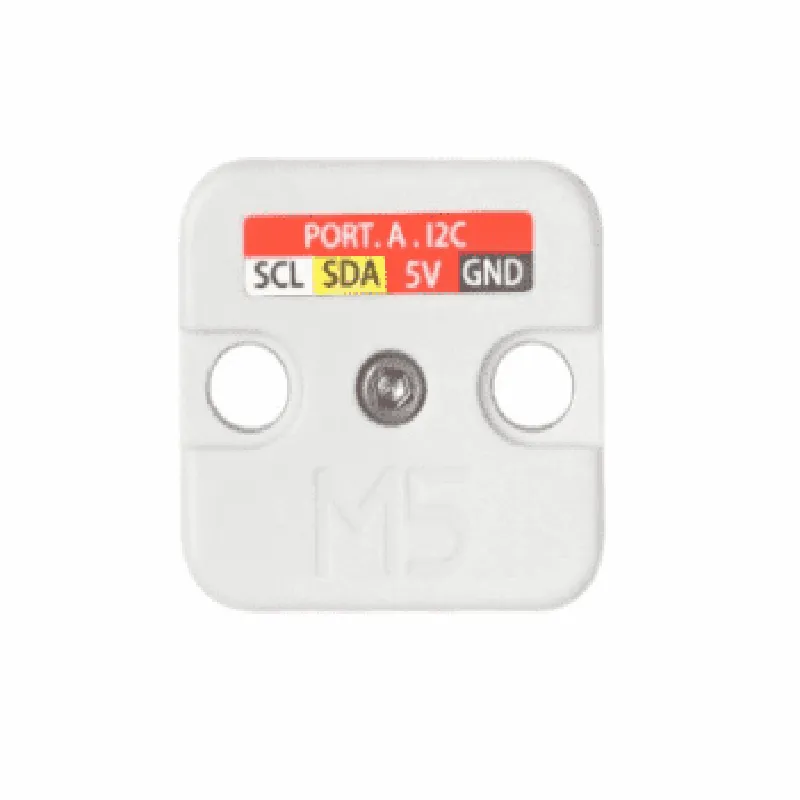

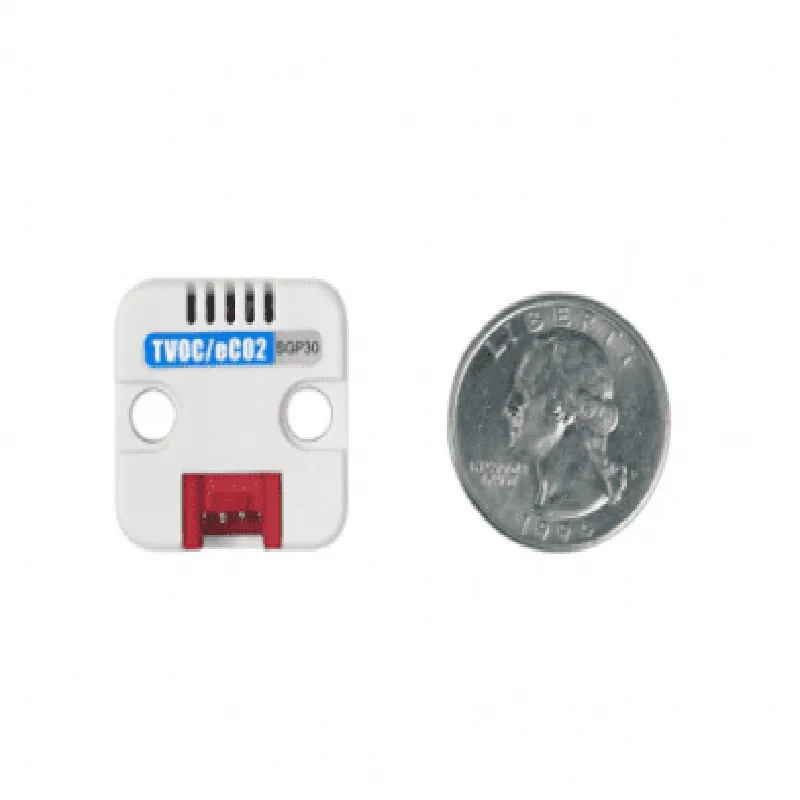

M5Stack TVOC/eCO2 Gas Unit (SGP30)

Stufin

M5Stack TVOC/eCO2 Gas Unit (SGP30)

This product is not available in your location yet

Description: 1. Sensor Overview: M5Stack TVOC/eCO2 Gas Sensor (SGP30) is a compact gas sensor solution that measures Total Volatile Organic Compounds (TVOCs) and Carbon Dioxide (eCO2) levels in parts per million (ppm). 2. I2C Interface: The SGP30 sensor utilizes an I2C interface for communication with a microcontroller, enabling easy integration into various IoT projects. 3. Heating Element: An integrated heating element ensures accurate gas readings by maintaining the optimal temperature for sensing gases. 4. Low Power Consumption: The SGP30 consumes minimal power, making it an ideal choice for battery-powered IoT devices and long-term monitoring applications. 5. Built-in Temperature & Humidity Sensor: This integrated sensor allows users to monitor temperature (°C) and relative humidity (%RH), providing additional environmental context to gas readings. 6. Gas Detection Thresholds: The TVOC sensor can detect volatile organic compounds with a sensitivity range of 0-20,000 ppm. eCO2 detection r

View Technical Documentation

Specification	Details
Model Number	SGP30
Type	TVOC and eCO2 Gas Sensor
Dimensions	22 x 22 x 9 mm
Weight	12 grams
Operating Voltage	1.8-3.6V
Current Consumption	0.7 mA
Humidity Range	20-80% (non-condensing)
Temperature Range	-10 to 60°C
TVOC Measurement	300-60000 ppb
eCO2 Measurement	400-160000 ppm
Accuracy	±5-15% (depending on pollutant)
Response Time	<1 second
Communication	I²C interface
Operating System	M5Stack's proprietary OS
Software Support	Arduino and MicroPython supported
