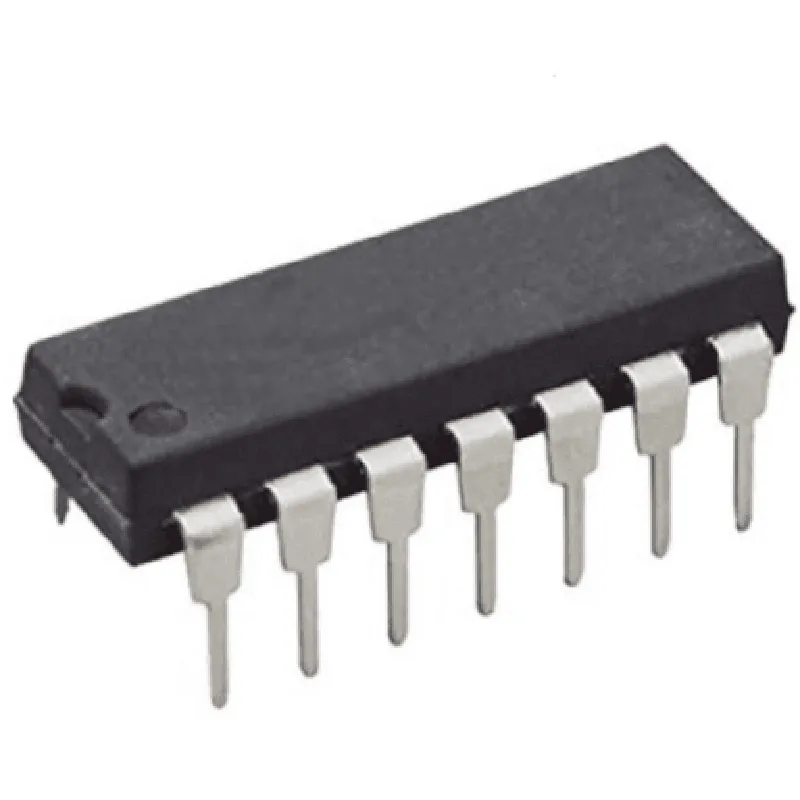

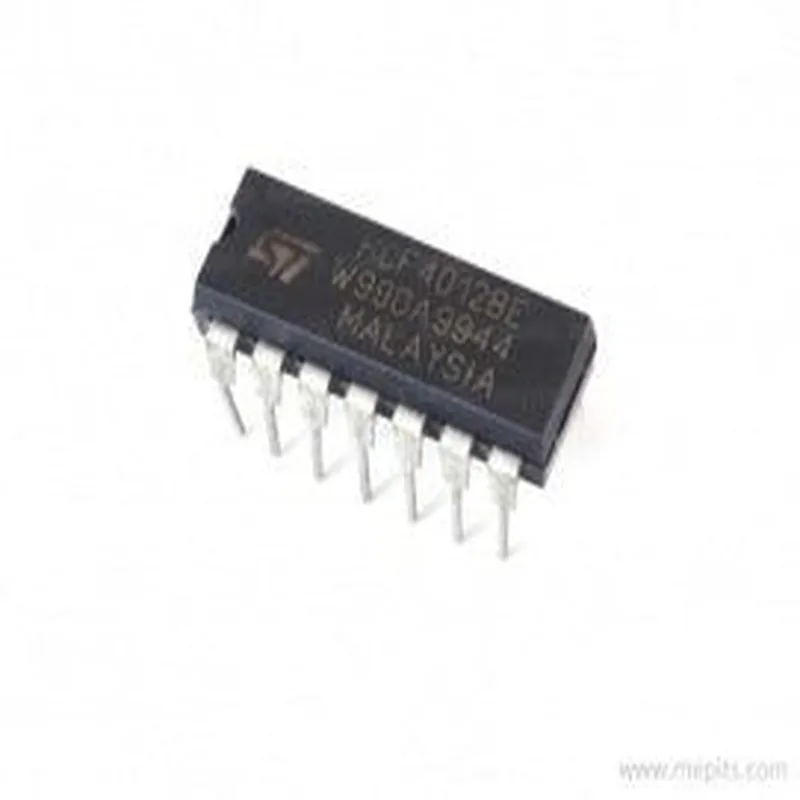

Dual 4 Input NAND Gate IC - CD4012

This product is not available in your location yet

Description: 1. Description and Function: The CD4012 is a dual 4-input NAND gate integrated circuit (IC). It performs logical AND operations on four input signals, producing two output signals. 2. Versatility and Flexibility: This IC is commonly used in digital logic design, digital circuits, and electronic projects due to its versatility and flexibility in handling multiple inputs. 3. Logic Gates: Each of the two NAND gates in CD4012 can accept up to four input signals, making it suitable for various applications that require multiple AND operations. 4. Power Consumption: This IC has a low power consumption of approximately 2mW per gate at 5V supply voltage and standard logic family load conditions. 5. Easy-to-Use: CD4012 is an easy-to-use, cost-effective solution for building complex digital circuits with multiple AND functions. It is available in various packages, including DIP (Dual In-line Package), SMD (Surface Mount Device), and others. 6. Logic Diagram Symbol: The symbol for this IC c

View Technical Documentation

Specification	Details
Type	Digital Logic IC TTL (Transistor-Transistor Logic)
Function	Dual 4-input NAND gate
Number of Inputs	8 (4 inputs per gate)
Output Type	Open collector CMOS-compatible
Operating Voltage	3V to 15V TTL voltage range
Max Frequency	33 MHz (typical) up to 50 MHz (max)
Propagation Delay	20 ns (typical) up to 30 ns (max)
Power Dissipation	10 mW (typical) up to 15 mW (max)
Package Type	14-pin DIP (Dual In-Line Package)
Temperature Range	-55°C to 125°C
Storage Temperature	-65°C to 150°C
