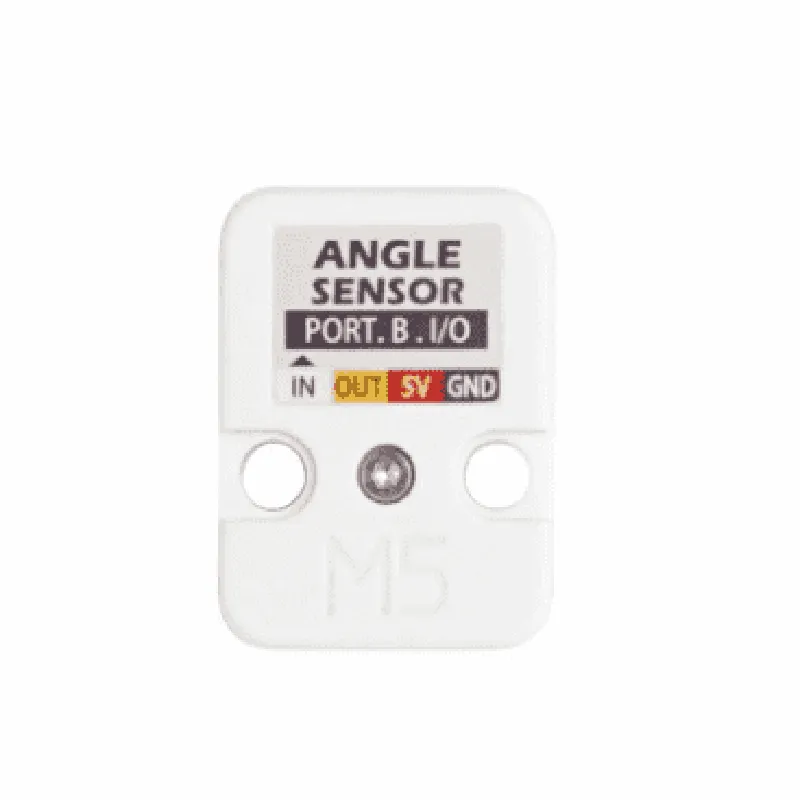

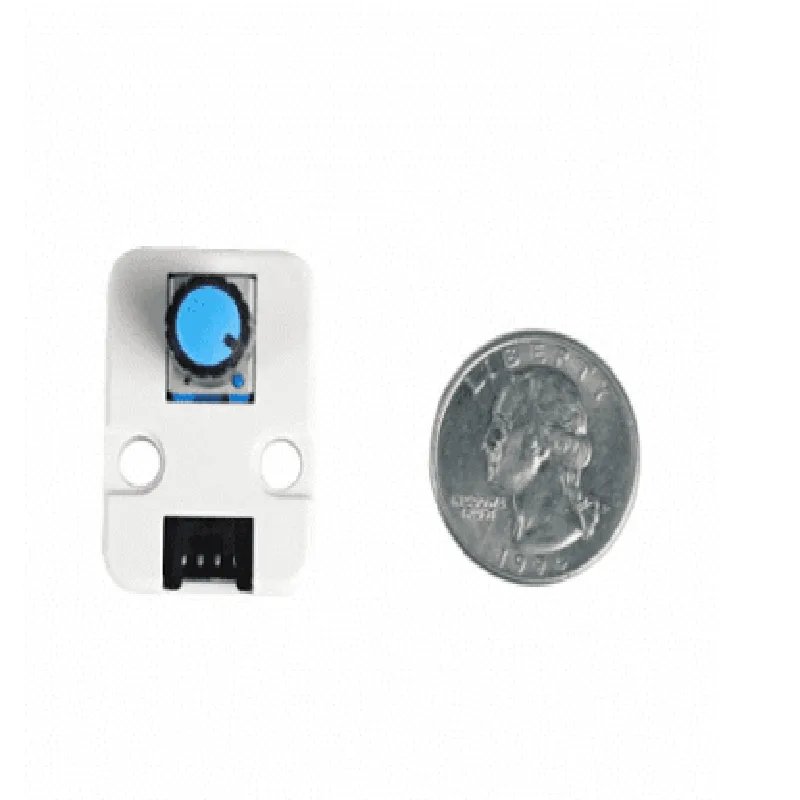

Description: 1. M5 Stack Mini Angle Unit: This is a compact IoT component from M5Stack, which includes an angle sensor and a potentiometer in one module. 2. Angle Sensor: The angle sensor in this module detects the angle change of a mechanical joint or rotation axis and converts it into an electrical signal for further processing. 3. Potentiometer: A built-in analog potentiometer allows users to control the value of voltage, current, or power. It can be used as a variable resistor, giving users precise input control over various IoT projects. 4. Compatibility: This M5Stack Mini Angle Unit is compatible with other M5Stack products and Arduino boards using the UART communication protocol, making it easy to integrate into existing or new projects. 5. Versatile Applications: Suitable for various IoT applications such as angle measurement in robots, motor control systems, angle-based security systems, or even hobbyist projects like building a self-balancing robot. 6. Easy Setup: Users can set up t
| Specification | Details |
|---|---|
| Model Number | M5STACK-ANGLE-POT |
| Description | Miniature angle unit with potentiometer |
| Sensor Type | 10-Bit Analog Potentiometer (0-1023) |
| Angle Range | ±180° |
| Resolution | 1.8° per step |
| Accuracy | ±5% |
| Operating Voltage | 3.3V - 5.5V |
| Current Consumption | ~10mA (avg) |
| Dimensions | 19mm x 11mm x 4mm (LxWxH) |
| Weight | 2g |
| Interface | Analog I/O (0-3.3V) |
