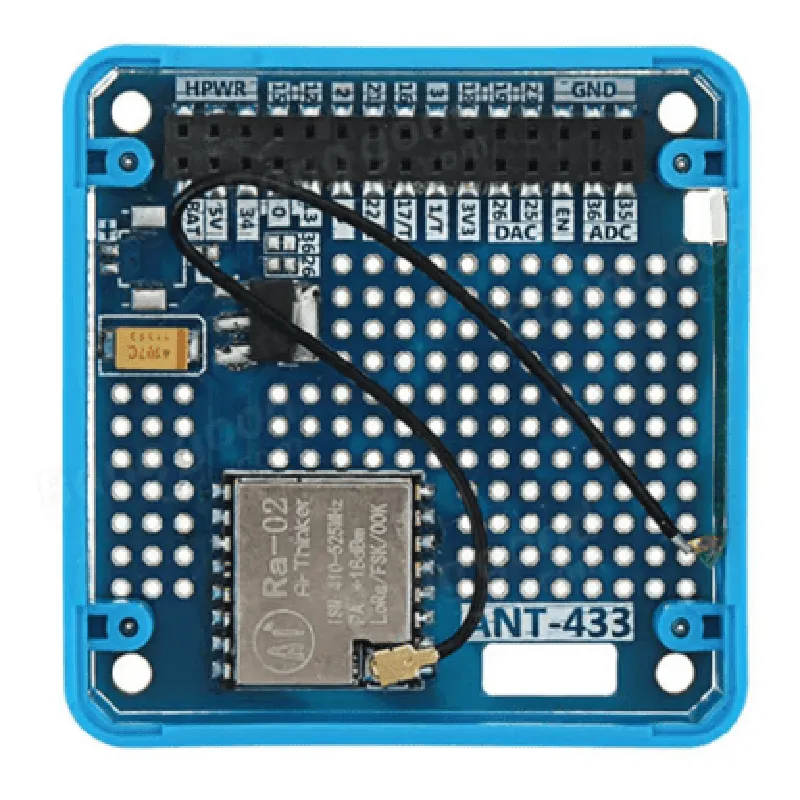

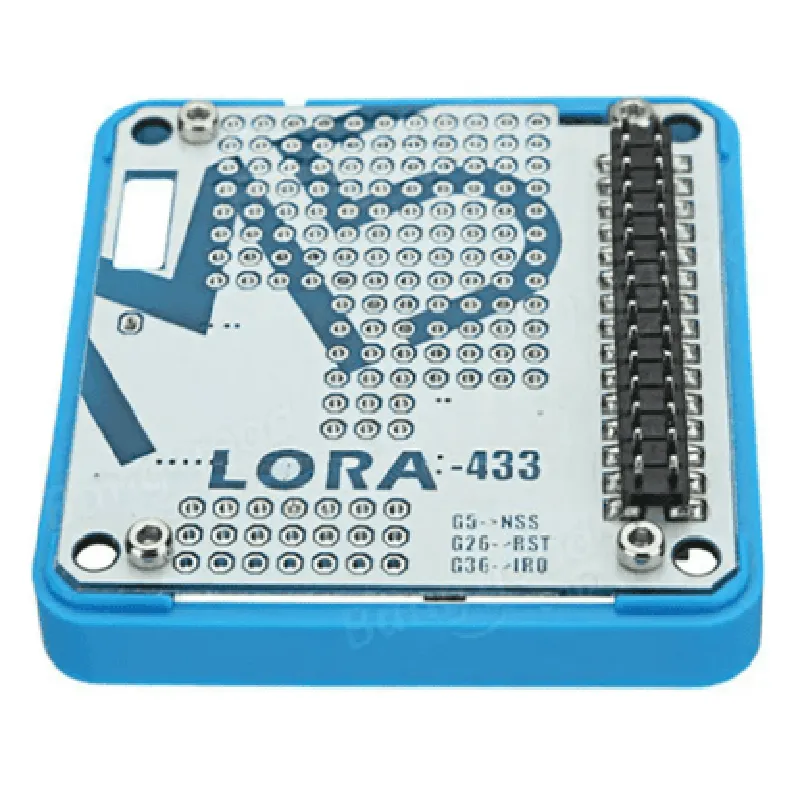

M5 Stack LoRa Module for ESP32 DIY Development Kit (433MHz)

Stufin

M5 Stack LoRa Module for ESP32 DIY Development Kit (433MHz)

This product is not available in your location yet

Description: 1. The M5Stack LoRa Module is an add-on component for the ESP32 DIY Development Kit by M5Stack. It extends the capabilities of the development kit, enabling long-range, low-power wireless communication using the LoRa protocol (433MHz frequency). 2. Key features include: miniaturized form factor, easy integration with the ESP32, built-in LoRa antenna, and an onboard reset button for factory resets. 3. This module supports both LoRa and LoRaWAN communication modes, making it suitable for various IoT projects that require long-range connectivity. 4. It can be used to build wireless sensor networks, smart agriculture applications, remote control systems, or any other project where long-range communication is essential. 5. The module provides an SPI and SCK interface with a serial Tx/Rx pin for easy integration with the ESP32. No additional components are required, making it a plug-and-play solution. 6. Users can program LoRa features using Arduino IDE, ensuring compatibility with a p

View Technical Documentation

Specification	Details
Module Type	LoRaWAN module
Frequency	433MHz
Operating Frequency Range	410-480 MHz
Modulation	GFSK (Gaussian Filtered Shift Keying)
Data Rate	0.3 - 27.8 kbps
Sensitivity	-148 dBm
Maximum Tx Power	+20 dBm
SPI Interface	4-pin SPI (MISO MOSI SCLK CS)
ADC Resolution	10-bit ADC
Temperature Range	-40 to 85°C
Humidity Range	20% to 80% RH
Operating Voltage	3.3V (with voltage regulator)
Dimensions	18 x 24mm
Weight	12g
Compatibility	ESP32 module for Arduino IDE
