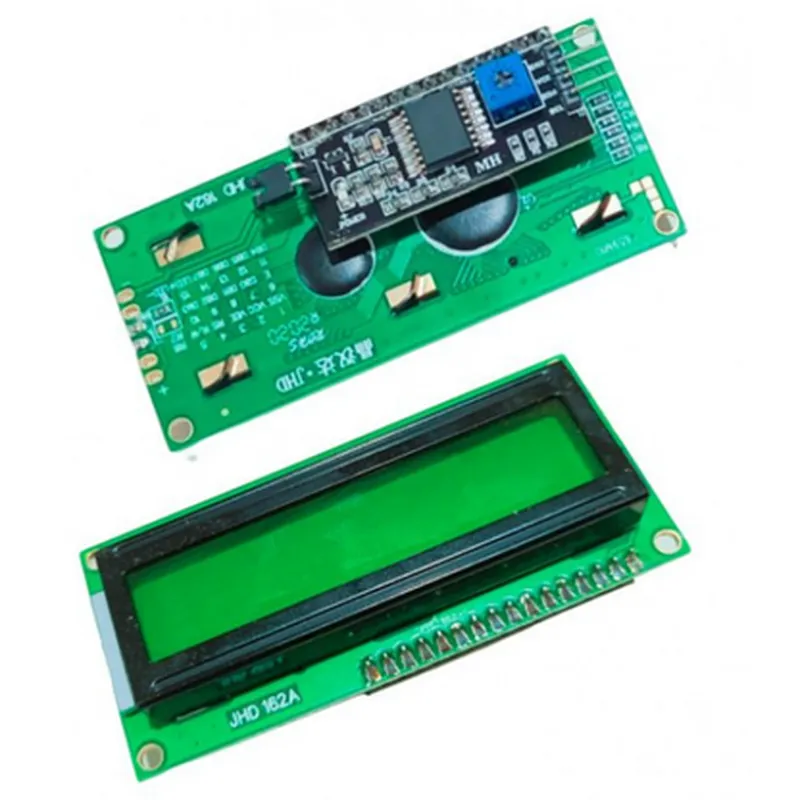

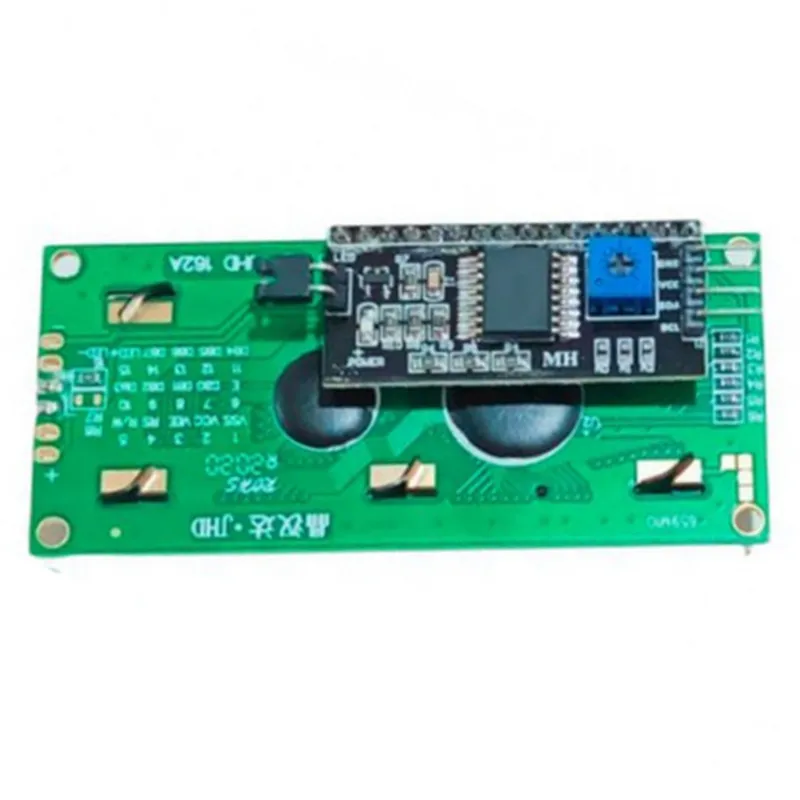

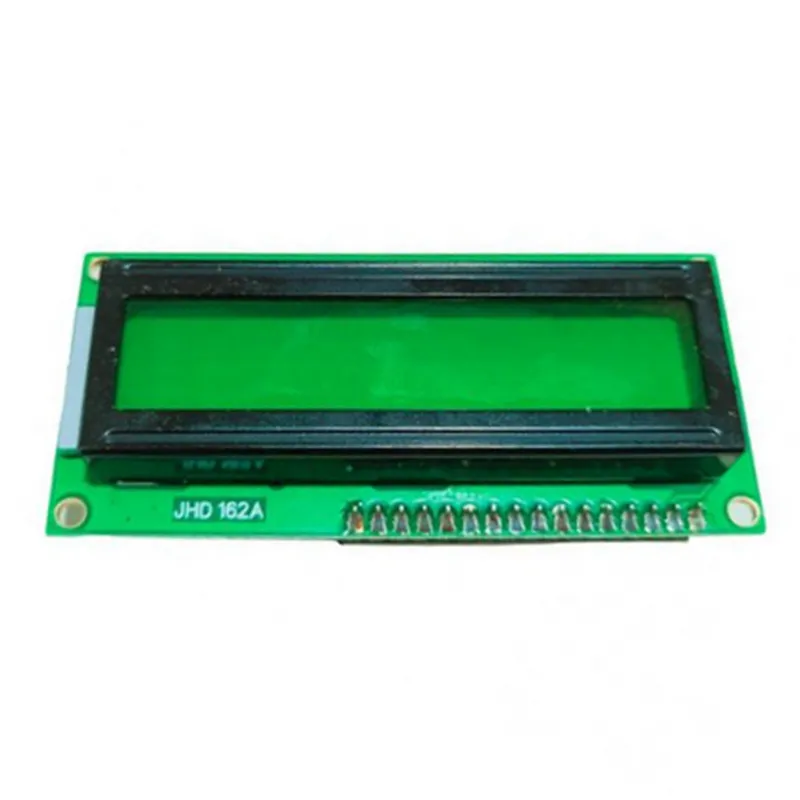

16x2 Green LCD with Soldered I2C/IIC Interface

Stufin

$16x2 Green LCD with Soldered I2C/IIC Interface$

16x2 Green LCD with Soldered I2C/IIC Interface

This product is not available in your location yet

Description: 1. This is a 16x2 character Green LCD module with a soldered I2C/IIC interface for easy connection to microcontrollers or computers without the need for additional adaptors. 2. Size and Display: Measuring approximately 6cm x 13cm, it features a bright green 16x2 character LCD display that can show two lines of 16 characters each. 3. I2C Interface: The LCD comes with a pre-soldered I2C/IIC interface, which includes the SDA and SCL pins needed to establish communication between the LCD and the control device (like Arduino or Raspberry Pi). 4. Power Requirements: It operates on a 5V power supply with an optional backlight voltage that can be set to either 3.3V or 5V. The display consumes around 80mA when the backlight is active and 16mA in standby mode. 5. Easy-to-Use: The LCD comes with a pre-written library for popular microcontrollers such as Arduino, making it simple to write and run code to control the display without extensive setup or configuration. 6. Versatile Applications:

View Technical Documentation

Specification	Details
Display Type	16-character x 2-line LCD (Liquid Crystal Display)
Display Color	Green
Character Size	5x8 dots
Backlight	None (not applicable for this display type)
Interface	I2C/IIC (soldered on PCB)
Operating Voltage	3.3V - 5.0V
Operating Current	20mA
Dimension	approximately 35mm x 40mm x 10mm
Weight	approximately 25 grams
Resolution	16x2 (32 characters in total)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Humidity	up to 80% relative humidity
