STMicroelectronics NUCLEO-WL55JC1

This product is not available in your location yet

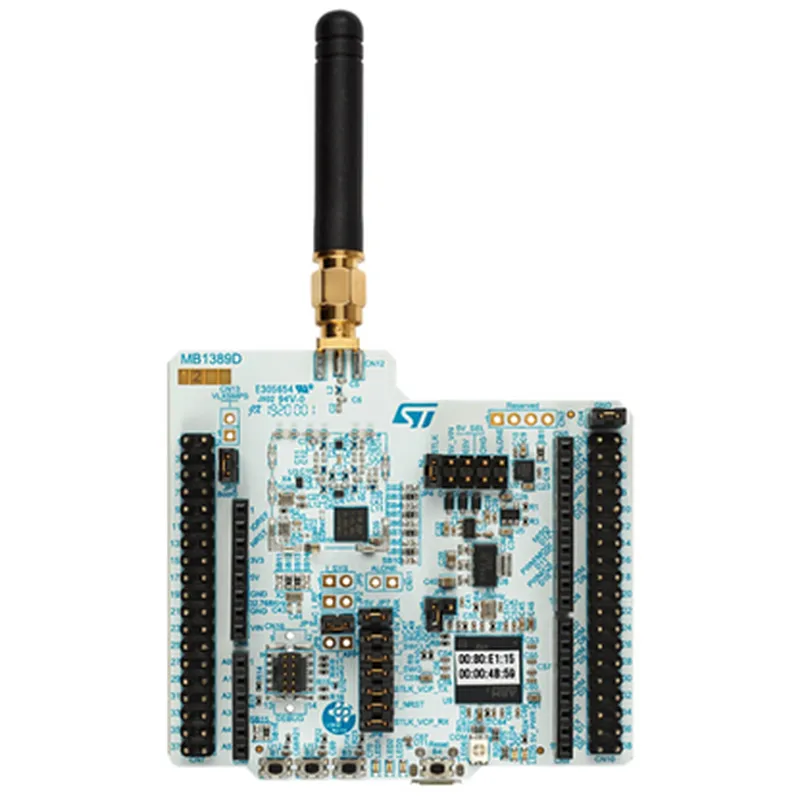

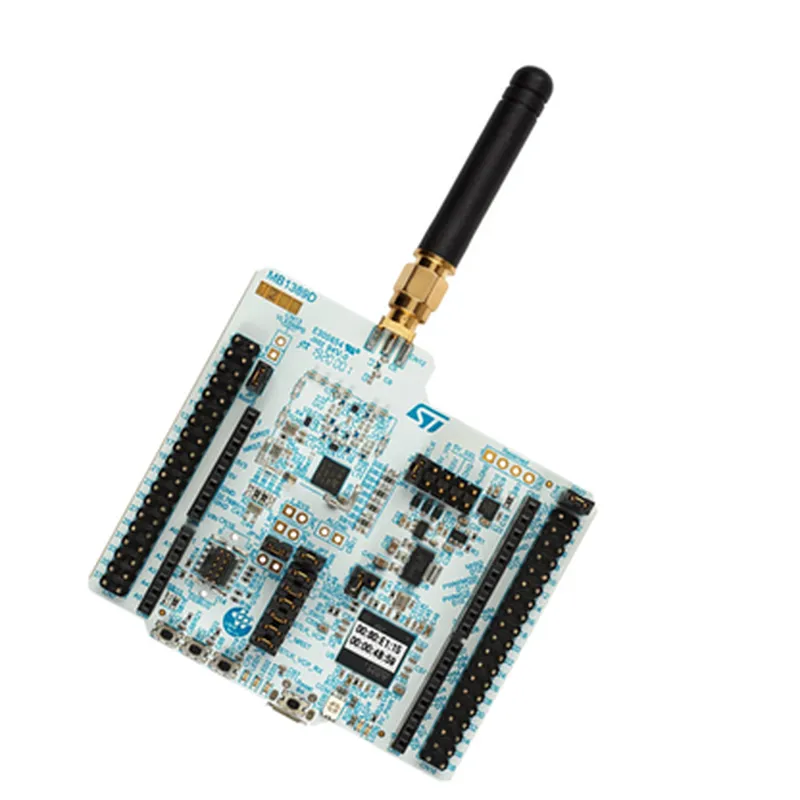

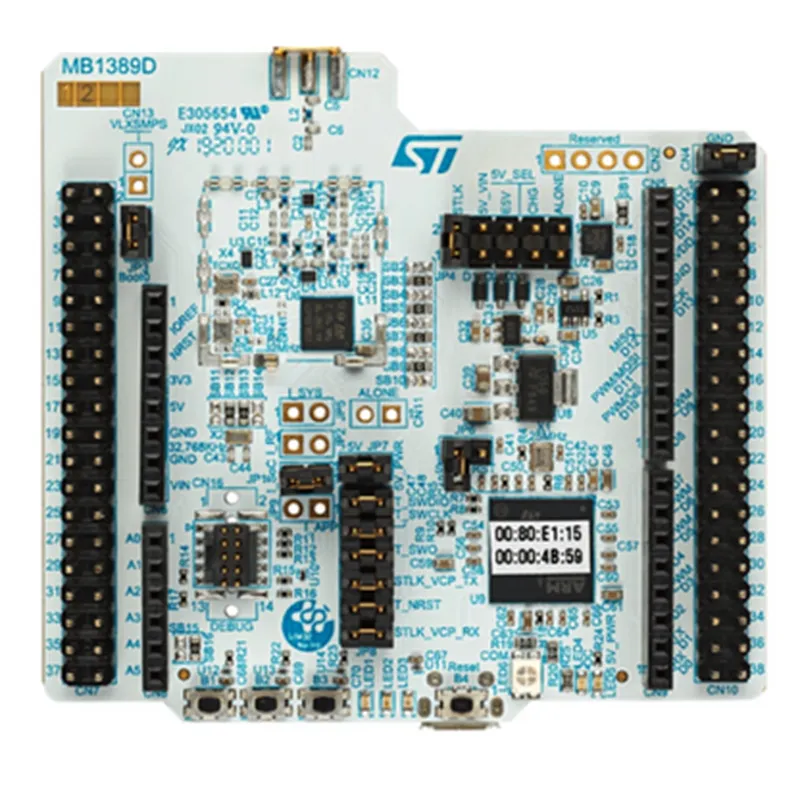

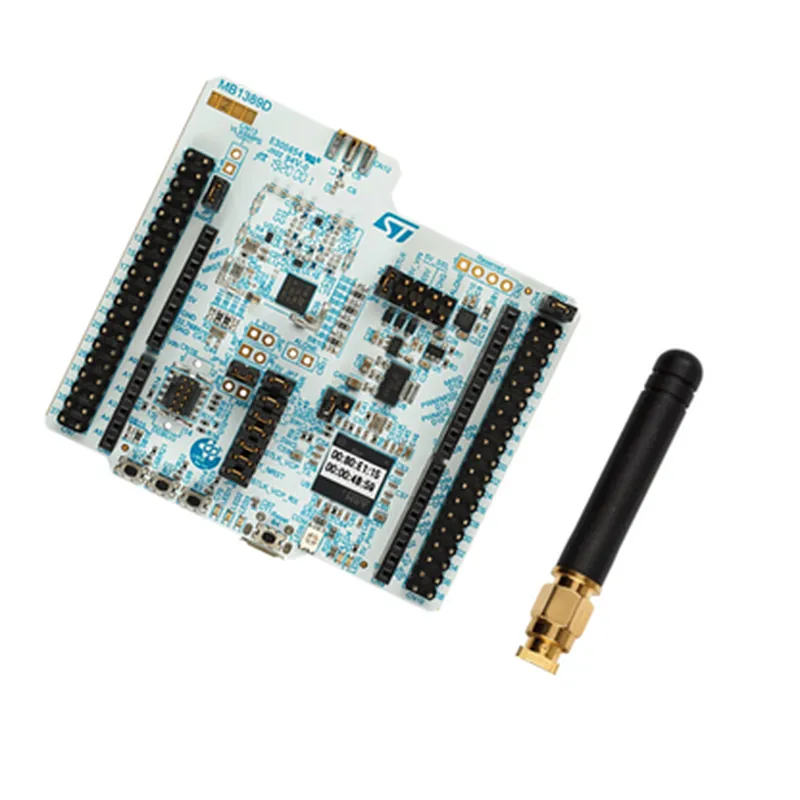

Description: 1. Microcontroller: The STMicroelectronics NUCLEO-WL55JC1 is a development board based on the STM32WLE5J0A6 microcontroller, featuring a dual-core Arm Cortex-M4F CPU and a dual-core Arm Cortex-M0+ CPU. 2. Wi-Fi Connectivity: It integrates Wi-Fi connectivity through the STWLAN_CC320C1 module, enabling users to create IoT projects with wireless communication capabilities. 3. Bluetooth V4.2: The board also supports Bluetooth Low Energy (BLE) communication via the STSW-DISCOVERYBLE1 module, offering a range of up to 50 meters in line-of-sight conditions. 4. Arduino Uno R3 Shield: NUCLEO-WL55JC1 is compatible with the Arduino Uno R3 shield ecosystem, allowing users to leverage existing Arduino libraries and community support for their projects. 5. USB Connectivity: The board comes with a USB 2.0 FullSpeed interface which can be used for programming the MCU or emulating a keyboard/mouse HID device. 6. Power Management: Featuring advanced power management capabilities, this board can ru

View Technical Documentation

Specification	Details
Microcontroller	STM32WL55JC Arm Cortex-M0+
Communication	Bluetooth 5.0 (LE) with HCI Interface
Power Management	Internal RC Oscillator
Operating System	Supported by FreeRTOS STM32Cube
Dimensions	20 mm x 45.5 mm
Weight	Approximately 4 grams
Supply Voltage	3 V (± 2%)
Temperature Range	-40 °C to +85 °C
Certification	CE FCC IC ROHS
