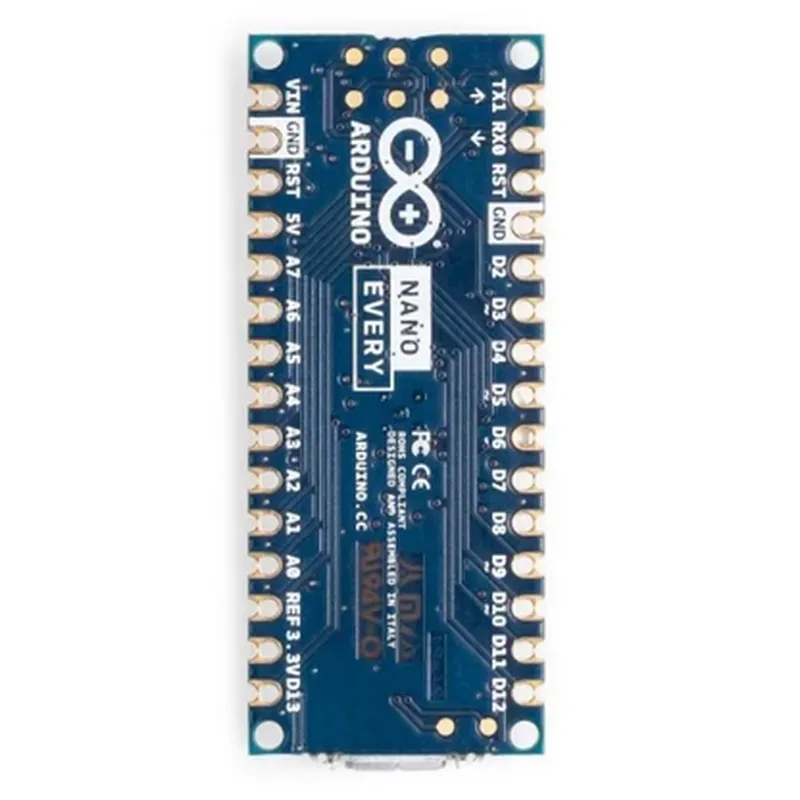

Description: 1. Microcontroller: The Original Arduino Nano Every is a versatile open-source microcontroller board based on the ATmega328P chip, providing 14 digital input/output pins, 6 analog inputs, and 1 USB connection. 2. Miniature Size: With a dimension of 45mm x 19mm, this Arduino version is smaller than its counterparts, making it ideal for projects with limited space, such as wearables or compact robotics. 3. USB Programming and Power: The Nano Every features a built-in USB connection, allowing you to program the board directly using an external computer without needing an additional power source. It also supports in-circuit serial programming (ICSP) for advanced users. 4. Power Options: The Arduino Nano Every comes with an onboard regulator that allows operating it from different voltage sources, such as batteries or external power supplies, making it suitable for portable projects. 5. Pre-mounted headers: Unlike the standard Arduino Nano, which requires users to solder headers manual
| Specification | Details |
|---|---|
| Microcontroller | ATmega4809 (8-bit AVR 20 MHz) |
| Flash Memory | 96 KB (64 KB used by bootloader) |
| SRAM | 6 KB |
| EEPROM | 1 KB |
| GPIOs | 12 (5 x Analog Inputs 7 x Digital Outputs) |
| Analog Inputs | 10-bit up to 10 ADC channels |
| Digital I/O Pins | 14 (6 x PWM pins 4 x Serial pins) |
| PWM Channels | 6 |
| Clock Speed | 20 MHz |
| Operating Voltage | 2.3V - 5.5V |
| Power Consumption | 6 mA (active) 1 μA (sleep mode) |
| Dimensions | 45 mm x 18 mm x 8 mm |
| Weight | 7 grams |
