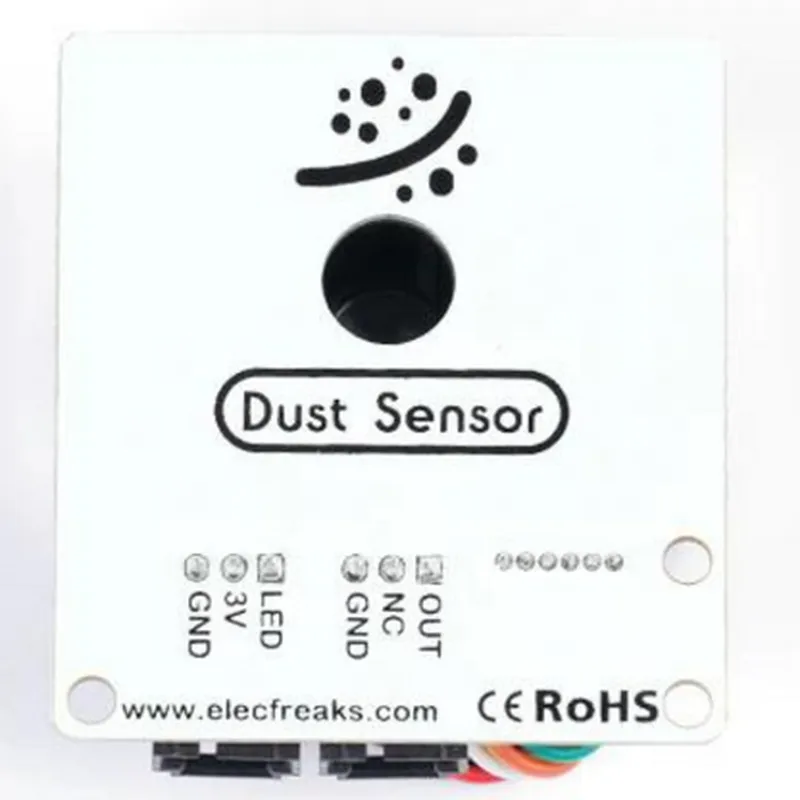

ELECFREAKS Octopus Dust Sensor (Sharp GP2Y1010AU0F)

Stufin

ELECFREAKS Octopus Dust Sensor (Sharp GP2Y1010AU0F)

This product is not available in your location yet

Description: 1. The ELECFREAKS Octopus Dust Sensor is based on the Sharp GP2Y1010AU0F sensor, which is a versatile dust sensor capable of detecting particles as small as 3 microns in size. 2. This sensor features a digital output interface, making it easy to integrate with various microcontrollers and single-board computers such as Arduino, Raspberry Pi, etc. 3. It comes with adjustable sensitivity levels (Low: 5cm, Medium: 10cm, and High: 20cm) allowing users to customize the sensor's detection threshold to specific environments. 4. The sensor can be used in various projects, including air quality monitoring systems, industrial automation, HVAC systems, and robotics applications. 5. With a wide detection range of up to 30cm, this dust sensor can effectively detect particles over a significant area. 6. It operates on a voltage range of 4.5V to 5.5V DC, making it suitable for battery-powered projects and systems that rely on standard voltages. 7. The sensor's compact size (approx. 30x28mm) ma

View Technical Documentation

Specification	Details
Measurement Range	0.5-80mg/m³ 1-100% (±10%)
Resolution	0.5mg/m³
Response Time	<1 second
Operating Voltage	3.6V-9.6V
Current Consumption	≤25μA
Analog Output	0.2-4.8V (0.5-80mg/m³)
Digital Output	1 pulse per second (PPS)
Sensor Type	Optical dust sensor using Light Scattering
Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 80°C
Humidity	10-80% RH
Size	23.5mm x 14mm x 9.2mm
