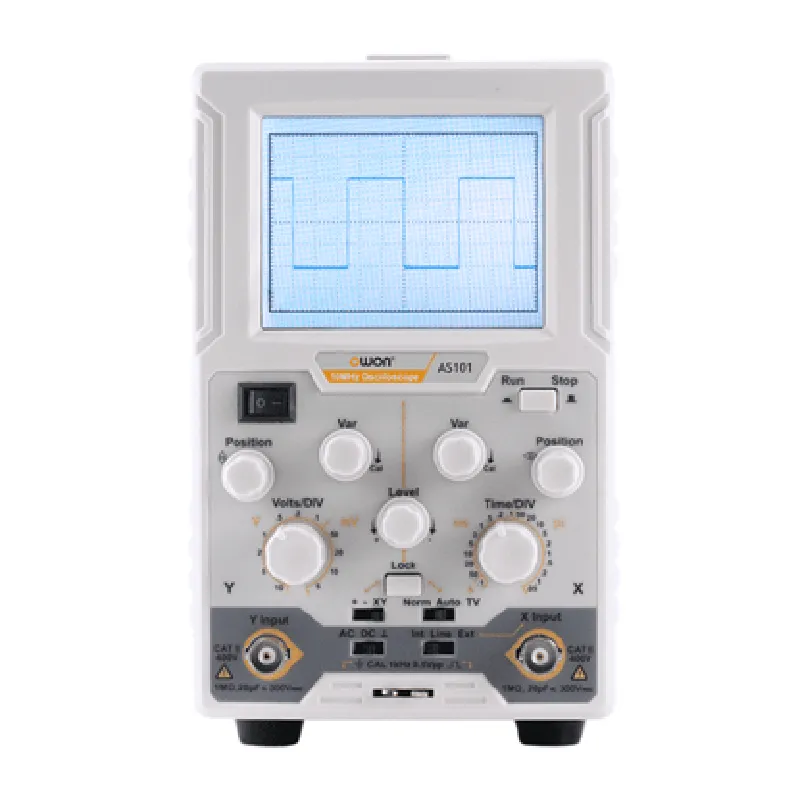

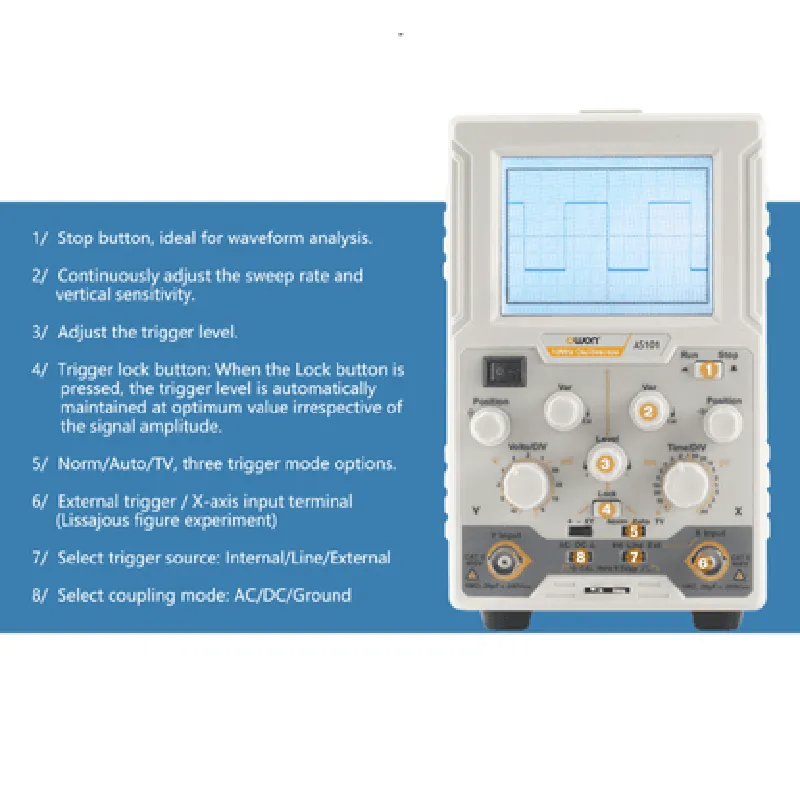

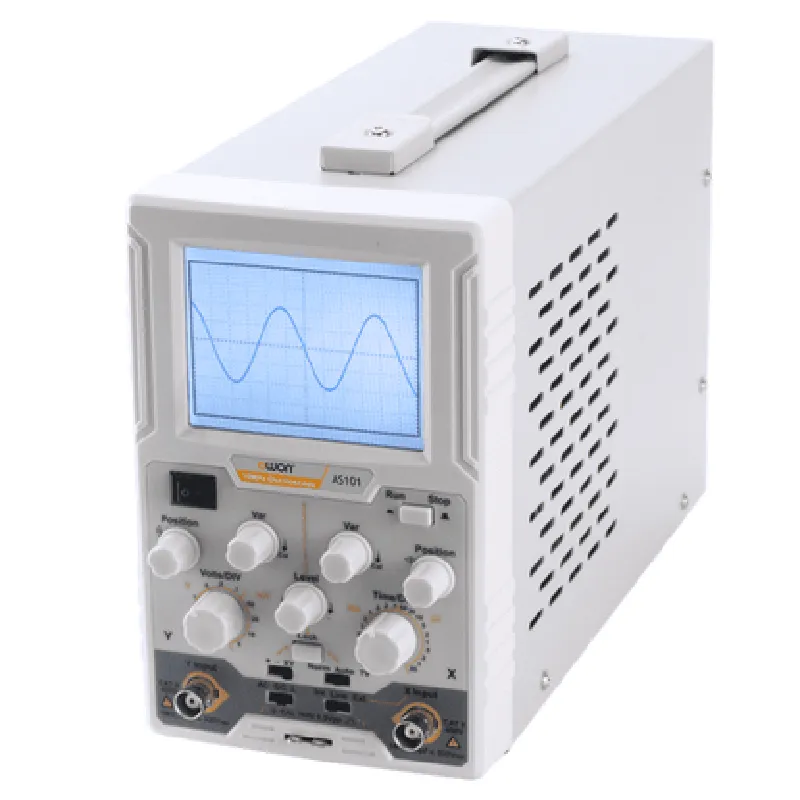

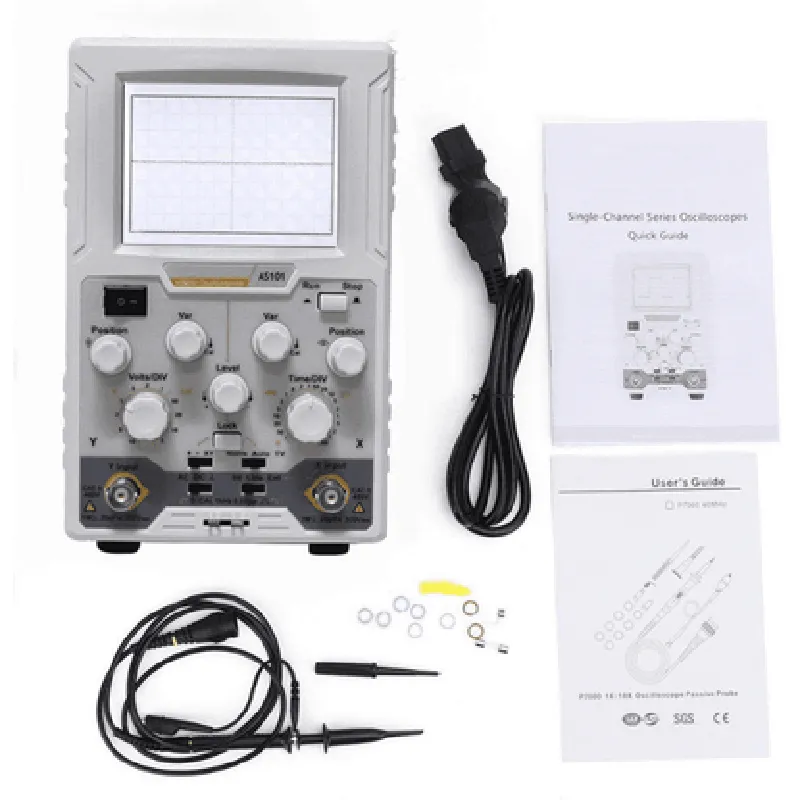

Description: 1. Overview: The OWON MTQ 1016B is a high-performance 10 MHz, 1-channel analog oscilloscope designed for various applications in research labs, education, and industrial settings. 2. Specifications: It features a bandwidth of 10 MHz, a maximum input voltage of 50V, a horizontal and vertical resolutions of 8 bits (256 levels), and can display signals from DC to 10 MHz. 3. Display: The oscilloscope boasts a large 7-inch TFT color screen with an intuitive user interface, providing excellent visibility and clarity for waveform analysis. 4. Measurement Functions: MTQ 1016B offers standard measurement functions including peak, average, min, max, and RMS values. Additionally, it supports advanced features such as frequency response analysis and time-base measurements. 5. Connectivity: The oscilloscope comes with various interface options for easy data transfer and connection to external devices, such as USB 2.0, LAN, and GPIB interfaces. 6. Triggers & Automation: MTQ 1016B features mult
| Specification | Details |
|---|---|
| Display | 10-inch LCD color display |
| Sampling Rate | Up to 100 MS/s |
| Bandwidth | 10 MHz |
| Number of Channels | 1 channel |
| Trigger Source | Auto Free Run External |
| Trigger Types | Edge Pulse Slope Video |
| Measurement Modes | Waveform display X-Y mode |
| Time Base Range | 200 ns/div to 100 ms/div |
| Voltage Range | ±25V (±50mV/div to ±10V/div) |
| Memory Depth | 32k samples |
| Interface | USB RS-232 |
| Power Supply | DC 9V Battery Type AAA x4 |
| Dimensions | 350 x 220 x 50 mm (13.8 x 8.7 x 2") |
| Weight | 1.5 kg |
1. A Desolder Pump is an inno...
Owon SDS 1102: 100 MHz Digita...
1. High-Quality Design: The S...

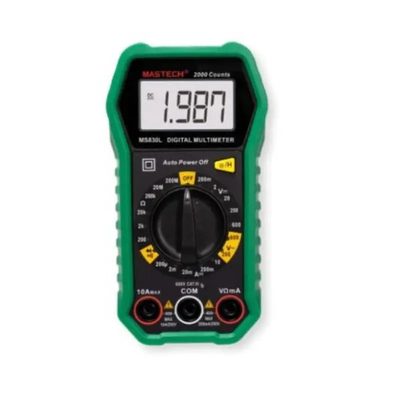

1. Feature-rich Multimeter: H...

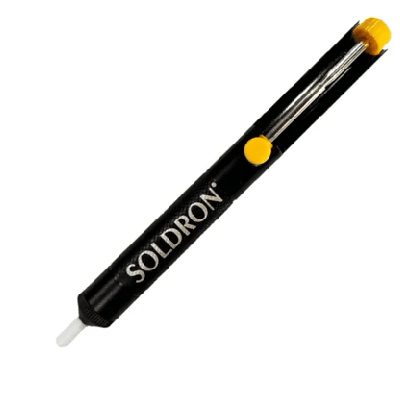

1. A desoldering pump is a ha...
