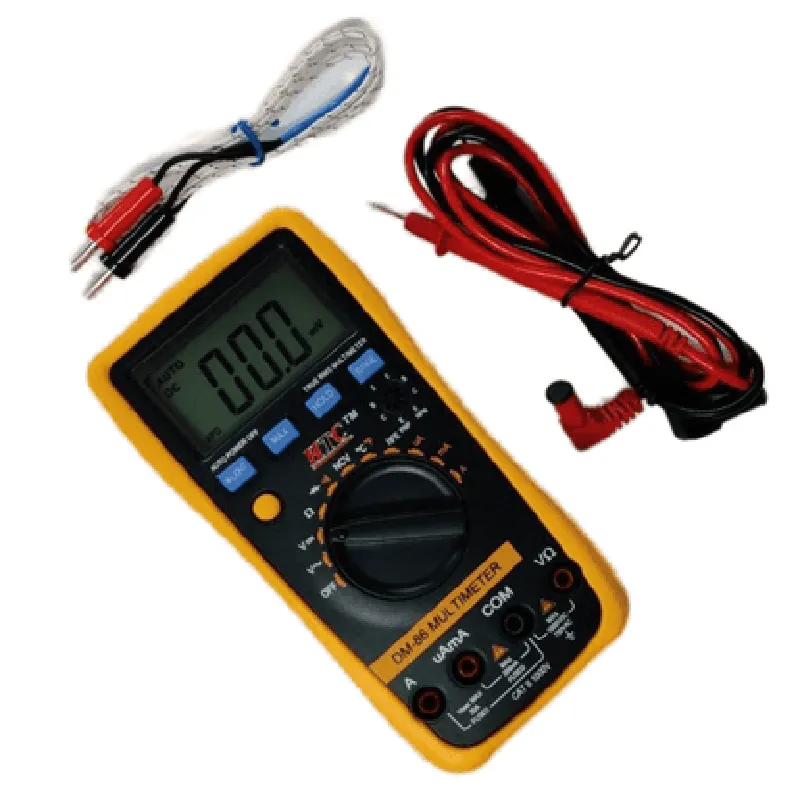

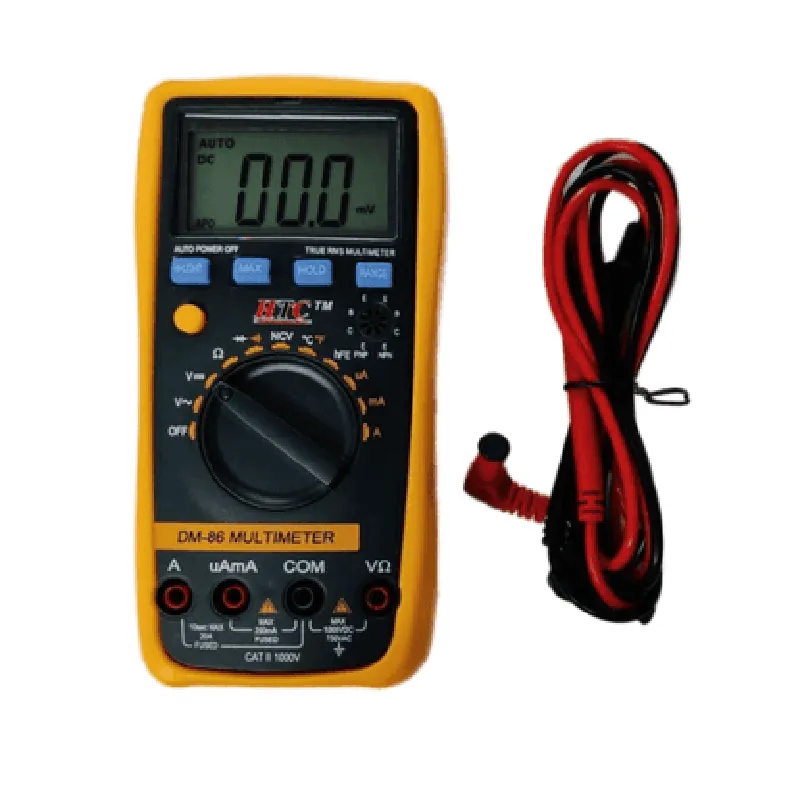

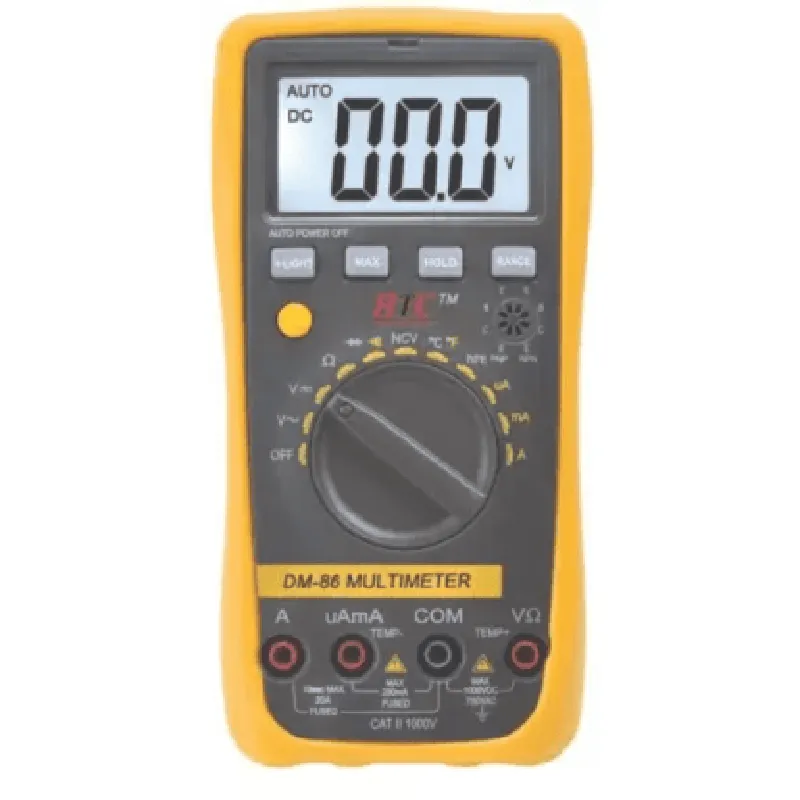

Description: 1. The HTC DM-86 Digital Multimeter is a versatile handheld testing device designed for measuring electrical current, voltage, resistance, continuity, diode, and capacitance in various electrical systems. 2. It boasts an easy-to-read LCD display with backlight, allowing accurate readings even in low light conditions, ensuring convenience during use. 3. With a measurement range up to 1000V AC/DC and 20A for current (depending on the specific model), it caters to a broad spectrum of applications, from simple home repairs to complex industrial installations. 4. The multimeter features true RMS functionality, enabling precise measurement in non-linear loads with distorted waveforms – making it ideal for measuring power in motors and other non-linear circuits. 5. The compact design and rugged build make the DM-86 suitable for various working environments, including workshops, laboratories, and outdoor applications. 6. The digital multimeter features automatic voltage selection (auto-r
| Specification | Details |
|---|---|
| Measurement Functions | DC Voltage (DCV) AC Voltage (ACV) DC Current (DCC) AC Current (ACC) |
| Resolution | 2000 counts (DCV and DCC) 1 count (ACV and ACC) |
| Accuracy | ±1% of reading (DCV and DCC) ±2% of reading (ACV and ACC) |
| Measurement Range | DC Voltage: 600 mV to 1000 V AC Voltage: 40 mV to 600 V |
| Display | LCD display with backlight |
| Power Supply | 9 V battery or external power adapter |
| Dimensions | Length: 180 mm Width: 80 mm Height: 35 mm |
| Weight | Approximately 350 grams |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
