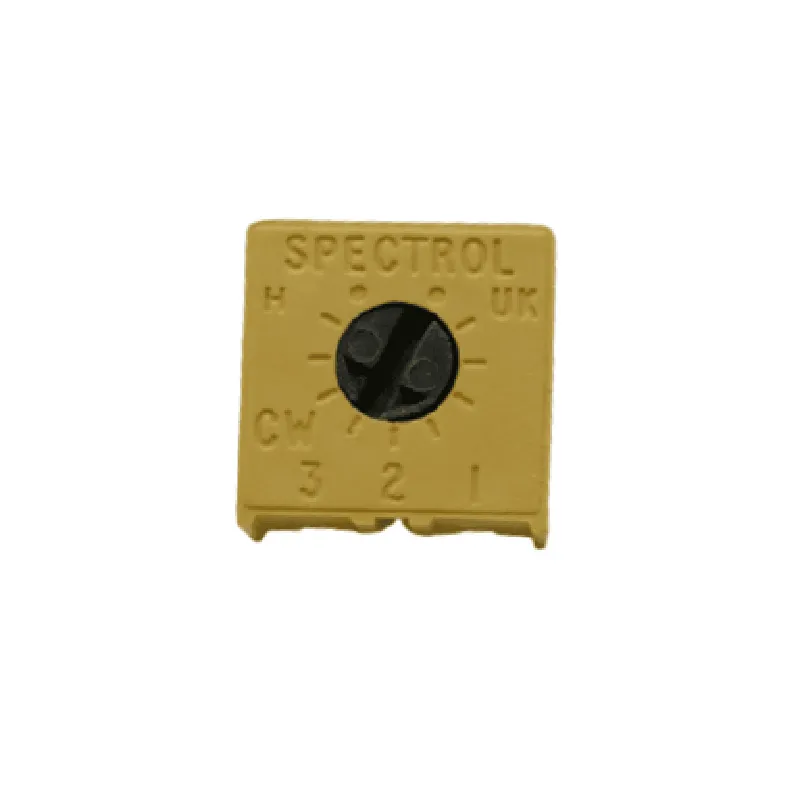

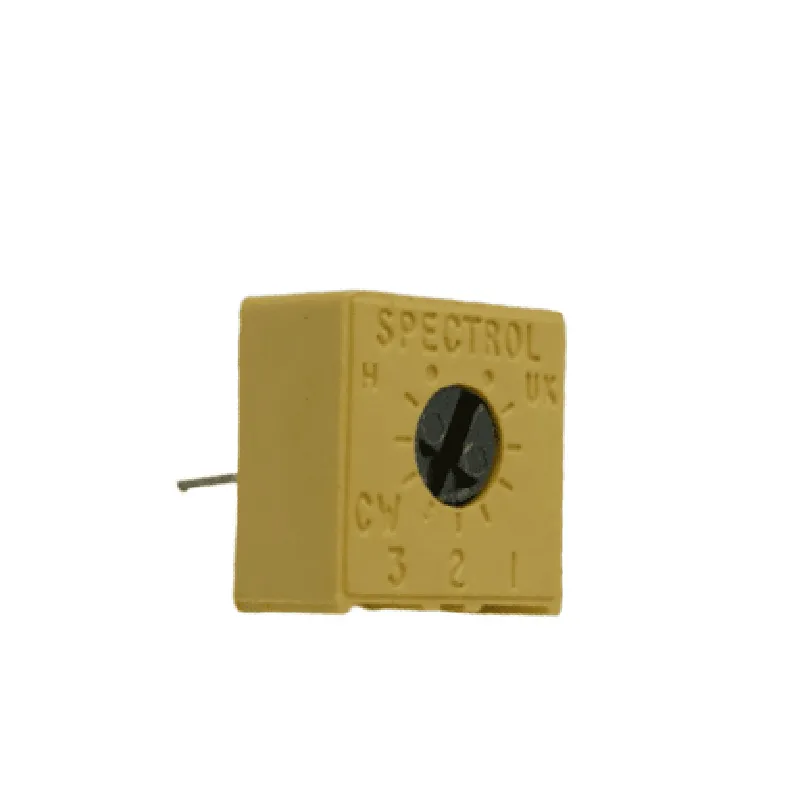

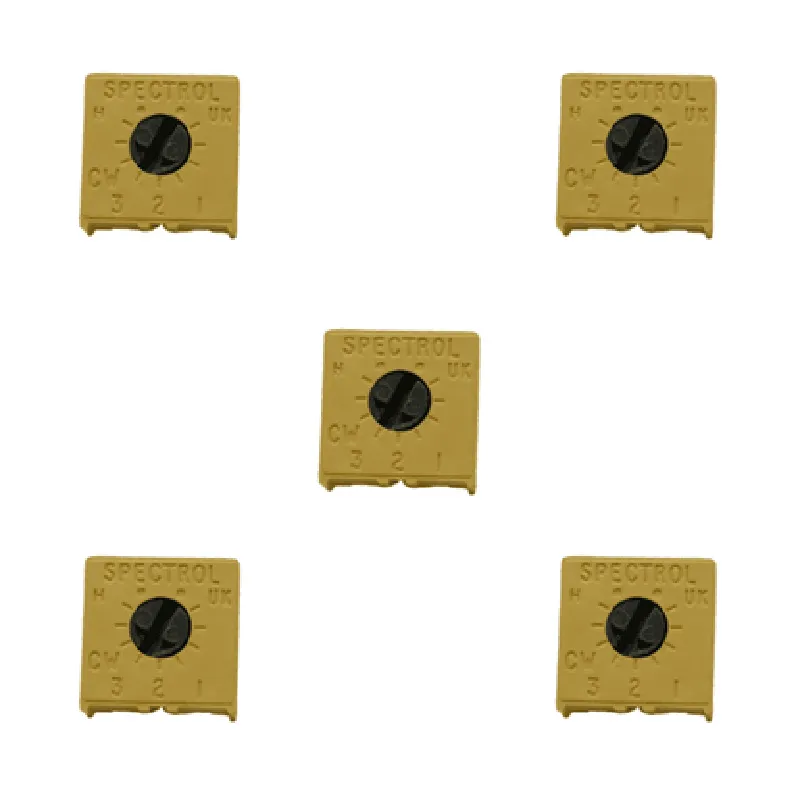

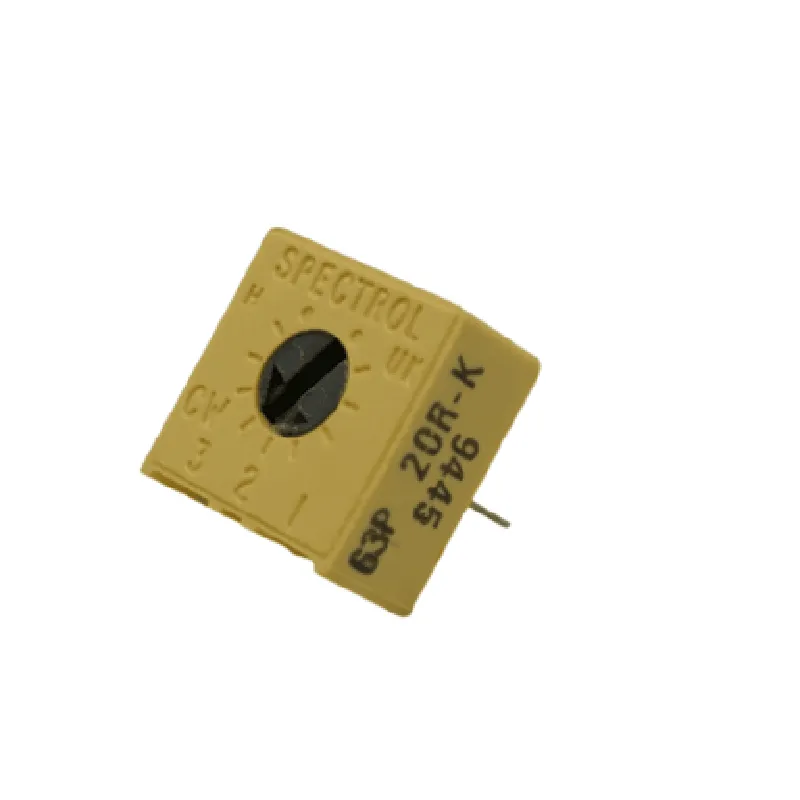

Description: 1. The '20E 3386P' Trimpot is a compact adjustable resistor available in a pack of five. It's ideal for various IoT projects, prototyping, and testing applications due to its versatility and precision. 2. Features: Each trimpot comes with a rotary knob, providing fine resistance tuning from 0 ohms up to 33k ohms. They are RoHS compliant and have a tolerance of ±5%. The package includes five individual trimmers. 3. Usage: These trimpots can be employed in various IoT applications such as voltage regulation, current limiting, and calibration of sensors. They can also be used to fine-tune the resistance values in circuits, making them an essential component for customizing projects. 4. Installation: To use these trimmers in a project, simply solder them between two points on the circuit board. The rotary knob allows you to adjust the resistance as needed. These trimpots are compatible with standard 0603 footprint mounting. 5. Precision & Accuracy: With a tolerance of ±5%, these trimm
| Specification | Details |
|---|---|
| Part Number | 20E 3386P |
| Quantity per Pack | 5 |
| Trim Pot Type | Linear Resistive Potentiometer |
| Resistance Value | 10 kΩ (± 10%) |
| Tolerance | ± 5% |
| Accuracy | ± 2% |
| Temperature Coefficient | -50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Power Rating | 10 mW (max) |
| Dimensions | 8 mm x 4.5 mm x 6.9 mm |
| Material | Plastic (Black and Silver finish) |
1. The 2N2222A is a versatile...
1. LM317 is a three-terminal ...

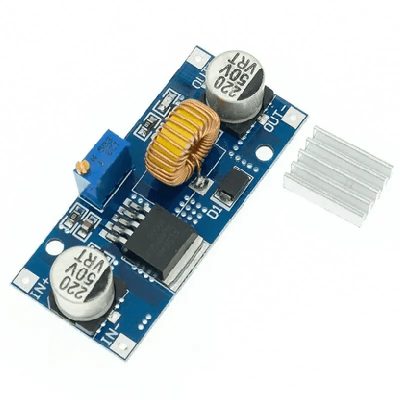

XL4015 DC-DC Step Down Adjust...
