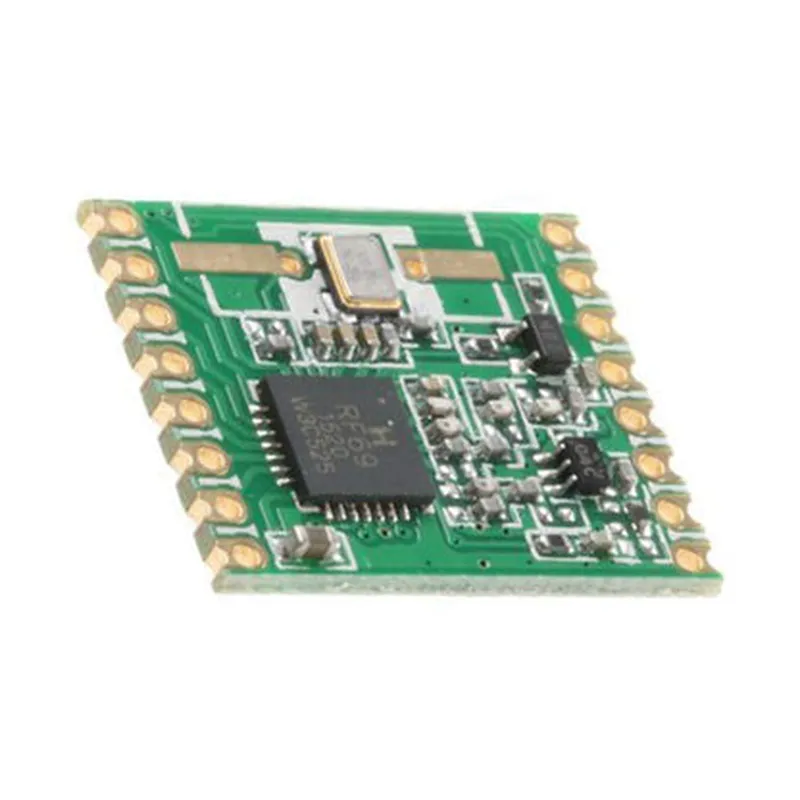

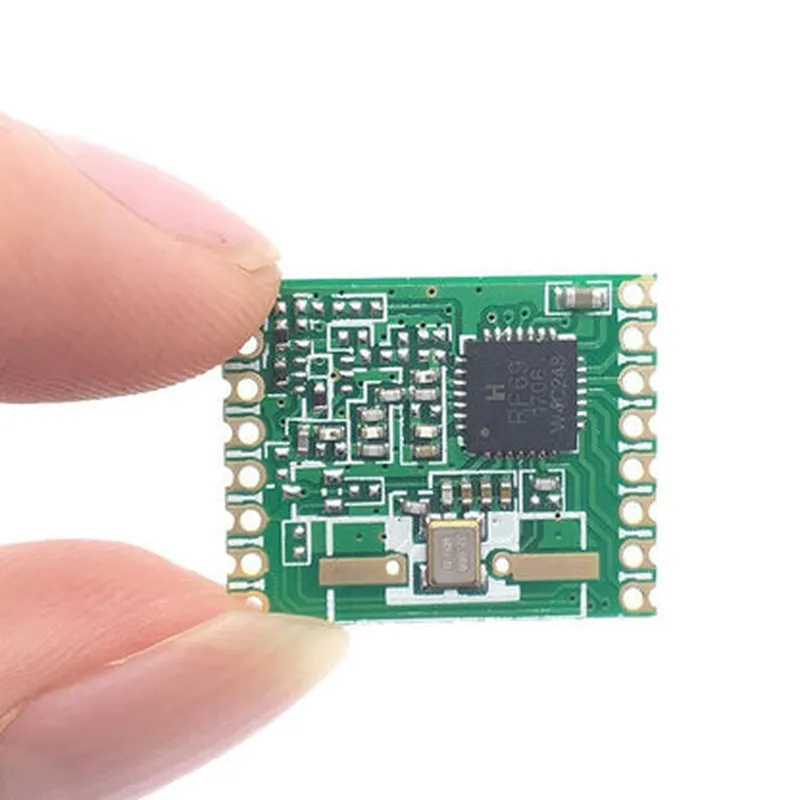

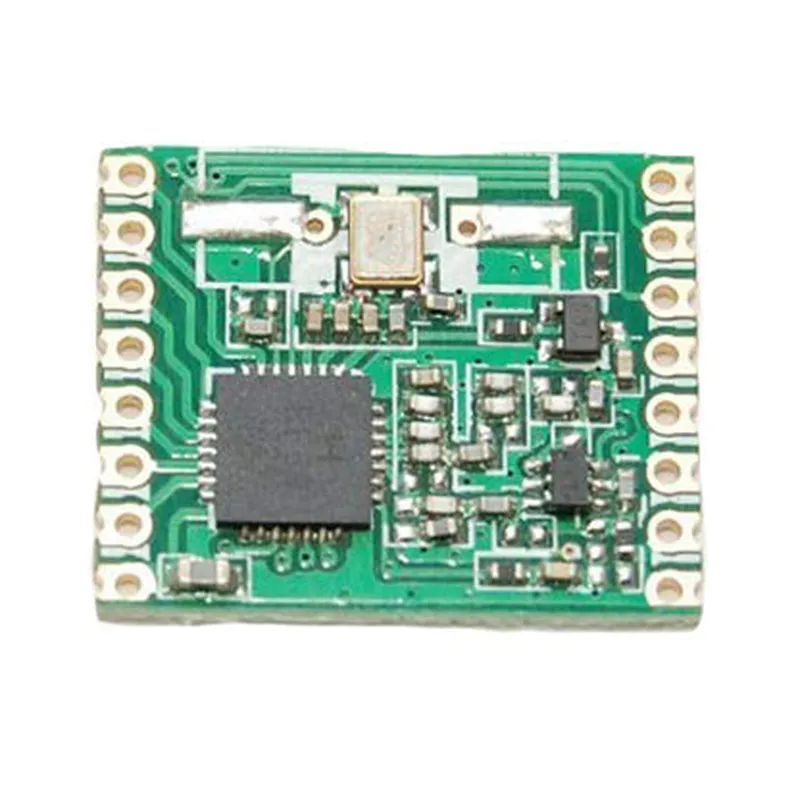

Description: 1. Frequency: RFM69 FSK Transceiver Module operates in the licensed ISM (Industry Scientific Medical) band at 433 MHz or 868/865 MHz depending on the region, making it ideal for wireless communication applications. 2. Range: With a maximum range of up to 1 kilometer in open areas and line-of-sight conditions, RFM69 FSK Transceiver Module is suitable for both short and long-range IoT projects. 3. Modulation: This transceiver module uses Frequency Shift Keying (FSK) modulation which provides better noise immunity compared to On-Off Keying (OOK) and Amplitude Shift Keying (ASK). 4. Low Power Consumption: The module's power consumption is as low as 13mA in transmit mode and 28 mA in receive mode, making it suitable for battery-operated IoT projects. 5. Integration: RFM69 FSK Transceiver Module can be easily integrated with microcontrollers like Arduino, PIC, or MSP430 using the SX127x transceiver chip and an appropriate driver or library for your MCU. 6. Secure Communication: The mod
| Specification | Details |
|---|---|
| Frequency Range | 868 MHz (Europe) 915 MHz (USA) |
| Data Rate | Up to 300 kbps |
| Modulation Type | FSK (Frequency Shift Keying) |
| Communication Mode | Half-duplex 2-wire interface |
| Supply Voltage | 1.8V to 3.6V |
| Current Consumption | 12 mA (typical) 30 mA (max) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Dimensions | 25 x 21 x 4 mm |
| Weight | Approximately 7 grams |
| Interface | SPI (Serial Peripheral Interface) |
