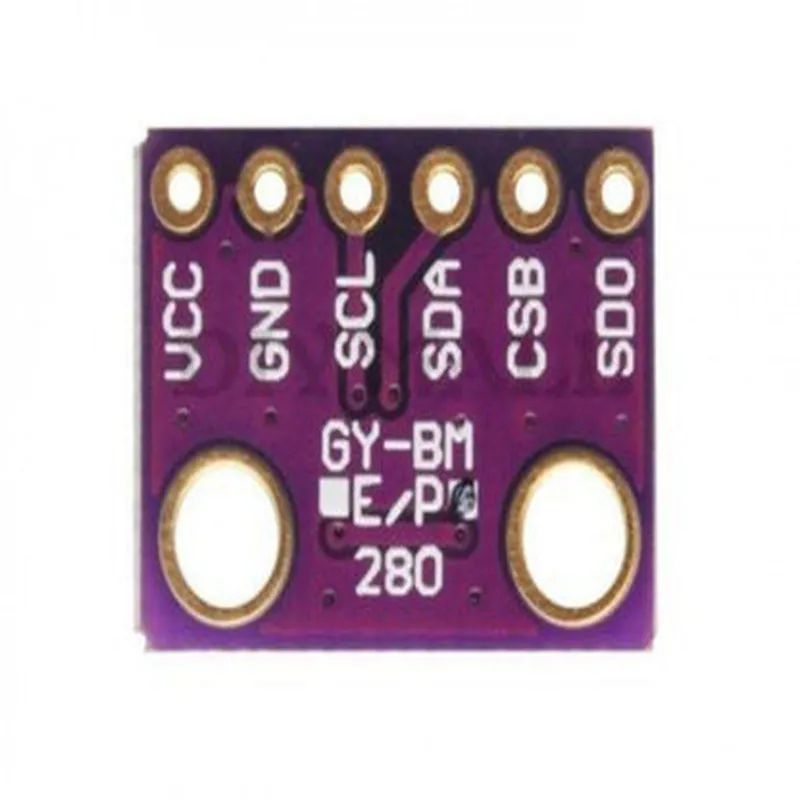

Description: 1. BMP280 Sensor Overview: The BMP280 is a digital barometric pressure sensor module based on Bosch Sensortec's SiN micro-electromechanical systems (MEMS) technology. It provides measurements for atmospheric pressure, temperature, and altitude. 2. High Resolution: With an adjustable oversampling setting of up to 16 times, the BMP280 offers a high measurement resolution of up to 30mbar for barometric pressure and ±0.075°C for temperature readings. 3. I2C Interface: This sensor module communicates with microcontrollers using the Industry Standard I²C (Inter-Integrated Circuit) interface, making it easy to interface and control in various projects and applications. 4. Operating Temperature: The BMP280 sensor operates efficiently within a temperature range of -40°C to +85°C (-40°F to 185°F), making it suitable for use in diverse environments. 5. Low Power Consumption: With its low power consumption feature, the BMP280 module is perfect for battery-powered IoT projects and devices wher
| Specification | Details |
|---|---|
| Model Number | BMP280 |
| Sensor Type | Barometric Pressure and Temperature |
| Resolution | 16-bit (pressure) 14-bit (temperature) |
| Operating Voltage | 1.71V to 3.6V |
| Current Consumption | 2 μA (sleep mode) 0.5 mA (normal mode) |
| Pressure Range | 300 mbar to 1100 mbar |
| Temperature Range | -40°C to +85°C |
| Accuracy | ±0.12% full scale ±1.5°C |
| Communication | I²C (SDA/SCL) |
| Dimensions | 10 x 15 mm |
| Weight | 2 g |
