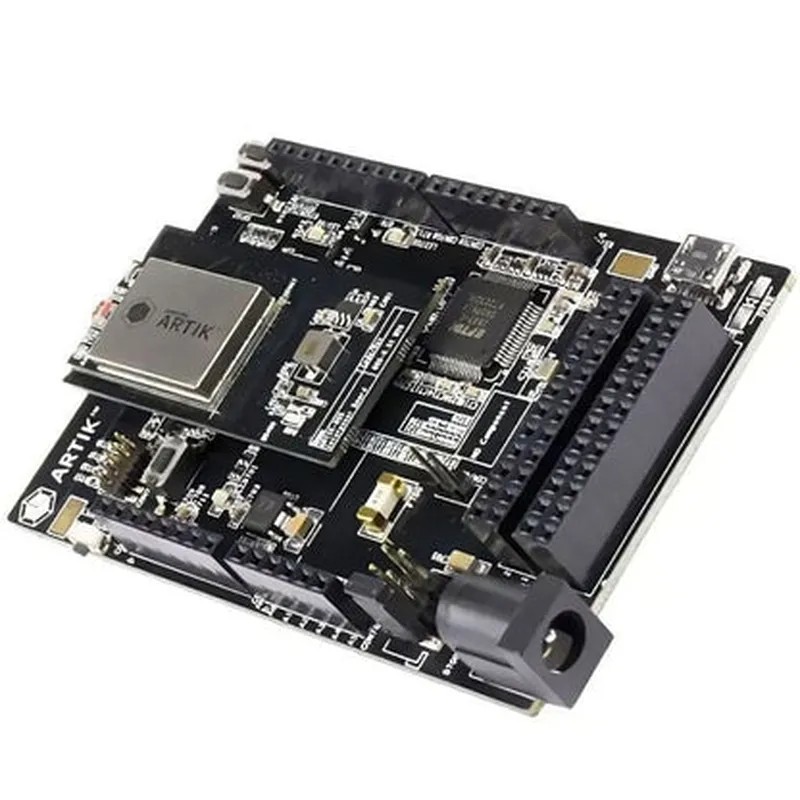

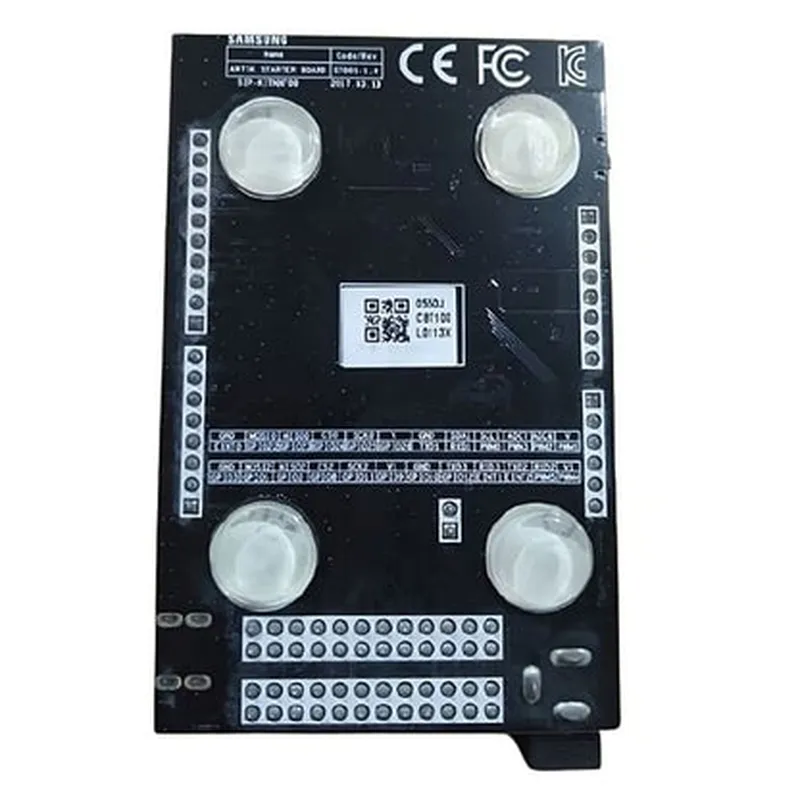

Samsung ARTIK 055s SoM SIP-KITNXH002 - Development Board

This product is not available in your location yet

Description: 1. The Samsung ARTIK 055s System-on-Module (SoM) SIP-KITNXH002 Development Board is a compact IoT solution designed for rapid prototyping and deployment of connected devices. 2. It features the Samsung Exynos ARM Cortex-A7 processor, providing high performance and power efficiency for IoT applications. 3. The board includes 1 GB DDR3 RAM, 4GB eMMC flash memory, and a microSD card slot for additional storage capacity. 4. It supports various wireless communication standards like Wi-Fi (802.11 b/g/n), Bluetooth 4.1 (LE), Zigbee, and Thread, enabling seamless device connectivity. 5. The development board comes with an extensive range of I/O interfaces, including USB Host/OTG, UART, SPI, I2C, PWM, ADC, and GPIO pins. 6. It incorporates a built-in power management IC and various sensors like accelerometer, gyroscope, magnetometer, and pressure sensor for advanced IoT applications. 7. The board's modular design allows easy integration of Samsung ARTIK 055s SoM with other components and

View Technical Documentation

Specification	Details
Microcontroller	ARM Cortex-A53 Quad-core 1.3 GHz
Memory	1 GB LPDDR4 RAM 8 GB eMMC storage (expandable up to 128 GB)
Connectivity	Wi-Fi (802.11ac) Bluetooth 5.0 LE GPS NFC
Sensors and Modules	Accelerometer Gyroscope Ambient Light Sensor Proximity Sensor Microphone
Expansion Options	Supports a range of interfaces including I2C SPI UART GPIO USB OTG (Device/Host)
Operating System	Supports various operating systems including Linux Android Things and Tizen OS
Dimensions	40 mm x 45 mm
Power Consumption	Typical: 3.5 W Maximum: 4.2 W (depending on usage)
Temperature Range	Operating: -20°C to +60°C Storage: -40°C to +85°C
Certifications	Compliant with CE FCC and RoHS (Reduction of Hazardous Substances)
