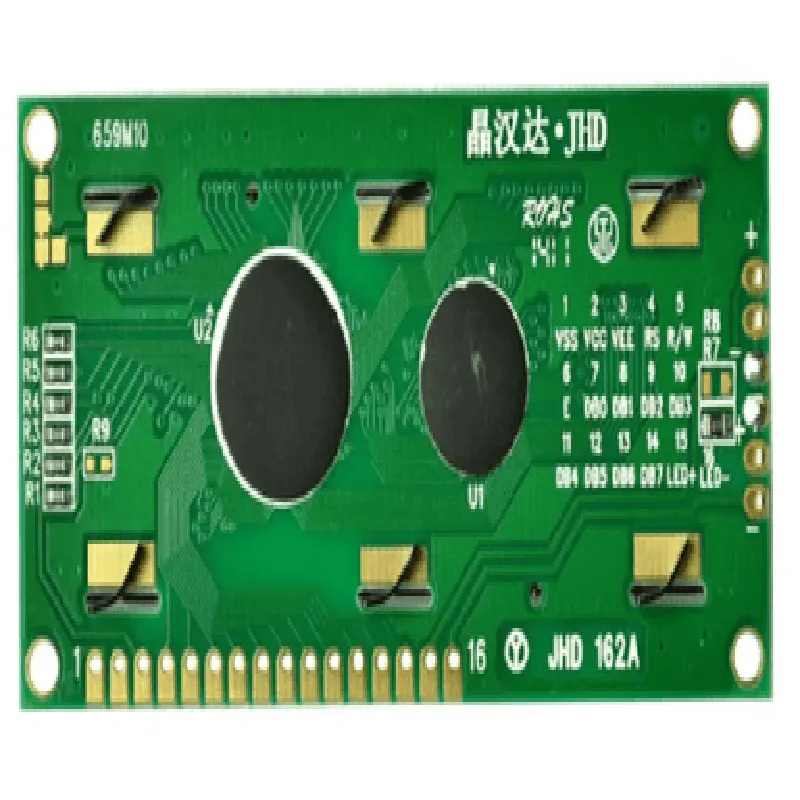

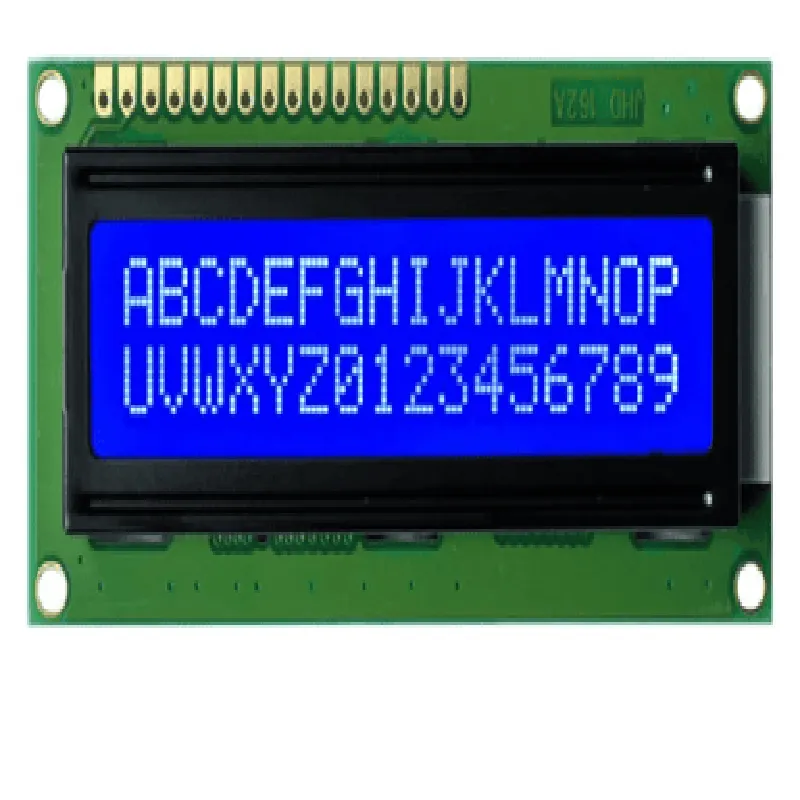

Description: 1. Overview: The Original JHD 16x2 Character LCD Display comes in a blue backlight color, offering crystal clear text display for various IoT projects and applications. 2. Size and Resolution: Measuring at 16 columns by 2 rows, this LCD module provides an ample display area for small to mid-sized text, numbers, and symbols. 3. Compatibility: The JHD 16x2 Character LCD Display is compatible with most microcontrollers like Arduino, Raspberry Pi, PIC, and AVR, making it a versatile choice for numerous IoT projects. 4. Data Interface: The module supports HD44780 controller, which uses 16 pins: VSS, VDD, VO, GND, VOE, RS, RW, EN, D0-D7. This interface makes it easier to connect and program the display for various applications. 5. Unique Features: Some standout features include a built-in backlight that can be controlled via a separate pin, and an auto-adjust feature to adapt the contrast based on ambient light conditions. 6. Ease of Use: The LCD comes with predefined functions like cl
| Specification | Details |
|---|---|
| Display Type | Monochrome LCD 16x2 Characters |
| Display Color | Blue |
| Character Size | 5mm x 8mm (dot matrix) |
| Backlight | None (non-backlit display) |
| Operating Voltage | 3.3V to 5V |
| Current Consumption | Typical: 700mA Max: 1A |
| Resolution | 32x16 (128 characters) |
| Contrast Ratio | 10:01 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Dimension | 83mm x 49mm x 22mm |
| Weight | Approximately 55 grams |
1. Size and Resolution: This ...
1. Arduino 3.2in TFT LCD Disp...
1. Size and Resolution: This ...
16x4 LCD Display with Green B...

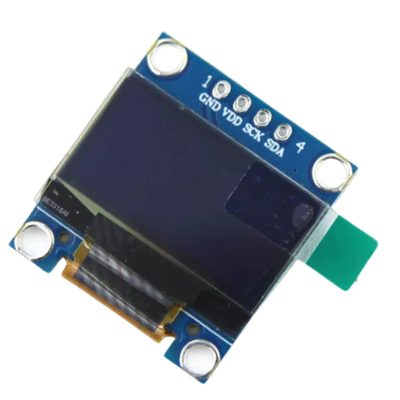

1. Size and Type: This 0.96 i...
1. Size and Resolution: The 0...

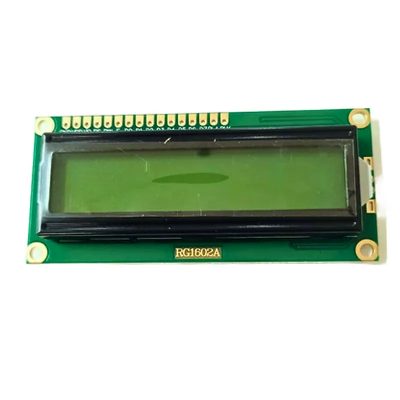

16x2 Blue LCD Module: 1. Dis...
