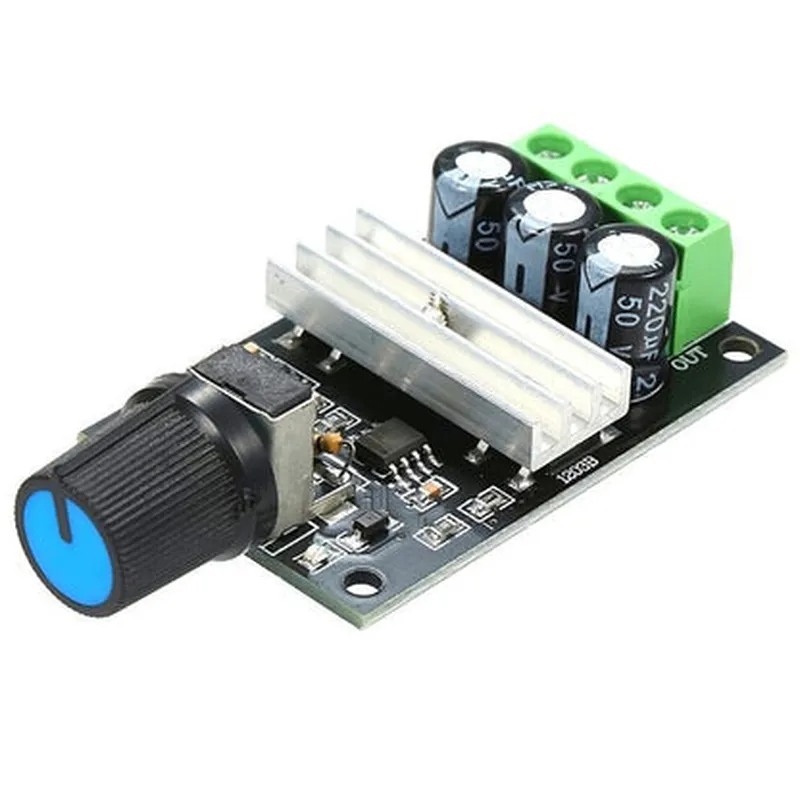

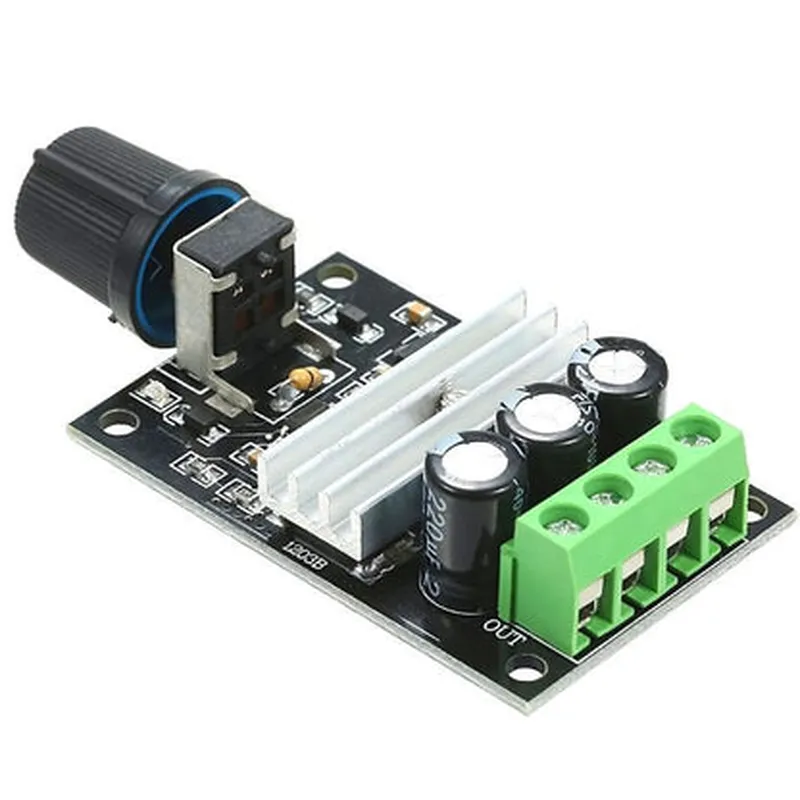

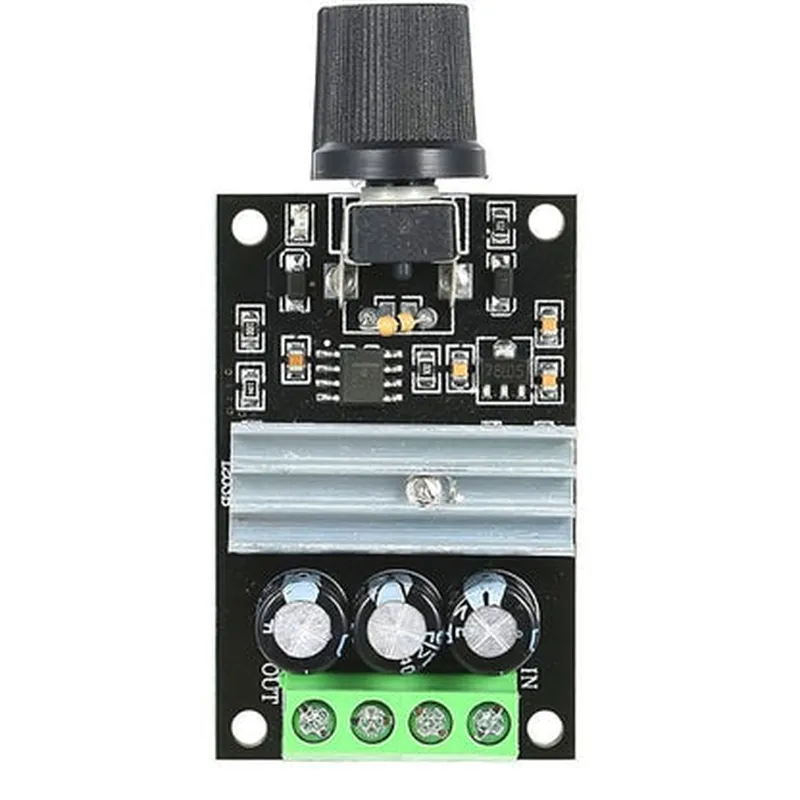

Description: 1. Features: The 1203B PWM DC Motor Speed Controller Module is a versatile and efficient electronic device designed to regulate the speed of DC motors using Pulse Width Modulation (PWM) technology. 2. Compatibility: It supports DC motors with voltage ratings between 6V to 18V and can handle motor currents up to 3A. This module is ideal for various applications, including robotics, model trains, CNC machines, and more. 3. Easy-to-use Interface: The module features a simple, user-friendly interface with three potentiometers for controlling the motor's speed in forward, reverse, and brake modes. Additionally, it has LED indicators to display the operational status. 4. PWM Control: The 1203B uses PWM (Pulse Width Modulation) technology, which allows smoother speed regulation compared to traditional methods. This results in quieter and more efficient motor operation. 5. Protection Mechanisms: Integrated protection mechanisms include reverse polarity protection, thermal shutdown, and ov
| Specification | Details |
|---|---|
| Input Voltage | 4.5V-35V (DC) |
| Output Current | 10A (peak) 6A (sustained) |
| PWM Frequency | Up to 16 kHz |
| Resolution | 256 steps |
| Motor Type Support | DC Motor Stepper Motor |
| Operating Temperature | -20°C to 60°C |
| Dimension | 30mm x 25mm x 15mm |
| Weight | Approximately 40 grams |
| Package | PCB (Printed Circuit Board) |
| Interface | Analog Voltage PWM Signal (IN) |

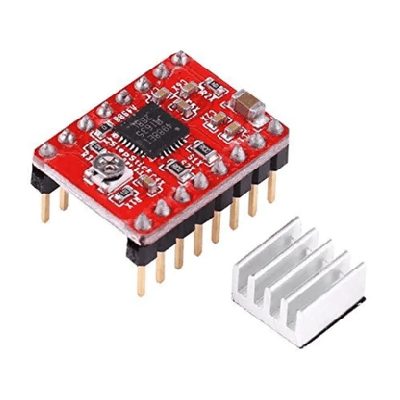

1. Overview: The A4988 Steppe...
1. Overview: The DRV8825 is a...
1. The 5V 2 Channel Solid Sta...
1. ULN2003 is a 7214A based 8...

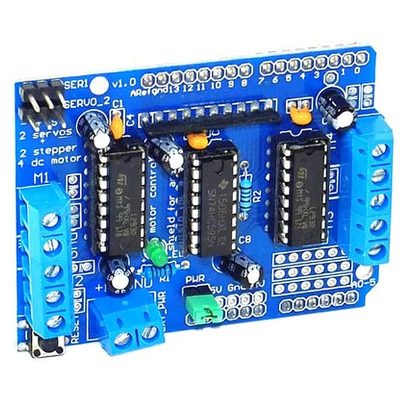

1. L293D Motor Driver Board O...
