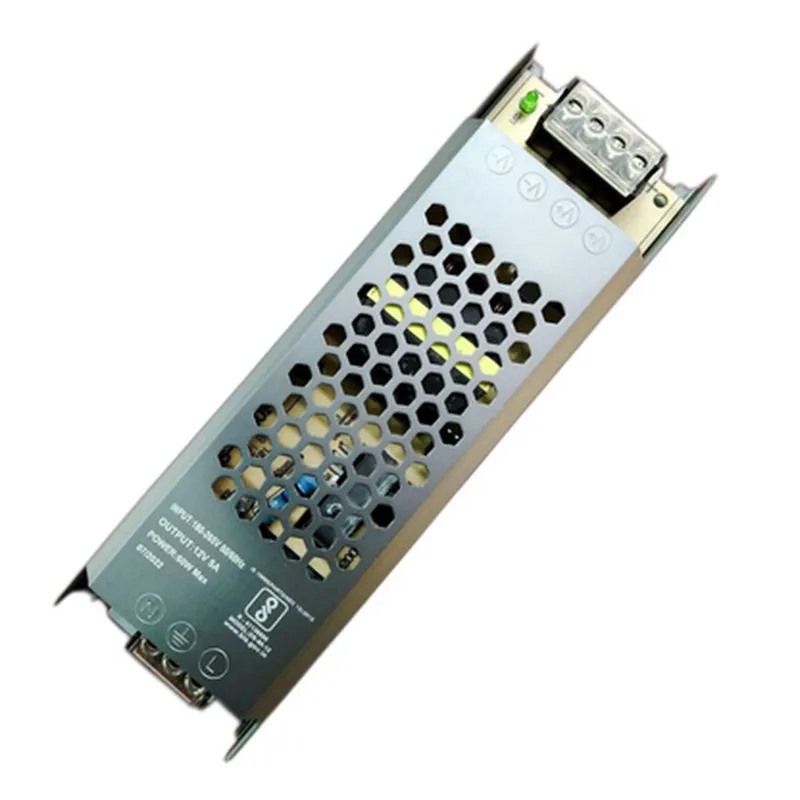

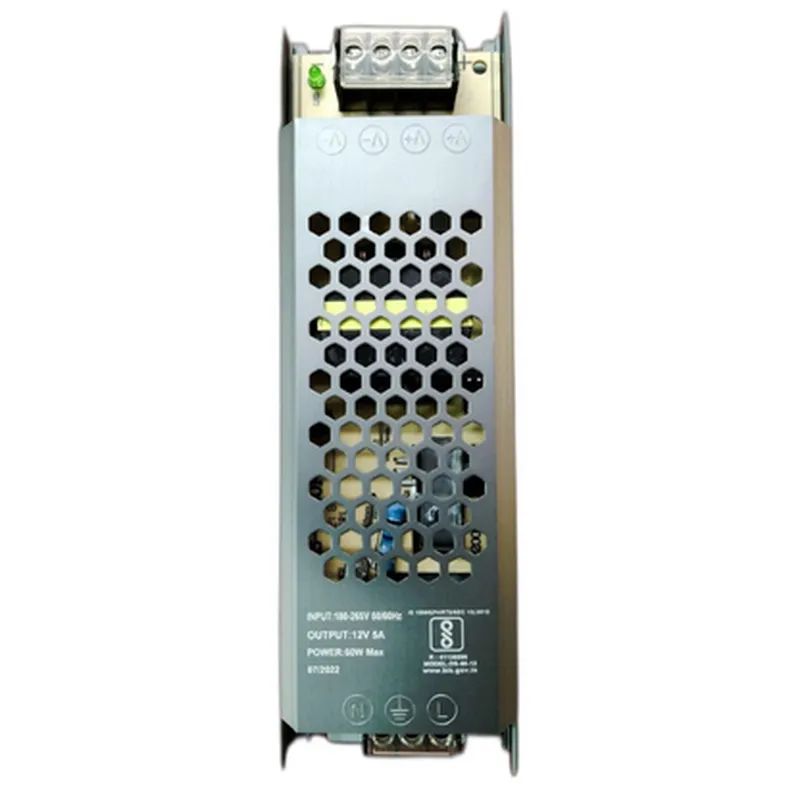

12V 5A SMPS

Stufin

This product is not available in your location yet

Description: 1. A 12V, 5A Switching Mode Power Supply (SMPS) is an efficient and compact power adapter that converts 110-240V AC mains power into a regulated 12V DC output. 2. Features: It offers overvoltage, undervoltage, and short circuit protection for safety. The SMPS design ensures minimal heat generation and reduced energy loss compared to linear power supplies. 3. Applications: Ideal for powering various IoT devices such as sensors, actuators, LED strips, and small control systems that require a stable 12V DC voltage input. 4. Versatility: Compatible with a wide range of IoT applications due to its adjustable output voltage capability within the 12V range (available in certain models). 5. Compact Size: Its compact design allows for easy integration into projects where space is limited, making it an excellent choice for portable and remote installations. 6. Efficiency: SMPSs offer high efficiency levels, typically ranging from 85% to 95%, meaning less energy waste and lower operating co

View Technical Documentation

Specification	Details
Input Voltage	90-264V AC (Universal)
Output Voltage	12V DC
Output Current	5A (Peak) 4.2A (Continuous)
Efficiency	≥80%
Switching Frequency	50 kHz
Output Ripple	≤100mV @ 120Hz (Typical)
Noise Level	≤40dB(A)
Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 80°C
Certifications	UL (Underwriters Laboratories) ETL CE
Dimensions	[Insert dimensions]
Weight	[Insert weight]
