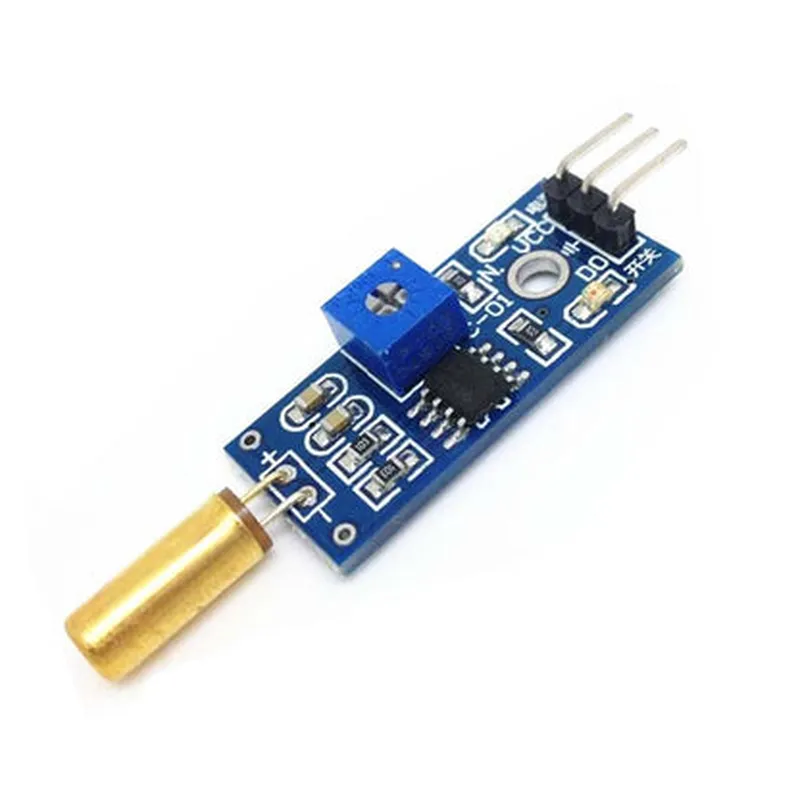

Description: Tilt Sensor Module: 1. Functionality: Tilt Sensor Module is an electronic component that measures the angle or orientation of a plane relative to gravity. It converts angular displacement into electrical signals. 2. Components: Consists of a tilt sensor IC, amplifier circuit, and calibration adjustments. The sensor can be based on various technologies like digital accelerometers or gyroscopes. 3. Applications: Widely used in robotics, drones, automotive, gaming systems, health monitoring devices, and home security systems to detect changes in orientation or tilt. 4. Sensitivity: Highly sensitive to small tilts due to the use of advanced sensor technologies, making it suitable for applications requiring precise measurement. 5. Digital Output: Modern Tilt Sensor Modules provide a digital output that can be read directly by microcontrollers and other digital devices. This simplifies wiring and reduces noise compared to analog sensors. 6. Calibration: Calibrated at the factory, but may r
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V to 5V |
| Current Consumption | Typical: 1mA Maximum: 10mA |
| Tilt Range | ±15° to ±30° |
| Resolution | ±0.1° |
| Accuracy | ±2° |
| Output Type | Analog (VCC reference) |
| Analog Output | 0V to VCC |
| Digital Output | Optional via external MCU |
| Package Size | 25.5mm x 15.3mm x 6.2mm |
| Weight | Approximately 10g |
| Interface | I2C (optional) Analog |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
