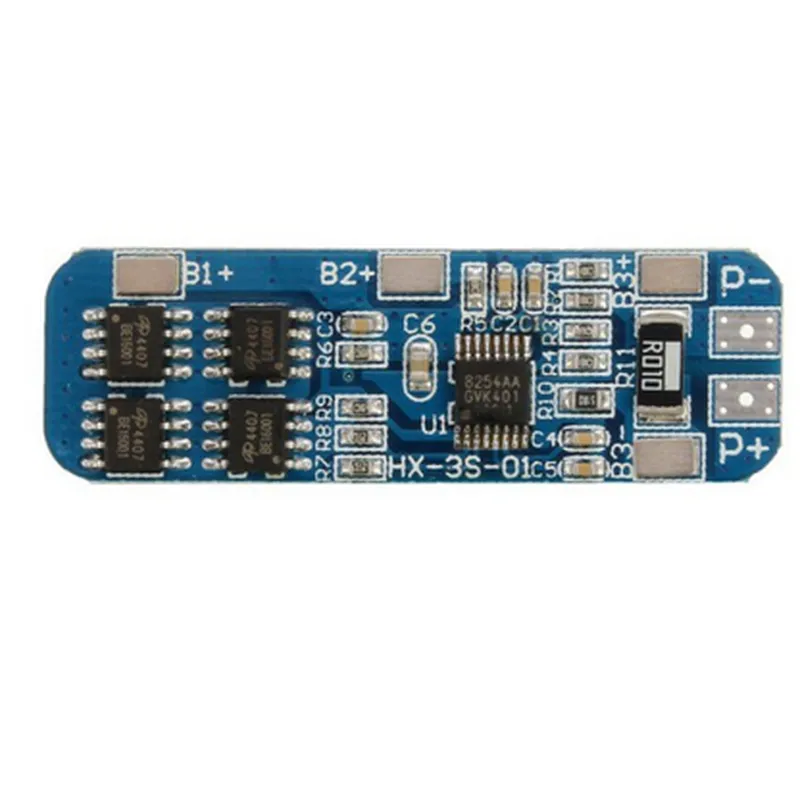

Description: 1. An 18650 12V 10A Lithium Protection Board is an essential component in lithium-ion battery systems, designed to protect batteries from overcharging, over-discharging, short circuits, and reverse polarity issues. 2. Compatibility: This protection board is specifically designed for use with three or six 18650 Li-Po/Li-Fe batteries, which are widely used in portable devices, electric vehicles, and renewable energy systems. 3. Voltage and Current: It operates at a voltage range of 9.6V to 12.6V and can handle a continuous current of up to 10A, making it suitable for high-drain applications like power tools, e-bikes, or solar charging systems. 4. Safety Features: This protection board offers overcharge, over-discharge, short circuit, and reverse polarity protection, ensuring battery longevity and safe operation of connected devices. 5. Balancing Charging: It includes a built-in balancing charger that maintains an equal voltage level in each individual battery cell during charging, i
| Specification | Details |
|---|---|
| Input Voltage | 2.7V - 4.2V (Single Cell Li-ion) |
| Output Voltage | 12V Constant Output |
| Maximum Current | 10A (Continuous) 20A (Peak) |
| Protection Modes | Overcharge Protection Overdischarge Protection Short Circuit Protection |
| Cell Balance | 4-Cell Lithium Battery Balancing |
| Charge/Discharge | Li-ion Battery Charge and Discharge Management |
| Operating Temp. | -20°C to +60°C (Storage) -10°C to +60°C (Operation) |
| Dimensions | 80mm x 50mm x 15mm |
| Weight | approximately 70 grams |
| Certifications | UL (Underwriters Laboratories) CE (Conformité Européene) |
| Mounting Options | PCB Mountable Surface Mountable |
