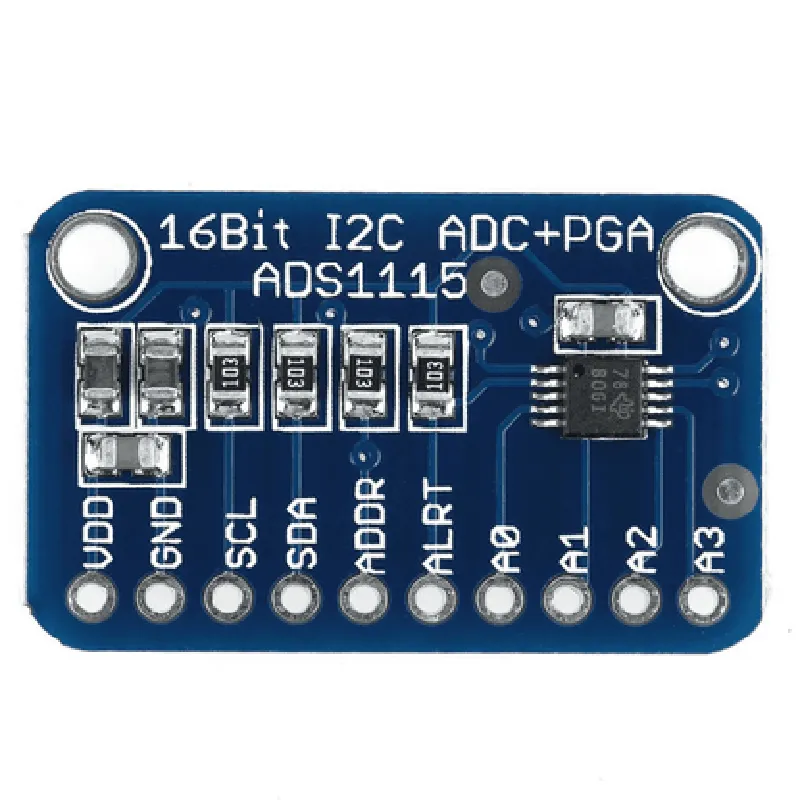

16 Bit I2C 4 Channel ADS1115 Module

This product is not available in your location yet

Description: 1. Four-Channel 16-Bit Analog-to-Digital Converter (ADC): The ADS1115 is a high-performance, four-channel, 16-bit digital converter specifically designed for Inter-Integrated Circuit (I2C) applications. 2. Wide Input Range (±6.3V): This module supports an input voltage range of ±2.048V to ±6.3V, making it suitable for various power supply configurations and industrial environments. 3. High Resolution (12-bit or 16-bit): Users can choose between 12-bit and 16-bit resolution modes to balance accuracy and data size requirements. In 16-bit mode, the ADC provides up to 20-bit effective resolution. 4. Low Power Consumption (<2mA): The module's power consumption is minimal, making it ideal for battery-operated IoT projects or applications where low power usage is essential. 5. Easy I2C Interface: The ADS1115 communicates via the popular I2C interface, enabling easy integration with microcontrollers and other systems. No external clock signal is required. 6. Built-in Data Rate Select: Th

View Technical Documentation

Specification	Details
Operating Voltage	2.0V to 6.0V
Supply Current	14μA (typical)
Conversion Rate	Up to 860 samples per second
Resolution	16-bit ±4mV/LSB at 24bit mode
Accuracy	±0.1LSB (at 25°C) ±2LSB (max)
I2C Address	Programmable I2C address: 0x48 (default)
Data Transfer Rate	Up to 400kbit/s
Noise Rejection	Common-mode rejection ratio: 100dB
