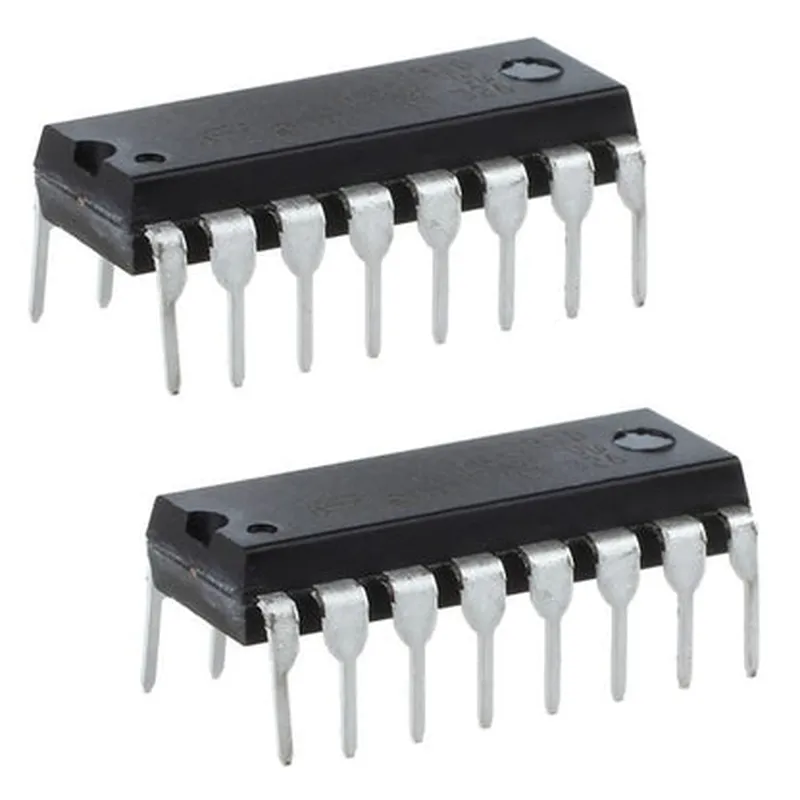

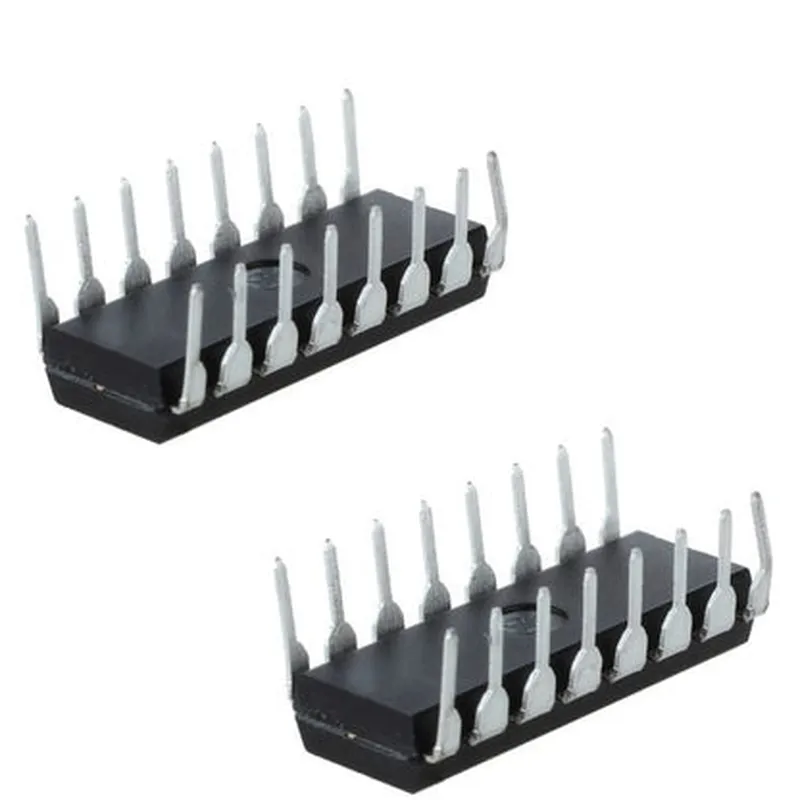

L293D Motor Driver IC (2 Pcs)

This product is not available in your location yet

Description: 1. The L293D is a dual full-bridge driver IC specifically designed for controlling DC motors or stepper motor applications with ease. (2 pcs are provided in the package.) 2. Each IC can drive two DC motors independently, delivering a maximum current of up to 0.6A per channel and a voltage range of 4.5V to 36V. 3. The L293D offers various control modes, including motor forward/reverse and motor acceleration/deceleration, via its intuitive input pins. 4. Features three operating modes: Motor1 (IN1, IN3 for forward, IN1, IN2 for reverse), Motor2 (IN4, IN6 for forward, IN4, IN5 for reverse), and both motors in parallel operation (IN1, IN3, IN4, IN6 for forward). 5. This IC boasts a built-in overload protection mechanism that automatically shuts off the motor when excessive current is detected to prevent damage. 6. It includes three enable pins (ENA1, ENA2, and ENB), which allow independent enabling of each motor channel or both motors if used in parallel operation. 7. The L293D also

View Technical Documentation

Specification	Details
Package	Dual-In-Line (DIP)

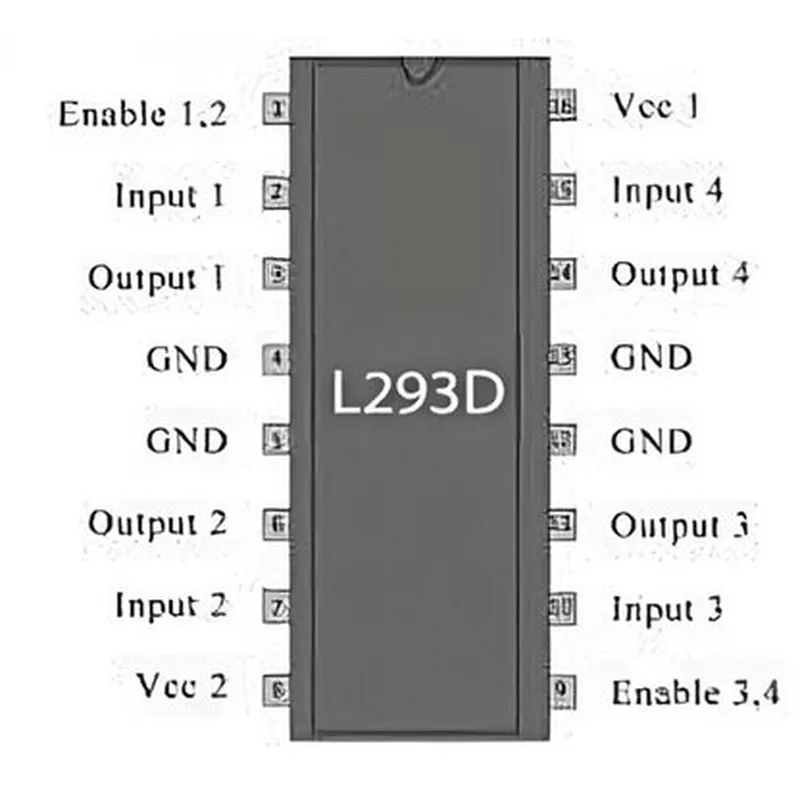

Number of Pins	16
Input Voltage	4.5V to 36V
Output Current	Up to 600mA per output
Output Voltage	Same as Input voltage
Current Rating	1A per output (max)
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +150°C
Logic Family	Quad Low-Voltage CMOS
Enable Control	Active LOW
