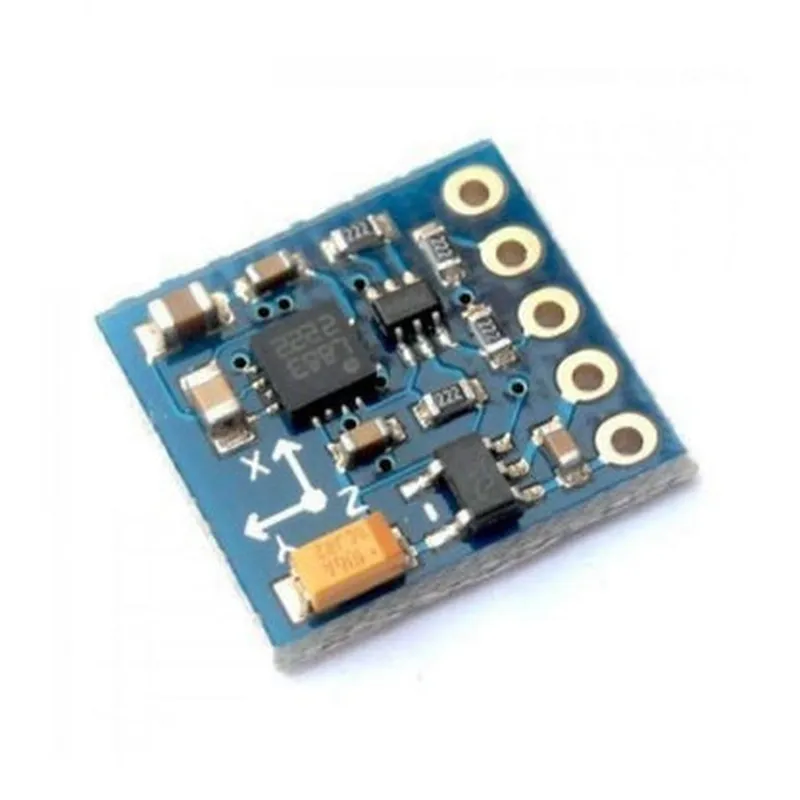

HMC5883L Triple Axis Compass

This product is not available in your location yet

Description: 1. The HMC5883L is a Triple Axis Digital Magnetic Compass, which means it can measure the magnetic north direction in three axes (X, Y, Z) to provide accurate heading information for applications. 2. This compact module measures only 20mm x 14mm and comes with an I²C interface, making it easy to integrate into various IoT projects without requiring additional space or resources. 3. Featuring a high sensitivity of ±1.5°, the HMC5883L offers excellent accuracy in determining magnetic north and can be used for navigation and orientation purposes in drones, robots, or other mobile applications. 4. The module has an adjustable gain (1.2, 1.6, 2.0, or 3.9 mT) to help improve sensitivity and minimize interference from external magnetic fields, ensuring more reliable readings even in challenging environments. 5. The HMC5883L is designed for low power consumption and operates on a supply voltage of +3.3V to +5V, making it suitable for battery-powered applications or projects where energy e

View Technical Documentation

Specification	Details
Model Number	HMC5883L
Type	Digital Compass Module
Sensitivity	1.3 Gauss (typical) 0.5-2 Gauss (range)
Resolution	0.8° (typical) 0.5-4° (range)
Measurement Range	±180°
Accuracy	±10°
Scale Factor Error	<±1%
Offset Error	<±50 arcseconds
Power Consumption	6.5 mA (typical) 0-15 mA (range)
Supply Voltage	2.7-5.5 V
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +125°C
Dimension	3 mm x 4 mm (typical)
Package Type	LGA-14 (8-pin 2x2mm)
