Arduino Leonardo R3 compatible board
Arduino Leonardo R3 compatible board
Arduino Leonardo R3 compatible board

Arduino Leonardo R3 compatible board

This product is not available in your location yet

Description: 1. Compatibility: Arduino Leonardo R3 is an input-output (I/O) board based on the ATmega32u4 microcontroller, which is fully compatible with Arduino Leonardo series and also backward compatible with Arduino Micro and Arduino Pro Micro. 2. Keyboard and Mouse Emulation: This board offers unique features of keyboard and mouse emulation through its USB connection, enabling it to act as a human interface device (HID), making it suitable for projects involving interactive art installations, multimedia controllers, or even DIY computers. 3. Programming: Arduino Leonardo R3 can be programmed using the Arduino IDE, an open-source software that supports both C++ and visual programming languages (like Scratch or Blockly). This allows users with different skill levels to work on projects effectively. 4. Input/Output Pins: The board features 20 digital input/output (I/O) pins (of which 7 can be used as PWM outputs), 14 analog inputs, and a USB connection that acts as both power source and commu

Specification Details
Processor 8-bit AVR ATmega32U4
Operating Voltage 5V (regulated) 7-12V (on-board regulator)
Clock Speed 16 MHz
RAM 2.5 KB
Flash Memory 32 KB
Serial Communication USB (OTG and device) UART SPI I2C
Analog Input Pins 12
Analog Output Pins 6
Digital Input/Output Pins 20 (14 of which are PWM capable)
Power Pin 1 (VCC pin)
Reset Pin 1
Dimensions 68.6mm x 53.4mm x 10mm
Weight approximately 18g
Return Policy

Related Products

Seeeduino XI...

Seeeduino XI...

1. Seeeduino XIAO is a compac...

Normal (3-4 days)
₹879 33% off
₹589 GST Included
ADIY UNO KIT...

ADIY UNO KIT...

1. Introduction: ADIY UNO KIT...

Normal (3-4 days)
₹2474 26% off
₹1830 GST Included
MCP4725 I2C ...

MCP4725 I2C ...

1. MCP4725 Overview: The MCP4...

Normal (3-4 days)
₹267 28% off
₹192 GST Included
PN532 NFC-Ne...

PN532 NFC-Ne...

1. PN532 is a versatile NFC (...

Normal (3-4 days)
₹557 31% off
₹384 GST Included

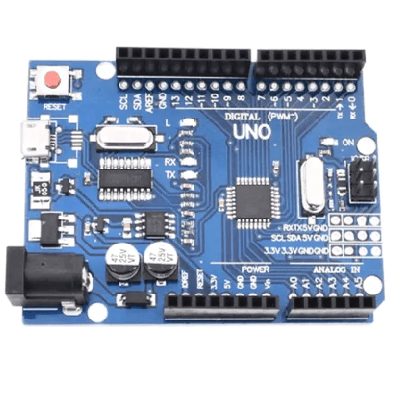

Arduino Uno ...
