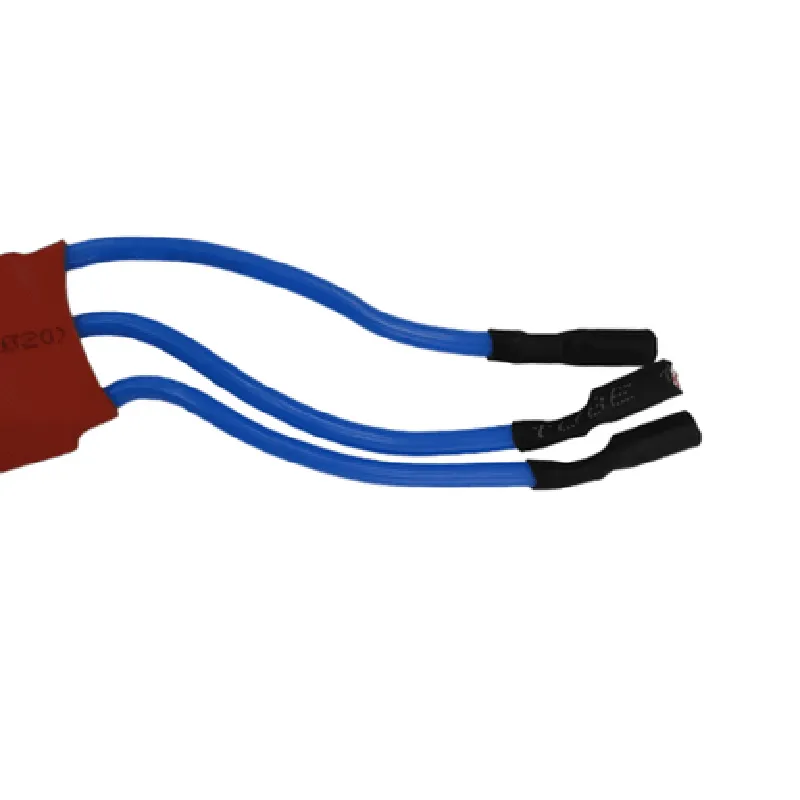

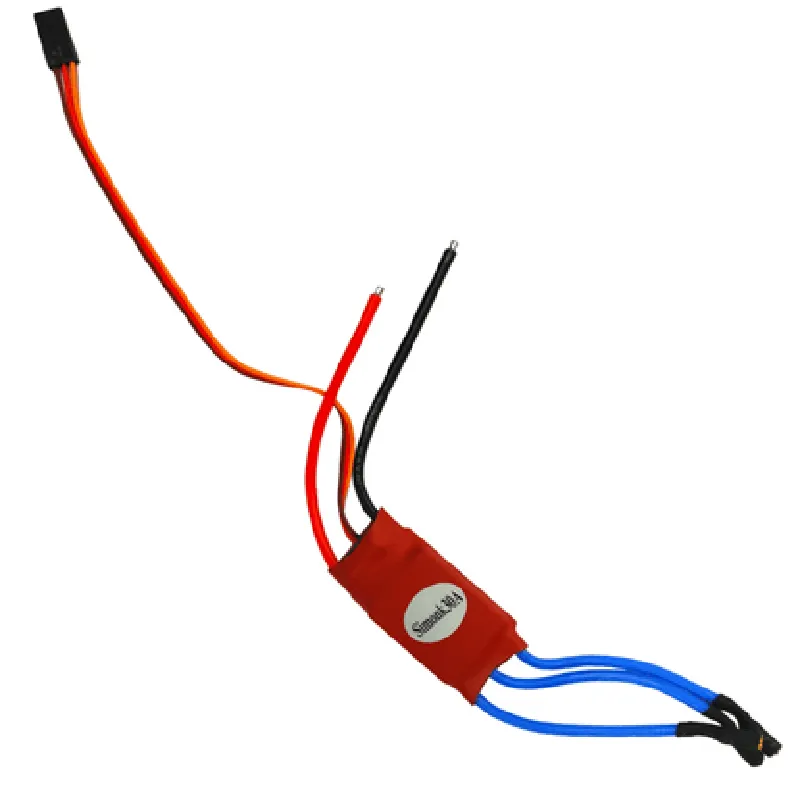

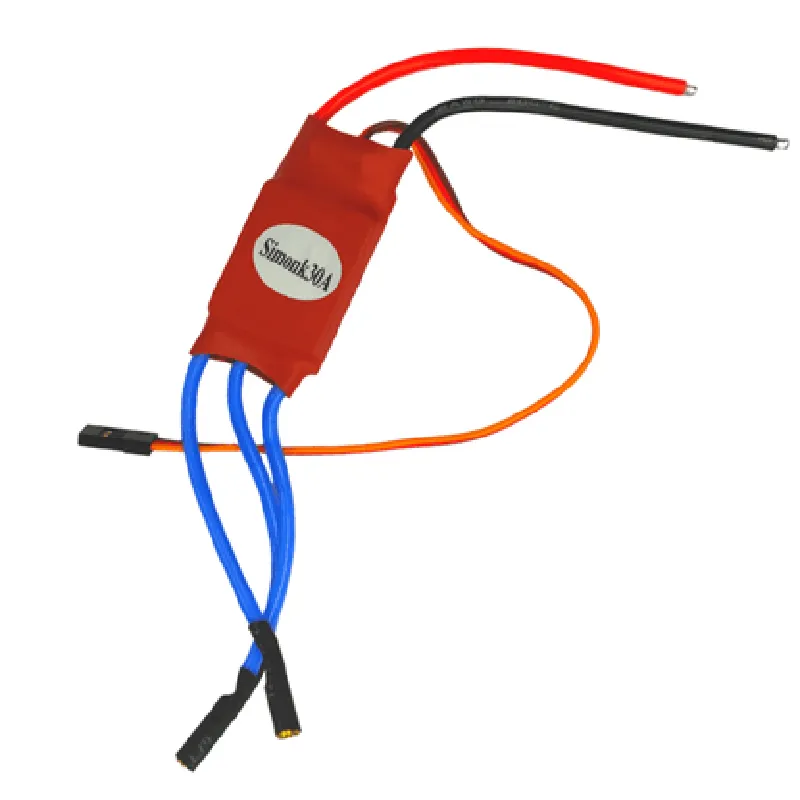

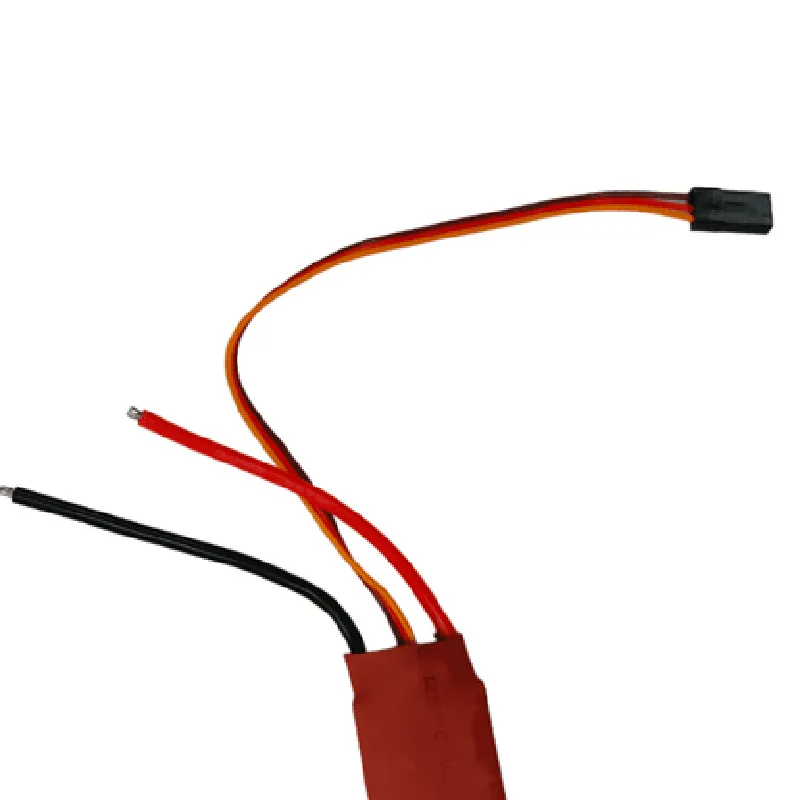

30A Simonk ESC Controller (With only bullets) for Drones

Stufin

30A Simonk ESC Controller (With only bullets) for Drones

This product is not available in your location yet

Description: 1. High Power Handling: The 30A Simonk ESC (Electronic Speed Controllers) is designed to deliver power efficiently to drone motors, with a maximum continuous current of 30A and a peak current capability of up to 45A. 2. SimonK Firmware: This ESC comes pre-installed with SimonK firmware, a popular open-source software for optimizing motor performance and improving motor control stability. 3. Programmable: Users can program the controller using various configurable settings like motor reversing, brake function, and timing advance through the use of an external programmer or simulating the signal with a computer and USB-to-serial converter. 4. Adjustable Timing: The 30A Simonk ESC supports adjustable timing parameters (pulse width modulation – PWM), enabling fine-tuning of motor control for better efficiency, responsiveness, and drone flight characteristics. 5. Safety Protection: The controller incorporates multiple safety features such as overcurrent protection, thermal shutdown, an

View Technical Documentation

Specification	Details
Operating Voltage	4.5-24V (3S-6S LiPo or 8-12 NiMH)
Current Range	0-30A
BEC Output	5V adjustable 1.5A max
Communication	UART (TX/RX) compatible with ESC telemetry
Operating Frequency	Up to 400KHz
Thermal Protection	Thermal cutoff at 120°C
Dimension	31x20x7mm
Weight	approximately 25g
Material	High-quality aluminum and PCB
Certification	CE FCC compliant
