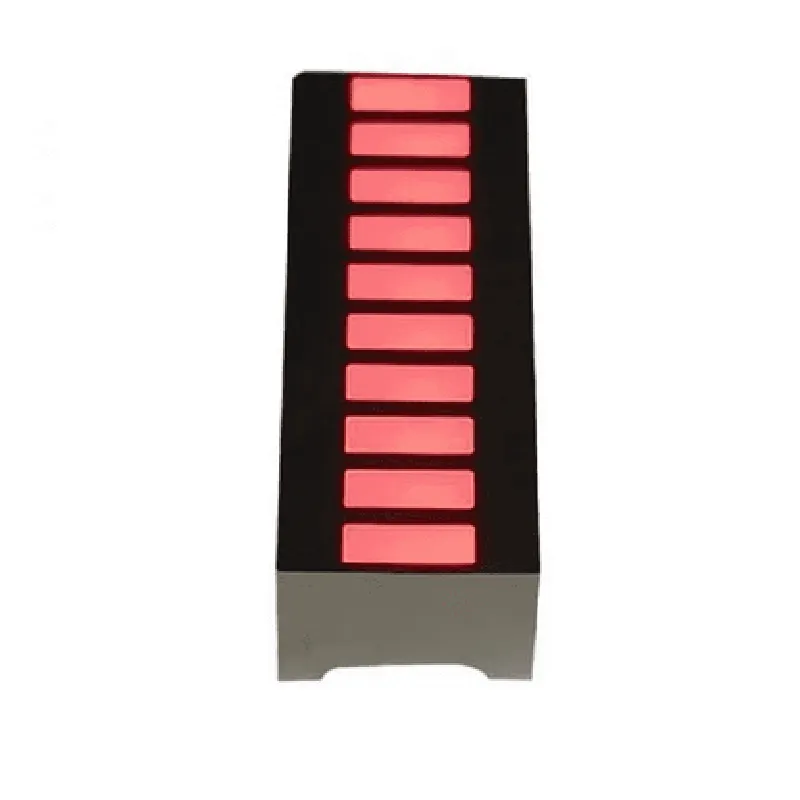

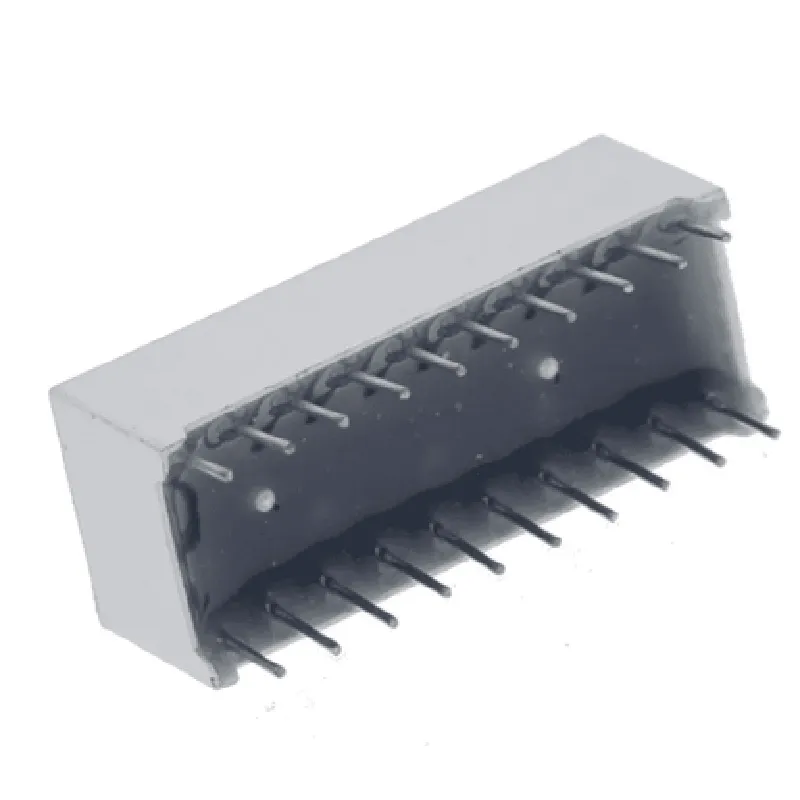

10 Segments 4 Colors Stripe Digital Bar Graph Display

This product is not available in your location yet

Description: 1. A 10-segment, 4-color stripe digital bar graph display is an advanced data visualization component in IoT applications. It features ten separately controlled segments that can display four distinct colors each. 2. Versatile Application: This display is widely used in various IoT projects such as energy monitoring systems, environmental sensors, and industrial automation processes for real-time data representation. 3. Easy Interface: It boasts a simple yet effective user interface through digital segments that can be controlled via external microcontrollers or programmable logic controllers (PLCs). 4. Color Customization: Each segment is capable of displaying four different colors, enabling users to customize the display according to their requirements and preferences. 5. Flexible Segment Sizing: Users can choose to configure the size of each segment for fine-tuned data representation purposes. This feature allows for a more detailed analysis of the data being displayed. 6. Com

View Technical Documentation

Specification	Details
Display Type	7-Segment LED Display
Number of Displays	10 Units
Segment Configuration	0-9 (Decimal) A B C D E F
Color Scheme	4 Colors: Red Green Blue Yellow
Display Mode	Stripe Digital Bar Graph Display
Brightness Control	Adjustable
Power Supply	DC 3V-5V 10mA
Operating Temperature	-20°C to +70°C
Size	40mm x 12mm x 9mm (approx.)
Weight	15 grams
Material	Plastic with LED Display
