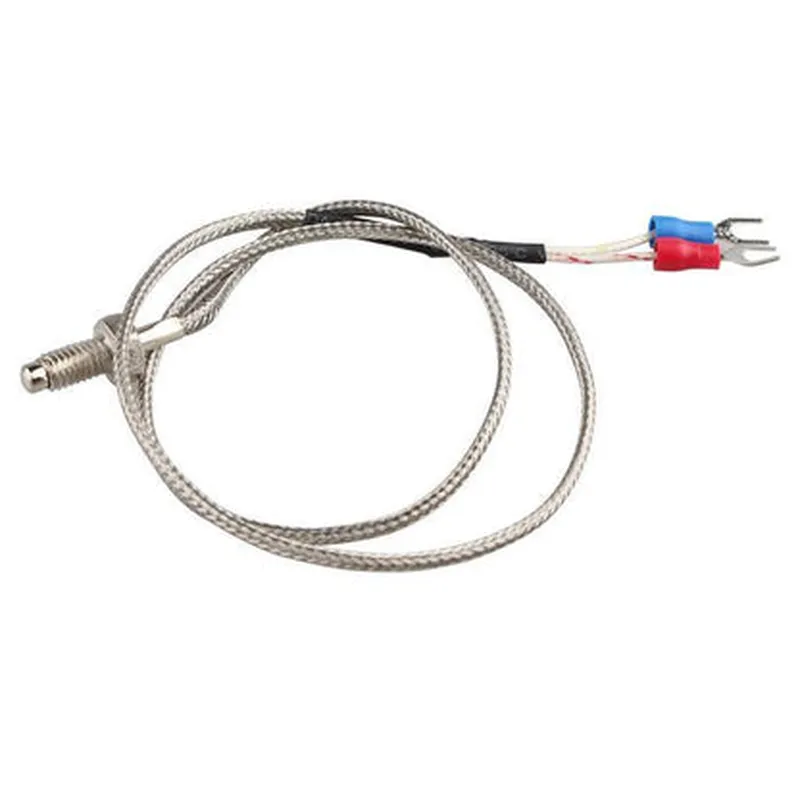

Description: 1. DC Powered Temperature Sensor Module: This set includes a DC powered MAX6675 temperature sensor module that can read temperatures from K-type thermocouples. It operates on a DC supply voltage between 3V and 5V. 2. K-Type Thermocouple Set: Comes with five M6 screwed K-type thermocouples for various temperature measurement applications in industries or hobby projects. The thermocouples are made from Chromel (Noble alloy of Nickel and Chromium) and Alumel (Nickel, Aluminum, and Silicon), ensuring high accuracy and stability. 3. Jumper Wires: Five pairs of jumper wires with a length of about 10 cm are included for easy connection between the temperature sensor module and the thermocouples. The jumper wires have F to F connectors, allowing quick disconnection if needed. 4. Screw Mounting: Each thermocouple comes with an M6 screw thread which makes it simple to mount the sensors on various surfaces for accurate temperature measurements. 5. High Temperature Resistance: MAX6675 IC has
| Specification | Details |
|---|---|
| Specification | Detail |
| Module Type | MAX6675 Digital Thermocouple Amplifier |
| Supply Voltage | 3.0 - 5.0 V DC (Input) 1.8 - 3.6 V DC (Output) |
| Operating Temperature | -20°C to +70°C (Ambient) -200°C to +962°C (Range) |
| Thermocouple Type | K-Type (-260°C to +1260°C) |
| Accuracy | ±1% @ 0°C ±2% @ 100°C ±3% @ 500°C |
| Resolution | 0.25 mV (or 0.001 °C) |
| Conversion Time | ~30 ms (Typical) <40 ms (Maximum) |
| Analog Output | 10-bit Linear Output |
| Digital Interface | SPI (Serial Peripheral Interface) |
| Package Type | Module with Jumper Wires and M6 Screw Mount |
