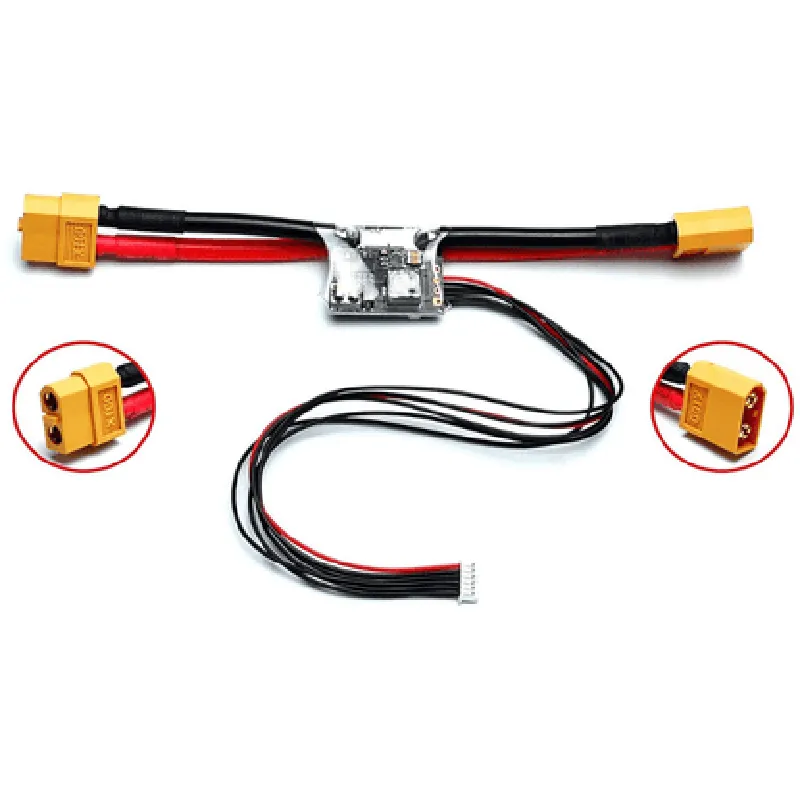

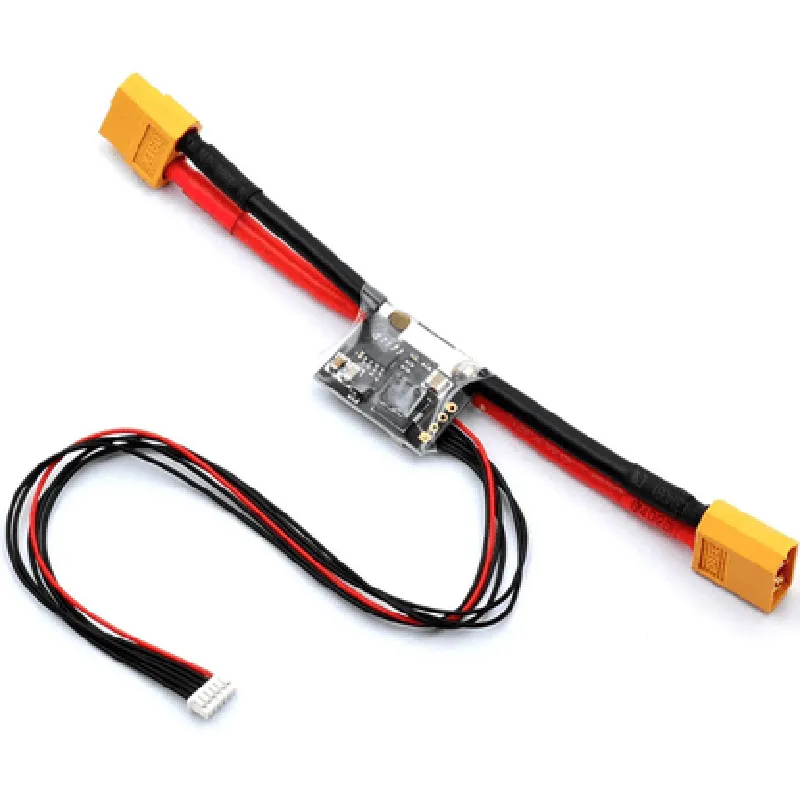

Description: 1. Overview: The 5.3V 3A APM Power Module is a versatile power solution designed for various IoT applications that require constant voltage and stable current. It comes with an XT60 connector, allowing easy integration into systems using this standard connector type. 2. Input Voltage: This module accepts input voltages ranging from 4S to 8S LiPo batteries (11.1V to 22.2V), making it suitable for powering demanding IoT devices and projects. 3. Output Voltage: The APM Power Module provides a constant 5.3 volts output, ensuring stable voltage levels for sensitive electronic components in your IoT setup. 4. Output Current: With a maximum continuous current of 3 Amperes, this module can handle power requirements for most mid-sized IoT projects and devices without compromising performance or stability. 5. Protection Features: Integrated protection functions include reverse polarity prevention, overvoltage protection, and short circuit protection to safeguard your components from potenti
| Specification | Details |
|---|---|
| Input Voltage Range | 6.4-32V (recommended: 7-26V) |
| Output Voltage | 5.3V ±2% |
| Output Current | Up to 3A (3A max 2A recommended) |
| Efficiency | Up to 95% |
| Operating Temperature | -20°C to +75°C |
| Size and Weight | Approximately 50x40x10mm 25g |
| Connector | XT60 connector |
| Certifications | CE FCC RoHS compliant |
