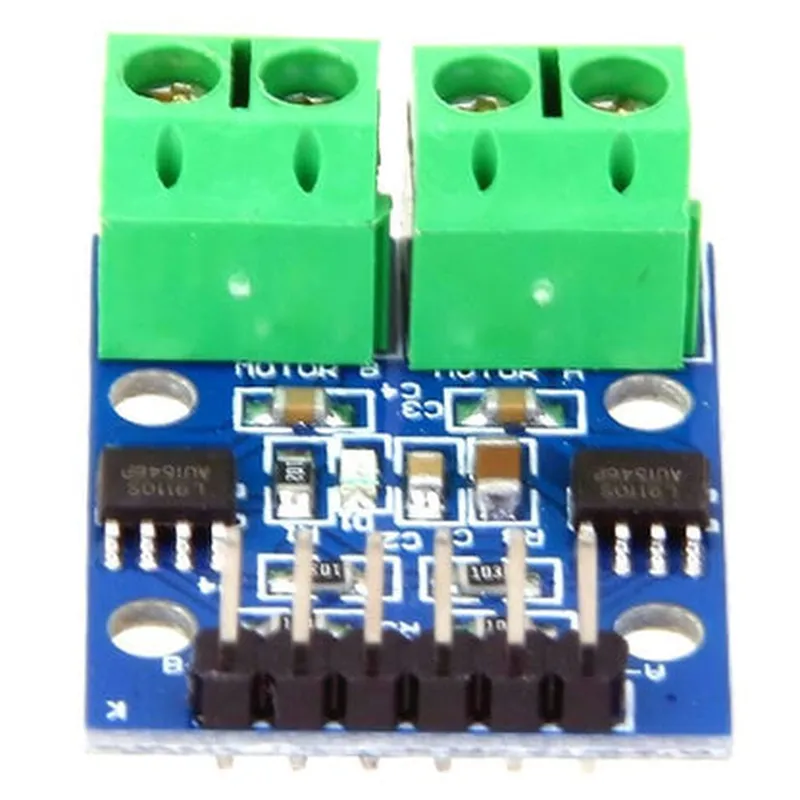

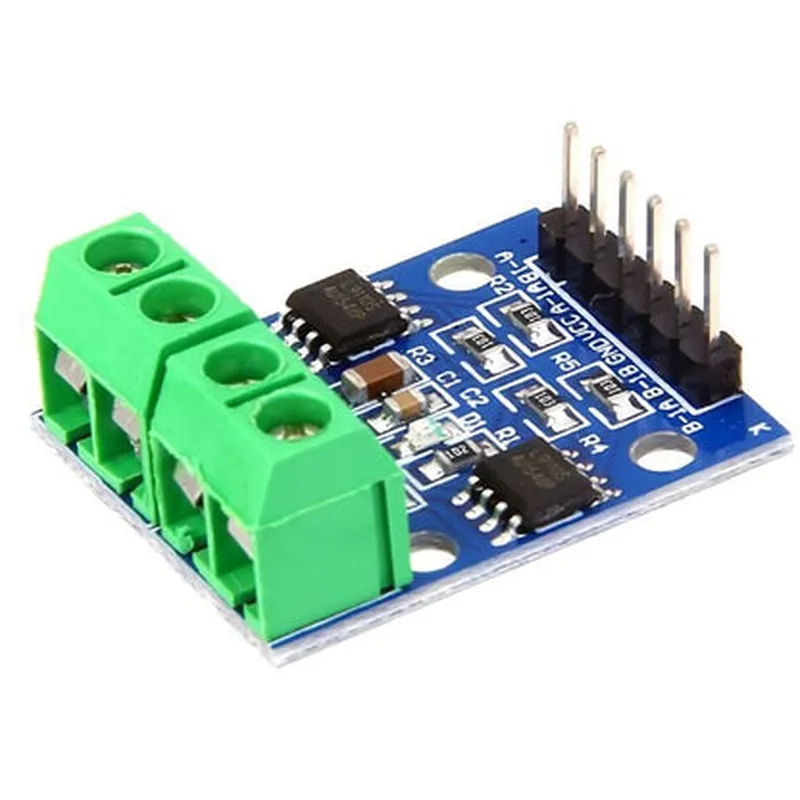

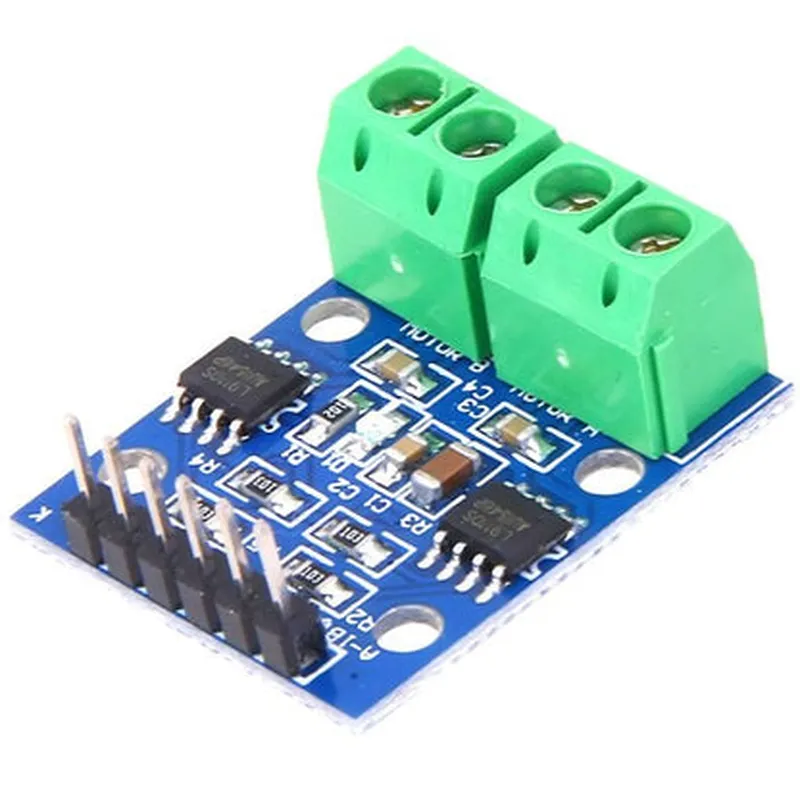

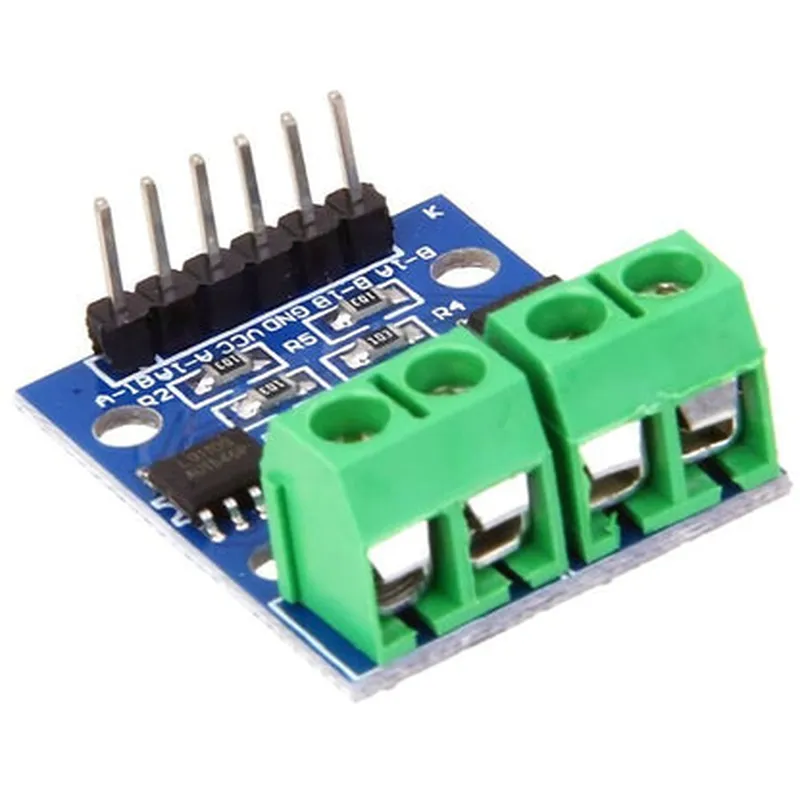

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino

This product is not available in your location yet

Description: 1. The L9110S is a dual Full H Bridge driver module designed for controlling stepper motors using Arduino or other microcontrollers. It supports both unipolar and bipolar stepper motors. 2. Each channel of the module can provide up to 1A continuous current, with a peak current capability of 2A, allowing it to drive various stepper motor sizes. 3. The L9110S features four independent microstepping modes: full-step, half-step, quarter-step, and 1/8th-step modes. These options offer greater precision and finer control over motor movement. 4. Integrated protection circuitry includes overcurrent protection (OCP), overvoltage protection (OVP), and short circuit protection (SCP) to ensure safe operation for the motors and other connected components. 5. The module communicates with the microcontroller via standard digital I/O pins, requiring only three wires for control: IN1, IN2, and EN. 6. It also comes with an optional external heatsink to help dissipate heat generated during continuo

View Technical Documentation

Specification	Details
Specification	Detail
Operating Voltage	4.5V to 18V (single power supply unipolar/bipolar)
Maximum Current per Channel	1A (continuous) 2A (peak 10ms)
Input Logic Level	0-3.3V (LVTTL) 4-5V (5V TTL)
Output Drive Capability	Up to 200 mA at VCC=18V
Stepper Motor Interface Type	Dual H-Bridge with both bipolar and unipolar mode
Microstep Resolution	256 steps per revolution (1/64)
Duty Cycle Control	Built-in PWM duty cycle control (50% to 100%)
Over-Current Protection	Integrated current limiting for each motor channel
Thermal Rating	-20°C to +55°C (operating) -40°C to +85°C (storage)
Package Size	Standard through-hole package
Pinout	8 pins: VCC GND IN1 IN2 OUTA OUTF A+ B+
