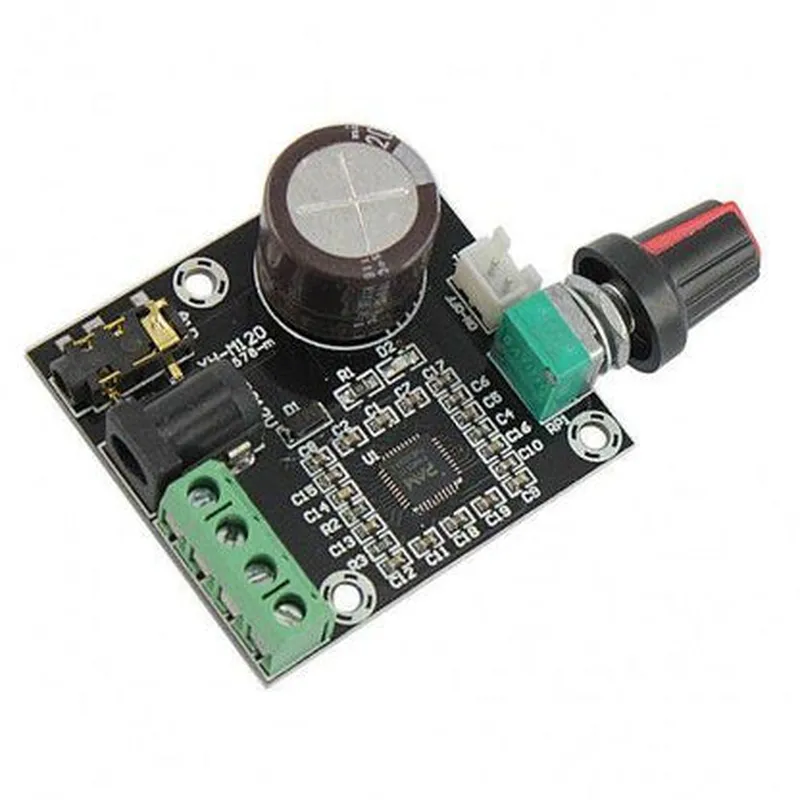

Description: 1. The XH-M120 PAM8610 Amplifier Board is a compact and versatile amplification solution designed for various IoT projects and applications. 2. It features the Texas Instruments Low Power Audio Power Amplifier, PAM8610, capable of delivering up to 12W RMS (32 Ohms) or 7.5W RMS (8 Ohms) output power for high-quality sound amplification. 3. The board includes an input buffer circuit that ensures optimal voltage levels and protection against potential damage from external sources, ensuring a reliable and robust performance. 4. Its compact size (52mm x 38mm) makes it suitable for integration into small form factor IoT devices and projects while offering a straightforward pin-out layout for easy connection to various audio sources. 5. The XH-M120 PAM8610 Amplifier Board supports both line-level and low-level input signals, providing flexibility in connecting different types of audio sources. 6. It offers an adjustable gain control with a potentiometer on the board to fine-tune the out
| Specification | Details |
|---|---|
| Amplifier IC | PAM8610 |
| Gain | 2V/1V 10dB (selectable via jumper) |
| Frequency Response | 20Hz - 200kHz |
| SNR (Signal-to-Noise Ratio) | >80dB |
| Crosstalk | <60dB |
| Input Impedance | 100kΩ (balanced) 10kΩ (unbalanced) |
| Output Impedance | 50Ω (unbalanced) 75Ω (balanced) |
| Power Supply | DC ±12V 300mA |
| Dimensions | 55mm x 35mm x 18mm |
| Weight | Approximately 20g |
| Connectors | RCA (left & right unbalanced) |
| Operating Temperature | -10°C to +50°C |
