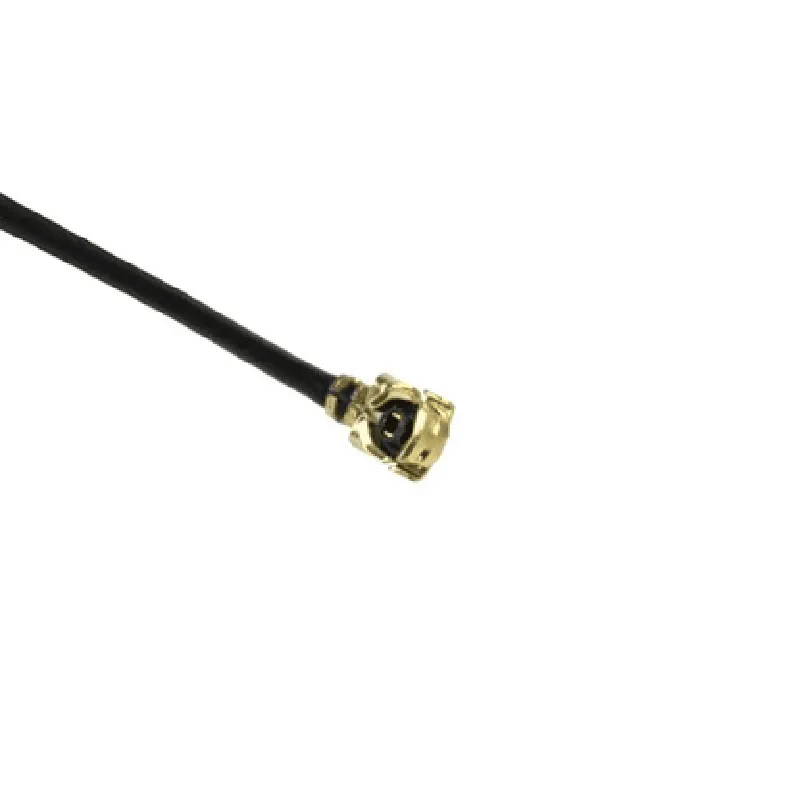

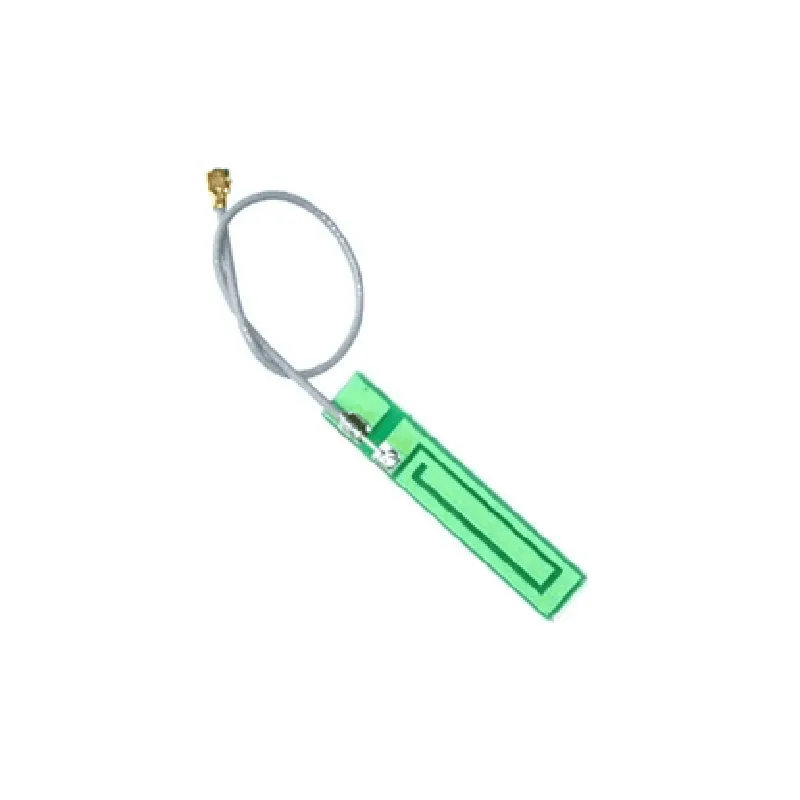

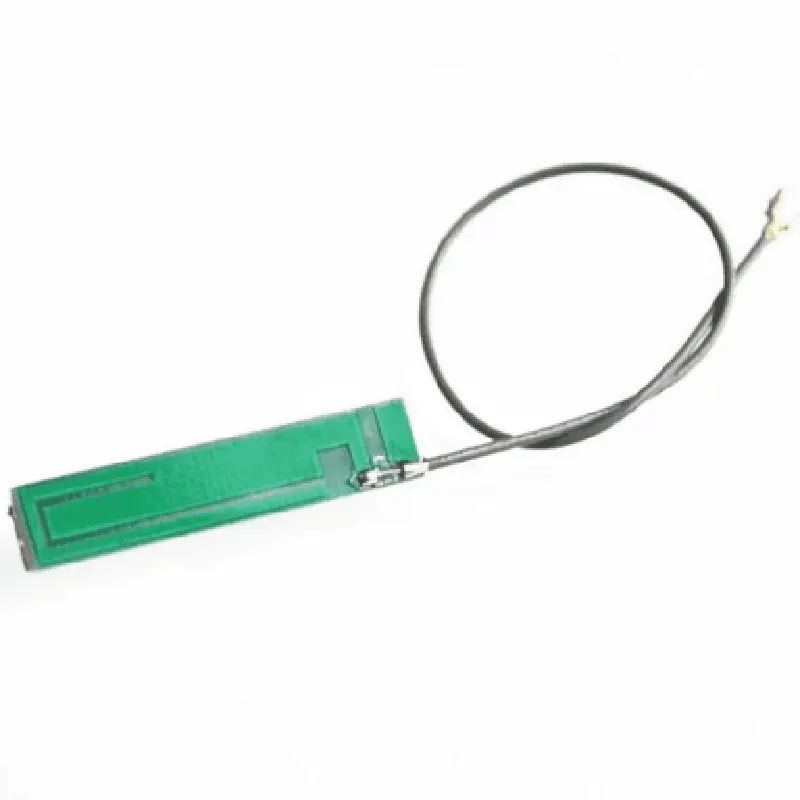

Description: 1. The 3DBI GSM/GPRS/3G PCB Antenna is a compact, high-performance antenna designed for use in IoT, M2M, and wireless communication applications. It features three directional elements (3dBi) integrated into a single printed circuit board (PCB) antenna. 2. Frequency Range: This antenna supports global frequencies for GSM (850/900/1800/1900 MHz), GPRS (900/1800/1900 MHz), and 3G (2100 MHz) networks. 3. IPEX Connector: The antenna comes with an integrated IPEX connector, which offers a reliable and secure connection to various RF devices such as wireless modules or gateways. 4. Polarization: Featuring three dipole elements in a 3dBi configuration, the antenna supports omnidirectional radiation pattern for horizontal polarization, ensuring broad coverage and robust signal reception. 5. Size & Weight: With dimensions of approximately 72mm x 40mm x 2.2mm (2.83 in x 1.57 in x 0.09 in) and a weight of around 4.6g (0.16 oz), this antenna is compact and lightweight, suitable for various Io
| Specification | Details |
|---|---|
| Frequency Range | 800 MHz - 2100 MHz (Quad-Band) |
| Gain | 3 dBic (Isotropic Equivalent) |
| Polarization | Linear |
| Impedance | 50 Ohms |
| Connector Type | IPEX MHF4 |
| VSWR | ≤ 2:1 |
| Operating Temperature | -40°C to +85°C |
| Humidity | Up to 95% (Non-Condensing) |
| Size and Thickness | Typically 10 x 15mm 0.8mm thick |
| Mounting Style | Surface Mount |
| Material | High-quality FR4 PCB material |
| RoHS Compliance | Compliant with EU RoHS Directive |
