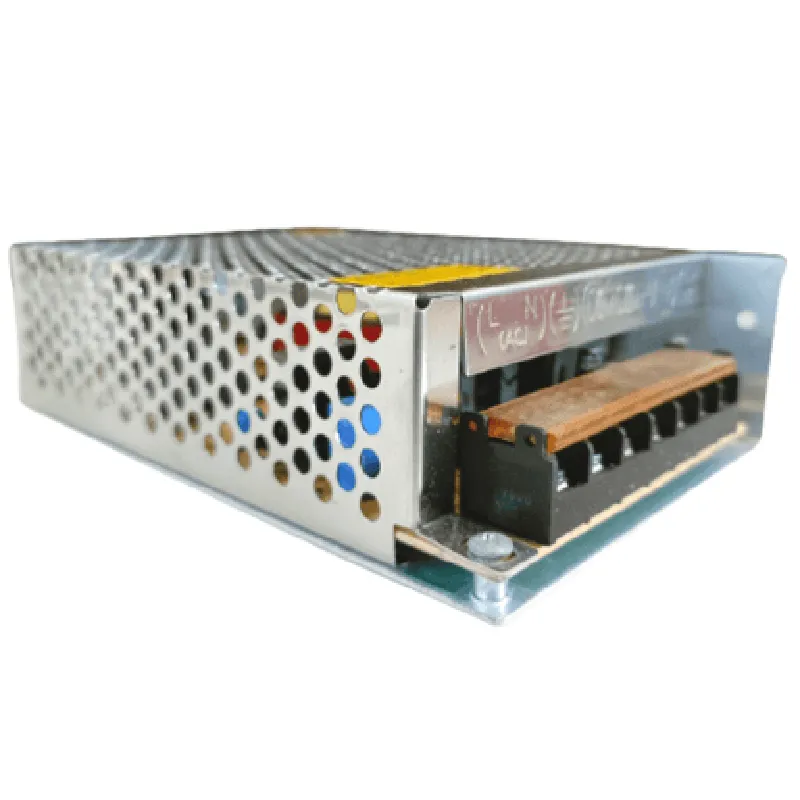

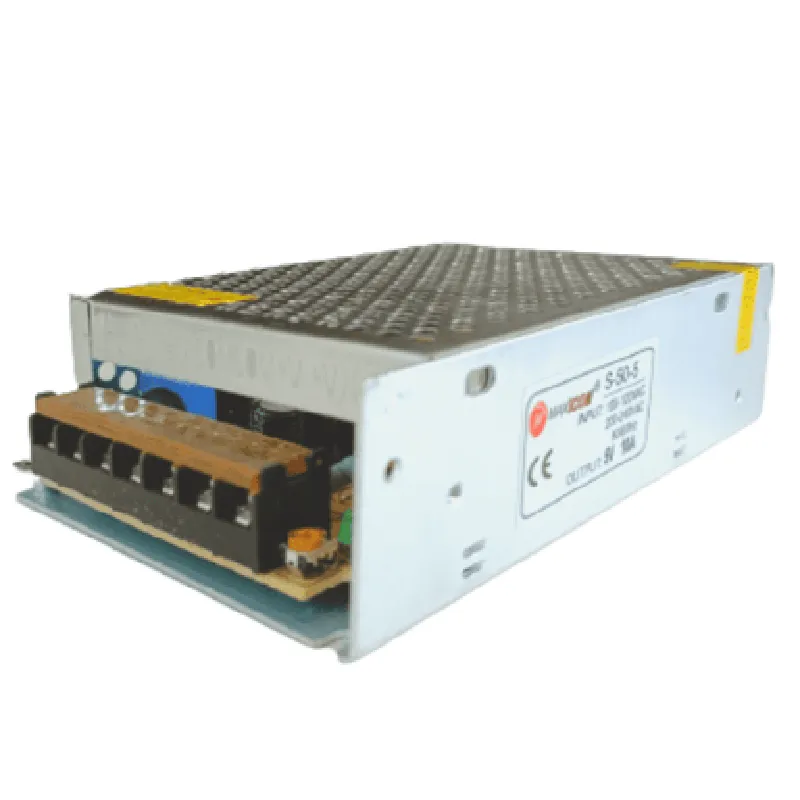

5V 10A SMPS Power Supply

Stufin

5V 10A SMPS Power Supply

This product is not available in your location yet

Description: 1. Power Output: This 5V, 10A Switching Mode Power Supply (SMPS) delivers a maximum continuous output power of 50 watts, suitable for powering multiple IoT devices or a single high-power device. 2. Input Voltage: It accepts an input voltage range of 90V to 265V AC, making it adaptable to various power grid conditions worldwide. 3. Efficiency: With an efficiency level of up to 85%, this SMPS reduces energy loss and ensures stable performance, contributing to cost savings and reduced carbon footprint. 4. Overload Protection: Built-in overload protection automatically shuts down the power supply when it senses excess current demand, preventing potential damage to connected devices. 5. Short Circuit Protection: The SMPS features short circuit protection that safeguards against accidental connections and ensures safe operation for users and connected components. 6. Isolation: The transformer-based isolation design separates the high voltage input from the low voltage output, providing

View Technical Documentation

Specification	Details
Input Voltage Range	85-265V AC
Output Voltage	5V DC
Output Current	10A (Maximum)
Efficiency	>80% (Typical)
Power Rating	50W
Input Frequency	47-63 Hz
Protection Features	Overcurrent Overvoltage Short-Circuit
Isolation	2kV AC (Minimum)
Operating Temperature	-10°C to +40°C
Certifications	UL (Underwriters Laboratories) CE
Dimensions	3.5 x 2.2 x 1.2 inches
Weight	approximately 8 oz
