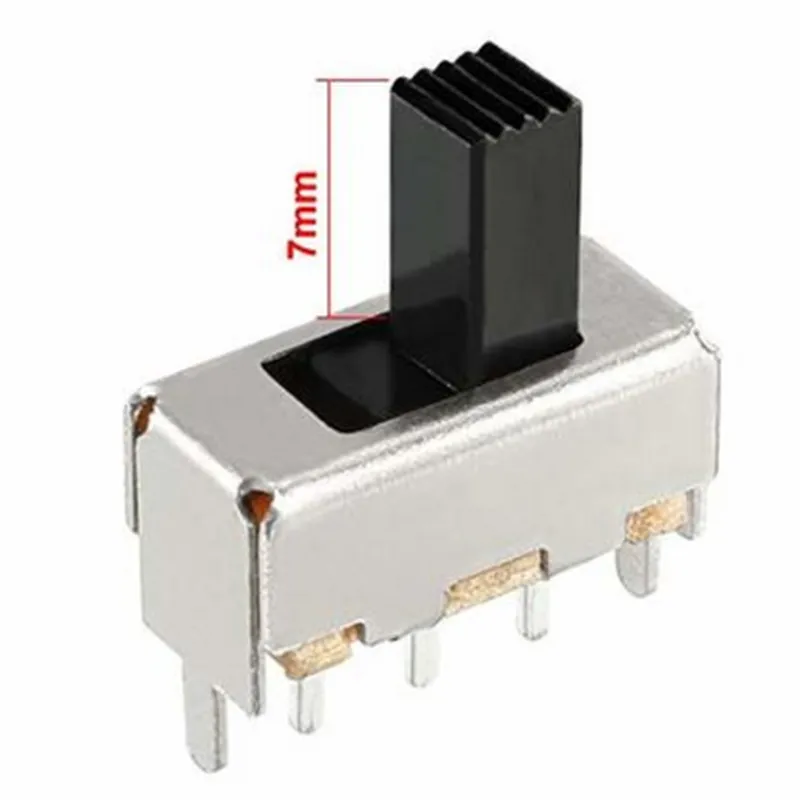

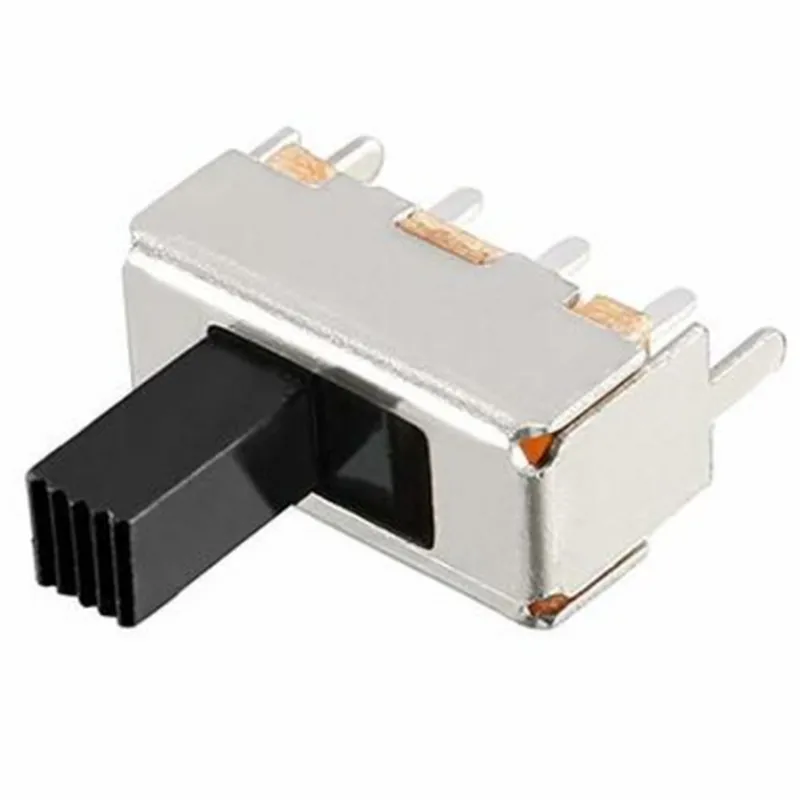

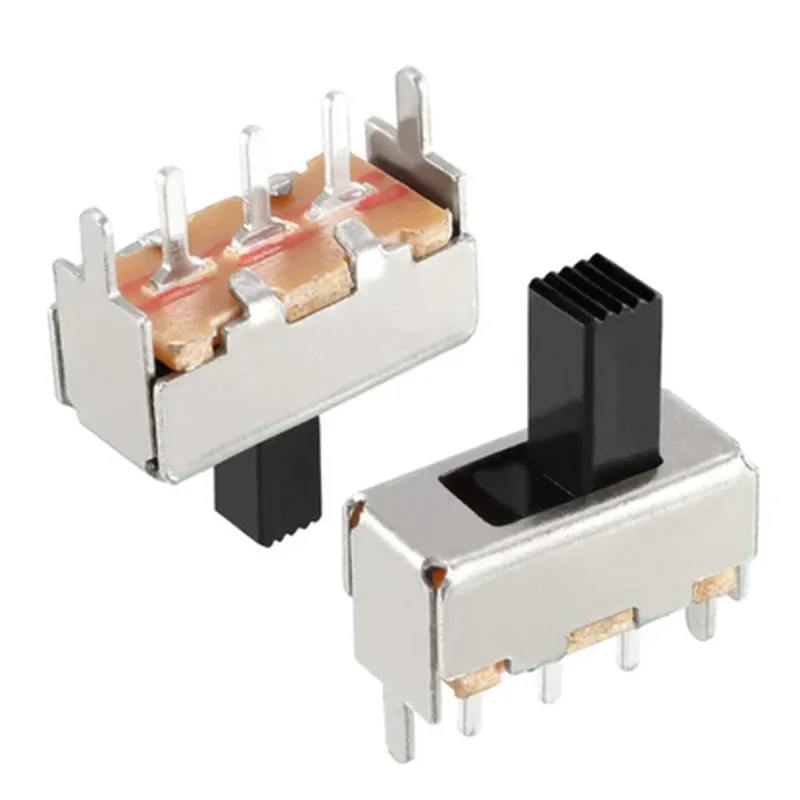

Description: 1. A Slide Switch 3 Pin 2 Way SPDT (Single Pole Double Throw) is an electric switch with three terminals designed to operate two independent circuits using a single actuator. 2. Features: Three connection terminals for input and two separate output circuits, allowing independent control of two devices. Smooth sliding action for easy operation, available in various mounting styles (panel or PCB). 3. Use Cases: Ideal for controlling two separate loads with one switch, such as heating and air conditioning systems, electric water heaters, or appliances requiring both on/off switching and remote control. 4. Versatility: Available in various configurations including single-pole double-throw (SPDT), double-pole single-throw (DPST), and double-pole double-throw (DPDT) types to suit different applications. 5. Safety: Complies with safety standards for voltage, current, and insulation ratings. Suitable for low voltage direct current (DC) or alternating current (AC) circuits based on specifi
| Specification | Details |
|---|---|
| Switch Type | Single Pole Double Throw (SPDT) |
| Pins | 3 pins through-hole mounting |
| Terminals | Common (C) Normally Open (NO) and |
| Contact Material | Gold-plated brass |
| Operating Voltage | Up to 250V AC or DC |
| Current Rating | Up to 10A AC or 16A DC |
| Life Expectancy | Minimum 5000 cycles |
| Temperature Range | -20°C to +80°C |
| Dimensions (mm) | Length: 15.5 Width: 6.2 Height: 8.1 |
| Weight (g) | Approximately 4 grams |
