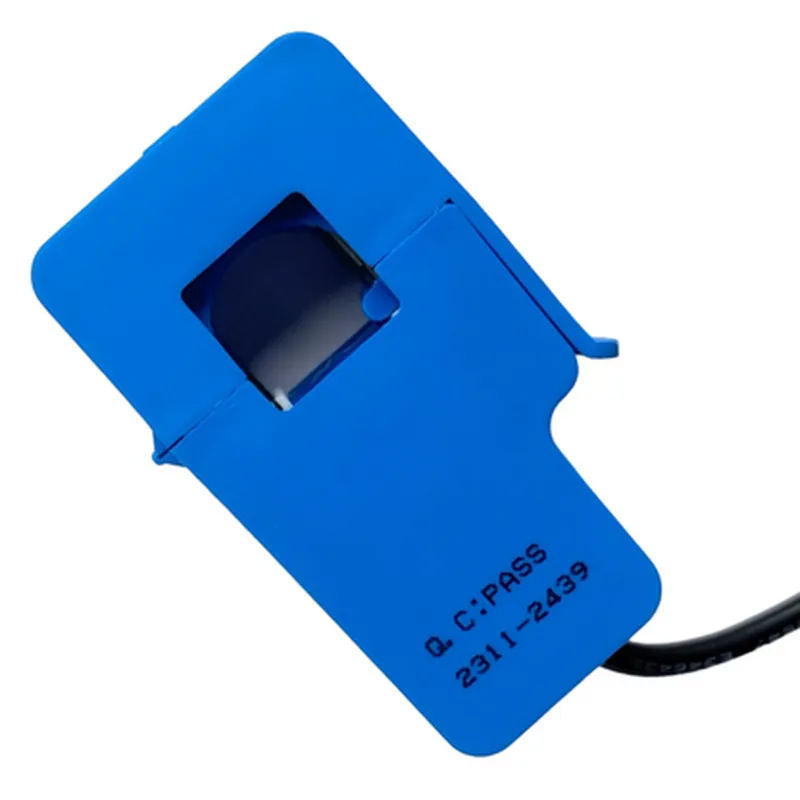

Description: 1. The 100A YHDC is a non-invasive AC current sensor designed for monitoring electrical current up to 100 Amperes with an accuracy of ±3%. 2. Design: Its compact, lightweight, and robust design allows easy installation in various applications without disrupting power lines or requiring extensive wiring modifications. 3. Operating Principle: Utilizing the principle of mutual induction, this sensor measures current flow by detecting the magnetic field generated by conductors carrying an electric current. 4. Digital Output: It provides a digital output in the form of pulse-per-ampere (PPA) or pulse-per-watt (PPW) signals, which can be easily integrated into various data acquisition systems and controllers. 5. Measuring Range: This sensor is suitable for applications with single-phase electrical loads, covering a current range from 0 to 100 Amps. 6. Isolation & Safety: The YHDC features high input impedance and optical isolation, ensuring safe operation in potentially hazardous envir
| Specification | Details |
|---|---|
| Current Range | 0-100A (AC) |
| Measurement Accuracy | ±1% |
| Output Signal | Analog voltage output (0-5V) |
| Sensitivity | 2mV/A |
| Operating Frequency | 50/60Hz |
| Power Supply | DC 3.3V to 5.5V |
| Dimension | 45 x 25 x 15mm |
| Weight | 20g |
| Operating Temperature | -40°C to 85°C |
| Certifications | CE FCC |
| Interface | Analog (0-5V) and digital (I2C/TWI) |
| Sampling Rate | Up to 1000Hz |
