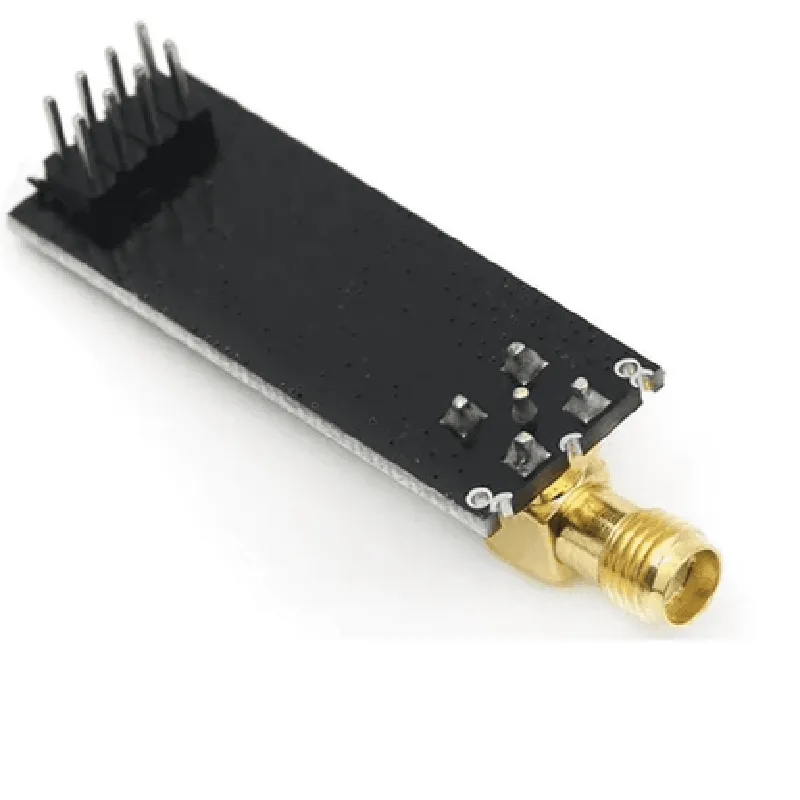

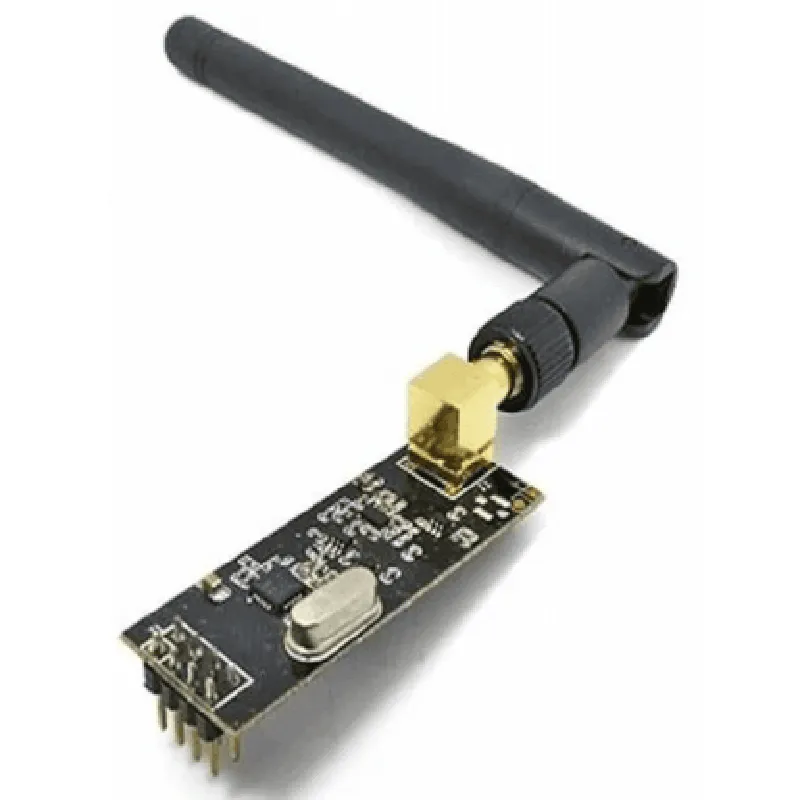

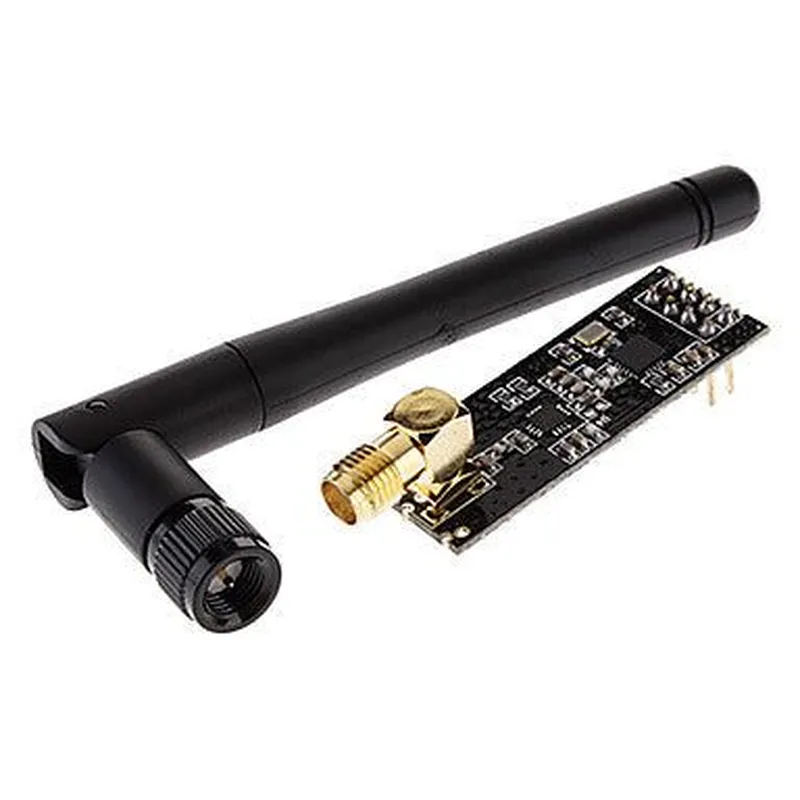

Description: 1. NRF24L01+PA+LNA is a wireless transceiver module based on Nordic Semiconductor's nRF24L01+ microcontroller, featuring Power Amplifier (PA) and Low Noise Amplifier (LNA). 2. It operates in the 2.4GHz ISM band, allowing for a wide range of applications without requiring an FCC or CE license. 3. The module features a max data rate of 250 kbps and supports both 2 Mbit/s and 1 Mbit/s data transfer rates. 4. Integrated PA allows for up to +2dBm output power, while the LNA increases receiver sensitivity by up to 8dB, improving overall range and reliability. 5. Features multiple communication modes like Pipe1, Pipe0, RX_MODE, TX_MODE, and Power Down mode for low-power applications. 6. Compatible with popular microcontrollers such as Arduino, PIC, AVR, etc., thanks to its SPI and CE interfaces. 7. The module supports up to 6 unique addresses for communication between multiple NRF24L01+ modules in a network. 8. Features an on-chip clock and low power consumption (~5mA @ 3.3V) for batt
| Specification | Details |
|---|---|
| Chip Type | NRF24L01+ (2.4 GHz 2 Mbps) |
| Frequency Range | 2400 MHz to 2483.5 MHz |
| Data Rate | 250 kbps to 1 Mbps |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Sensitivity | -94 dBm @ 1 Mbps |
| Output Power | +20 dBm |
| Range | Up to 1000 ft (300 meters) |
| Supply Voltage | 1.9V to 3.6V |
| Current Consumption | 10 mA @ 1 Mbps 12 mA @ 2 Mbps |
| Package Type | QFN-16 (8x8mm) TSSOP-16 |
| Dimensions | 4.9 x 3.7 mm |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -55°C to +150°C |
