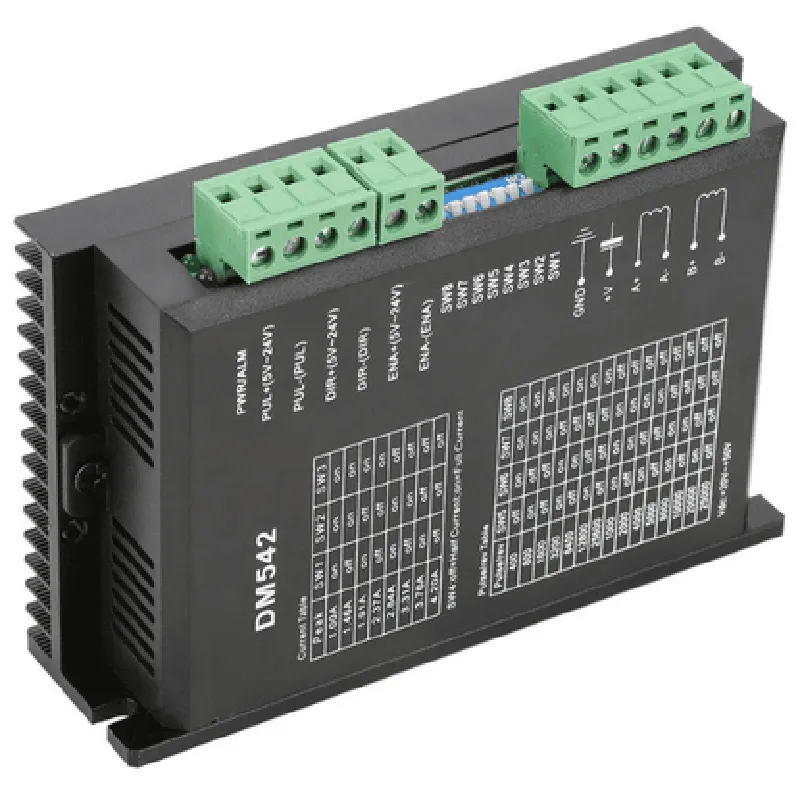

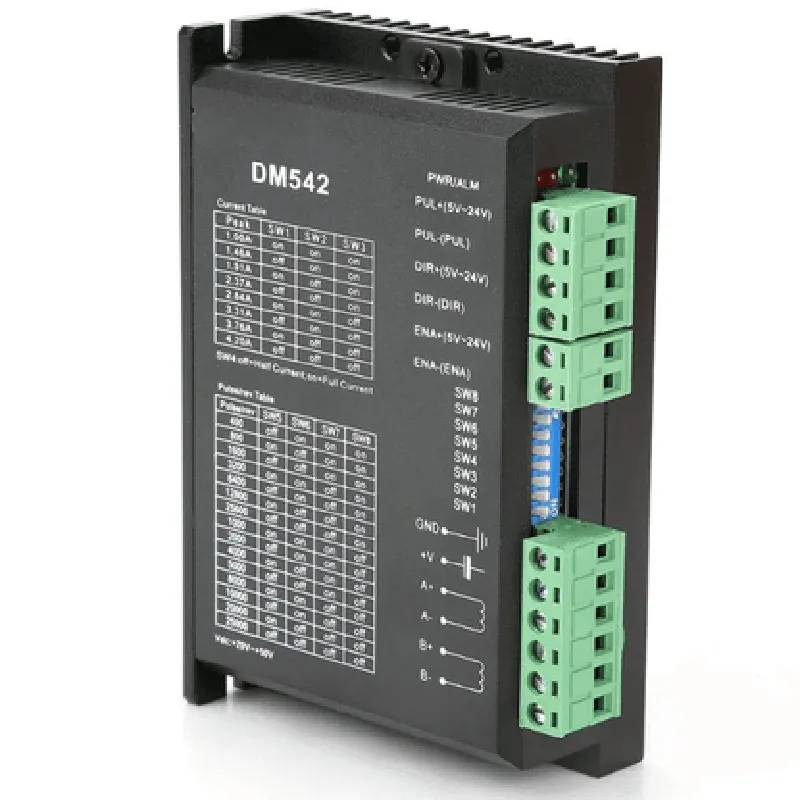

Description: 1. Features: DM542 is a micro-step digital stepper motor driver designed for CNC machines, 3D printers, and other automation projects. It supports both unipolar and bipolar stepper motors, with adjustable current limiting up to 2A per phase. 2. Compatibility: This driver is compatible with various controller boards like Arduino, Raspberry Pi, and GRBL, making it a versatile option for various DIY projects. It also supports micro-stepping modes from 1/32 to full step. 3. Ease of Use: The DM542 comes with an intuitive interface that allows easy configuration through potentiometers. It features an LCD display, LED indicators for each phase, and a selectable operating mode (trapezoidal or vector control). 4. Safety Measures: To ensure safety during operation, it includes over-current protection, thermal shutdown, and over-temperature protection mechanisms. The driver is also CE certified and RoHS compliant. 5. Versatility: Suitable for various motor types (3-phase or 4-phase), voltage
| Specification | Details |
|---|---|
| Driver Type | Digital Stepper Motor Driver |
| Control Mode | CNC 3D Printer Accessories |
| Input Voltage | 10-35V DC |
| Output Current | Up to 2A per channel (peak) |
| Motor Interface | 4-wire Step/Dir |
| Step Mode | Full-step Half-step Microstep |
| Resolution | 256 microsteps per step (configurable) |
| Driver IC | DM542 |
| Operating Temperature | -20°C to 85°C |
| Dimensions | 60mm x 50mm x 20mm |
| Weight | approximately 80g |
| Mounting | PCB mount screw holes for panel mounting |
| Protection Features | Overcurrent protection short-circuit protection |
| Operating System Compatibility | Windows macOS Linux |
