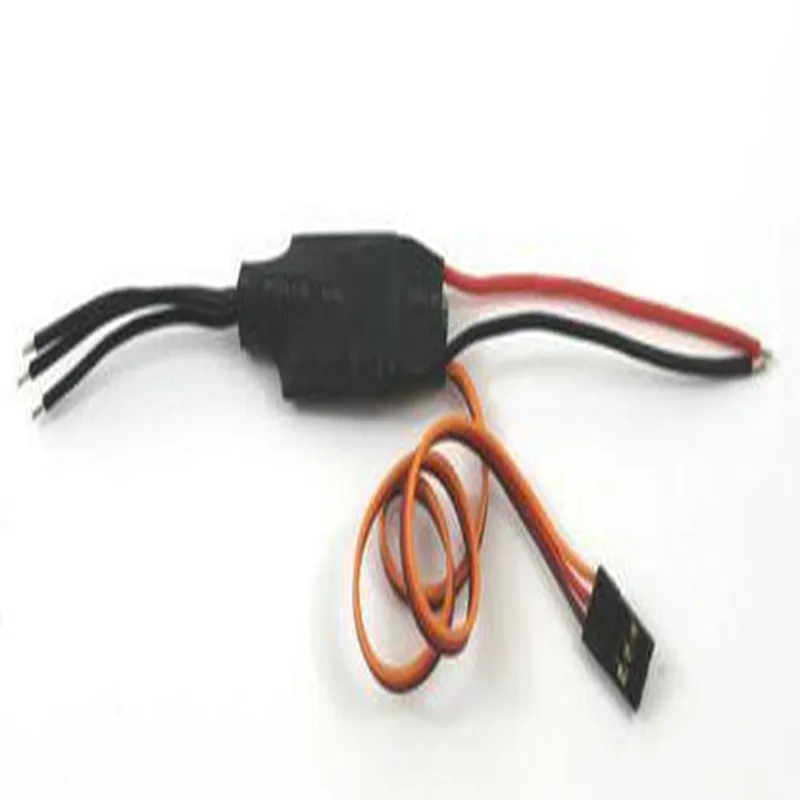

Description: 1. Overview: The SimonK ESC 12A is a high-performance, open-source Electronic Speed Controller (ESC) designed for powering brushless motors in drones, quadcopters, or RC cars. It supports up to 12Amps continuous current and comes with various features for efficient motor control. 2. Open-Source Software: The SimonK ESC firmware is open-source and allows users to customize settings through the Blheli Suite software. This provides advanced tuning capabilities, making it suitable for hobbyists and professionals alike. 3. Flexible Configuration: The ESC can be configured with various motor types, including multirotor, heicopter, and car configurations, enabling it to work seamlessly across various applications. 4. Current Sensing: It features built-in current sensing capability for monitoring the real-time power consumption of each motor, which is essential for battery management and optimizing performance. 5. PWM Input: The SimonK ESC 12A accepts PWM input signals from RC receivers w
| Specification | Details |
|---|---|
| Brand | SimonK |
| Model | ESC 12A |
| Maximum Current | 12A |
| Operating Voltage | 2-6S (7.4V-22.2V) |
| Cell Count Range | 2-6 Cells |
| BEC Output Voltage | 5V (regulated) |
| Connectors | Screw terminals 3-pin JST-XH |
| Weight | Approximately 23 grams |
| Dimensions | 36mm x 20mm x 10mm |
| Operating Temperature | -40°C to 85°C |
