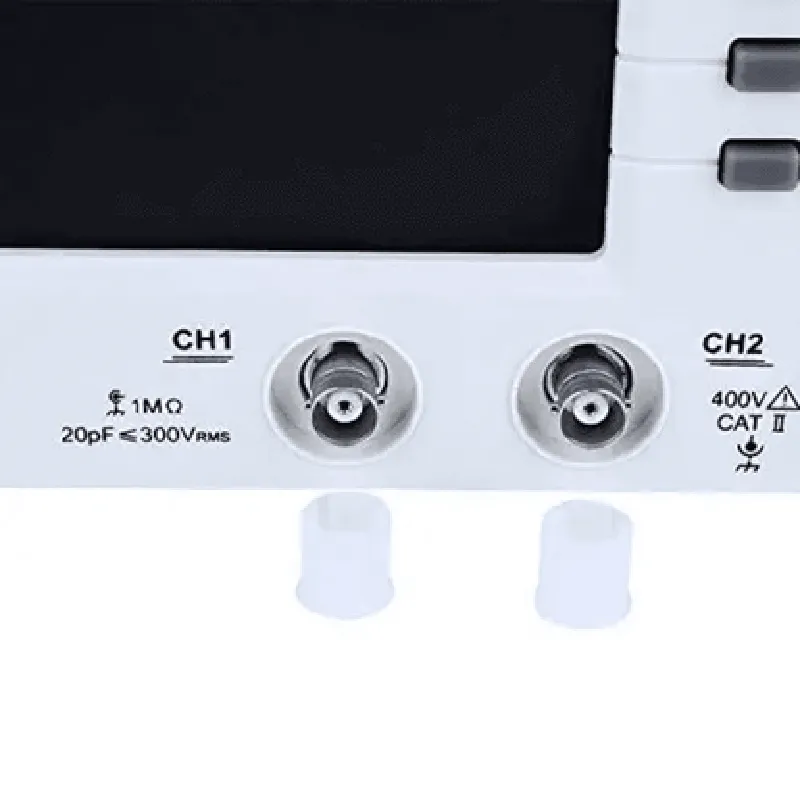

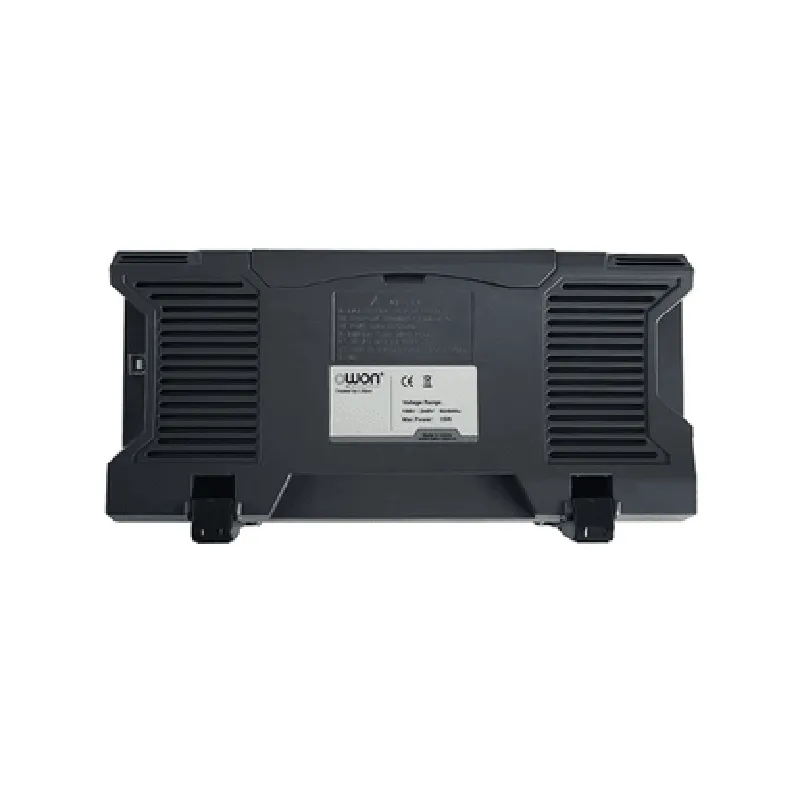

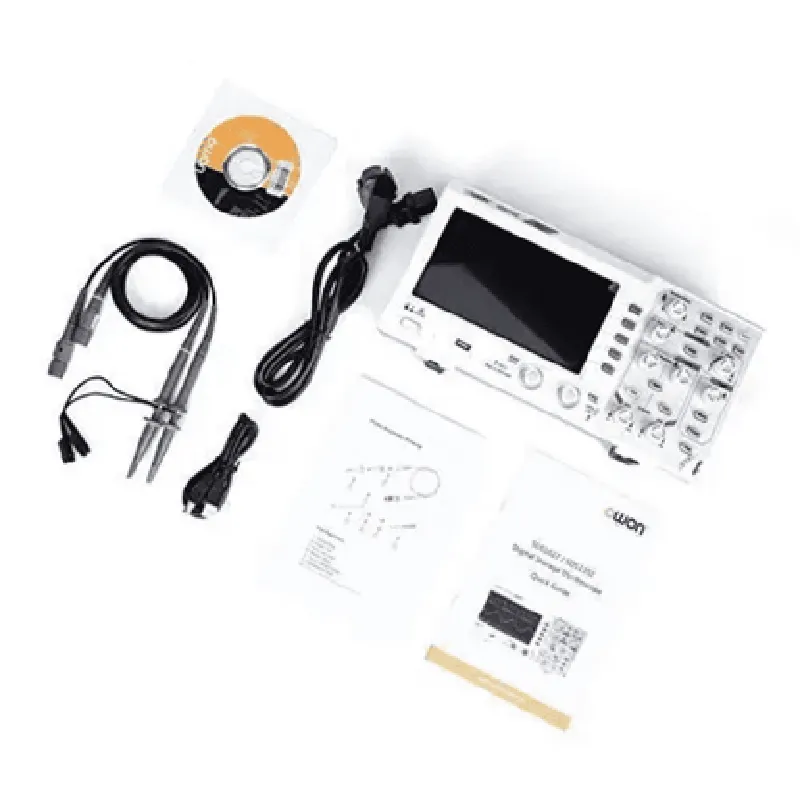

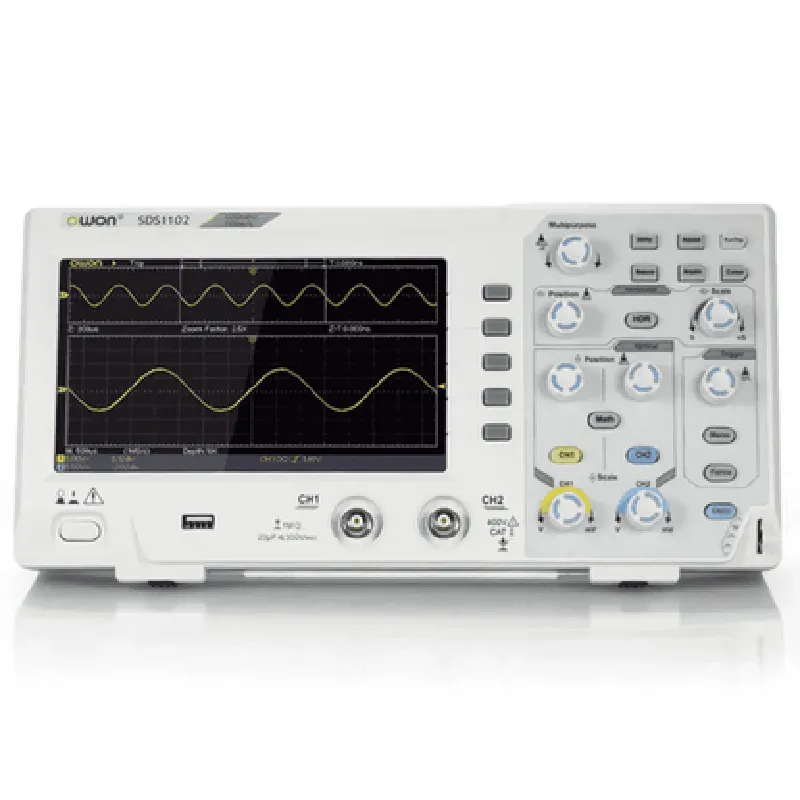

Description: Owon SDS 1102: 100 MHz Digital Storage Oscilloscope 1. Versatile: Supports automated measurement functions, markers, cursors, and math calculations for precise analysis of signals in various industries, including automotive, education, manufacturing, and research. 2. High-Performance: 100 MHz bandwidth with up to 8Mpts memory depth enables capturing and analyzing high-speed signals and complex waveforms with ease. 3. Intuitive Interface: Features a large, 7" TFT color LCD screen for clear visibility of waveform data, real-time display, and menus for easy setup and configuration. 4. Advanced Triggering: Offers multiple trigger sources (edge, pulse width, video) with adjustable settings for precise signal capture and accurate analysis. 5. Built-in Functions: Includes 26 mathematical functions for advanced analysis, automatic measurements, and customizable data formatting options (ASCII/Hex). 6. Connectivity: Compatible with various probes and interfaces, such as USB, LAN, GPIB, and RS2
| Specification | Details |
|---|---|
| Input Channels | 2-channel 4-channel (with option) |
| Bandwidth | 100 MHz |
| Sampling Rate | Up to 1 GS/s |
| Memory Depth | 28 Mpts / Channel |
| Waveform Display | Analog-like waveform display |
| Trigger Type | Edge Pulse Width Runt Slope |
| Trigger Level | ±200 mV (50 Ohms) |
| Trigger Delay | 0.1 μs - 100 ms |
| Time Base Range | 5 ns/div - 10 s/div |
| Voltage Range | ±200 V (50 Ω) ±100 V (1 MΩ) |
| Resolution | 8-bit ADC |
| Measurement Functions | Frequency Period Pulse Width |
| Interface | USB RS-232 |
| Power Supply | 100 - 240 VAC 50/60 Hz |
| Dimensions | 380 x 220 x 150 mm (without cart) |
| Weight | 4.8 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
