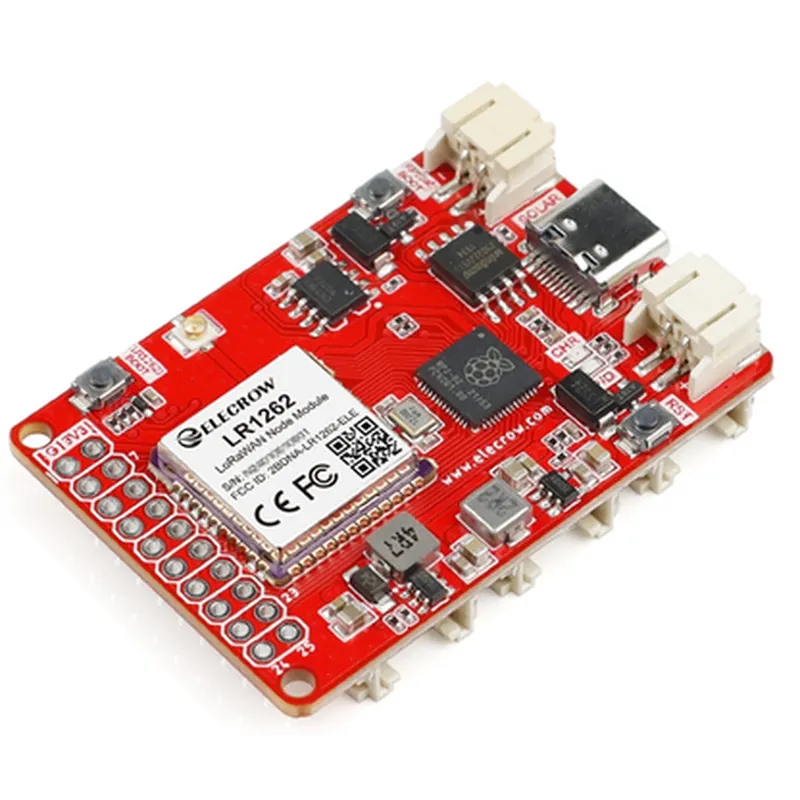

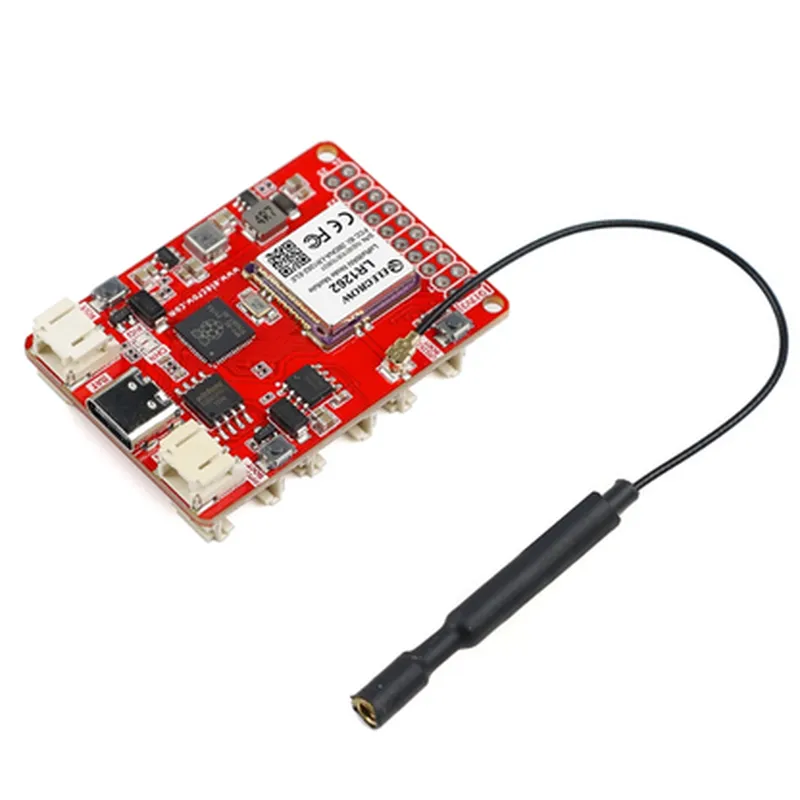

Description: 1. ELECROW LR1262 is a LoRaWan node module designed for long-range communication using the 868Mhz (Europe) or 915Mhz (US) frequency band. It's an ideal solution for building Internet of Things (IoT) projects that require long-range and low-power wireless communication. 2. Features: This node board includes a built-in LoRa transceiver, providing an operating range of up to 5 miles in urban areas and up to 15 miles in rural environments. It also has a micro-USB port for power supply and programming, I/O pins for sensor connection, and a reset button. 3. Compatibility: The LR1262 node board is compatible with the Arduino platform, making it easy to integrate with existing Arduino projects or create new ones using popular development environments like the Arduino IDE. 4. Easy Integration: With its simple and straightforward design, this module can be easily integrated into various IoT applications such as smart agriculture, asset tracking, city lighting control, and more. It also suppo
| Specification | Details |
|---|---|
| Frequency | 868 MHz (Europe) / 915 MHz (North America) |
| Modulation | LoRaWAN (Long Range Wide Area Network) |
| Data Rate | Up to 27 kbps |
| Range | Up to 15 km (9 miles) |
| Power Consumption | 12.5 mA @ 3.3V 10 dBm Tx Power |
| Operating Voltage | 3.0 V - 3.6 V |
| Memory | 512 KB Flash 96 KB SRAM |
| Interface | UART SPI I2C GPIO |
| Dimensions | 52 x 26 mm |
| Weight | 18g |
| Operating Temp. | -20°C to +60°C |
