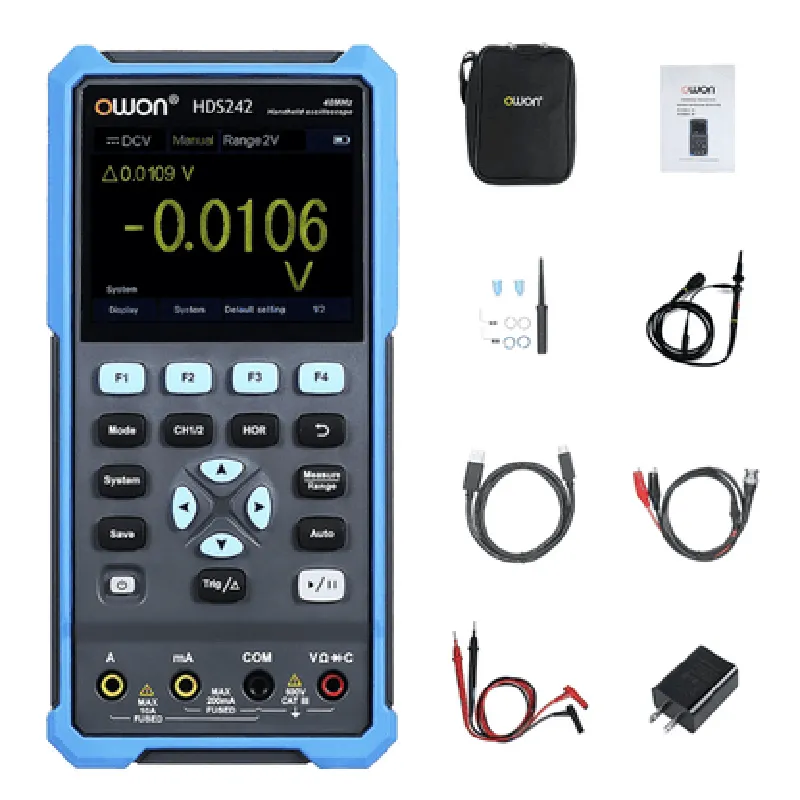

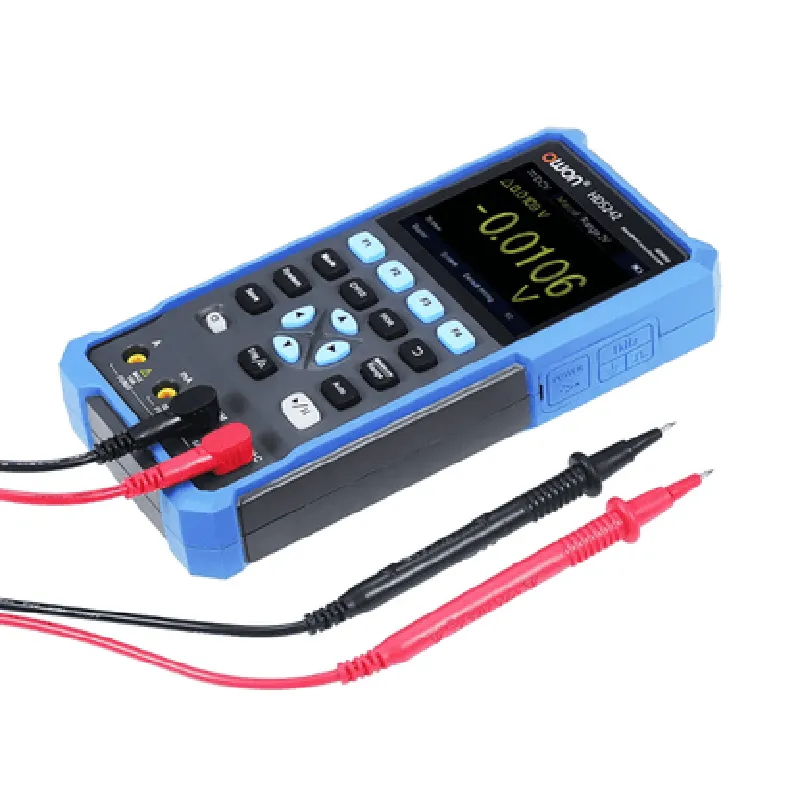

Owon HDS242 40 MHz Handheld Digital Multimeter

This product is not available in your location yet

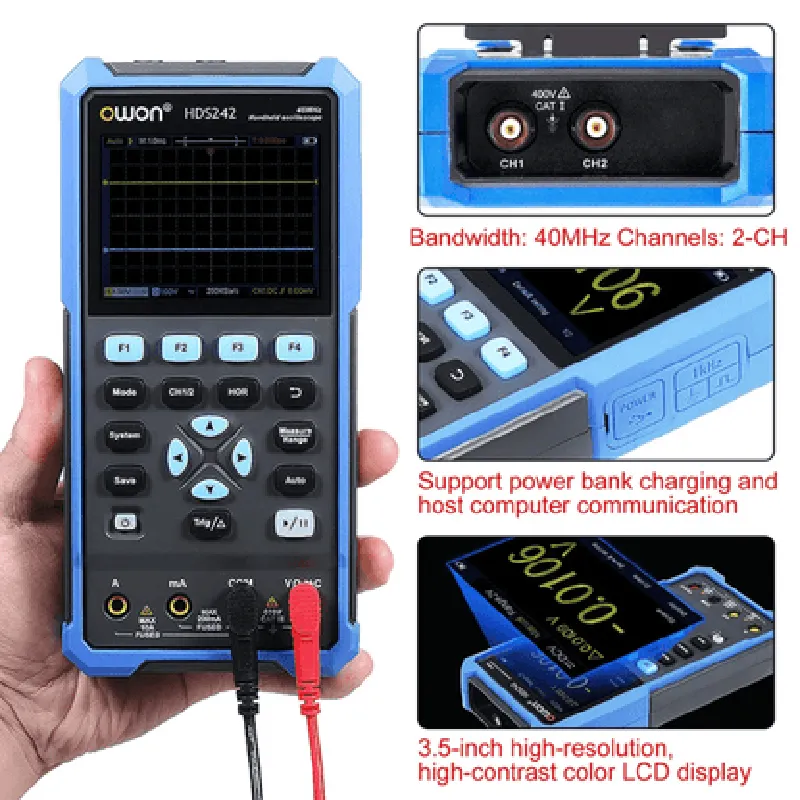

Description: 1. Versatile Digital Multimeter: The Owon HDS242 is a handheld digital multimeter (DMM) offering various measurement functions, including voltage, current, resistance, capacitance, frequency, and temperature. 2. High Measuring Frequency: With a measuring frequency of up to 40 MHz, this DMM excels in testing high-speed electronic circuits and communication lines such as USB, LAN, and Bluetooth. 3. Wide Voltage Measuring Range: The HDS242 supports a wide voltage measurement range from DC 50 mV to AC/DC 1000 V, making it suitable for testing low voltage signals in electronic circuits and high voltage power supplies. 4. High Accuracy: Featuring an accuracy of ±(0.3%+3 digits), this DMM ensures precise measurement results for both professional applications and hobbyist projects. 5. Data Hold Function: Users can temporarily store measurement values using the Data Hold function, allowing for easy comparison with previous readings or sharing of test results. 6. Automatic Power Off: To pr

View Technical Documentation

Specification	Details
Measurement Range	DC Voltage: 400mV to 1000V; AC Voltage: 300mV to 750V; DC Current: 3μA to 10A; Resistance: 30Ω to 40MΩ; Frequency: 1Hz to 40MHz
Measurement Accuracy	±0.5% of reading (DC voltage DC current); ±2% of reading (AC voltage resistance)
Display	320x240 color LCD with backlight
Resolution	3.5 digits
Scan Function	Yes; Auto-ranging and manual range selection
Data Hold	Yes
Min/Max	Yes; stores up to 100 sets of min/max values
Temperature	-10°C to 40°C
Battery Life	Up to 24 hours with alkaline batteries
Dimensions	168mm x 69mm x 32mm
Weight	260g
