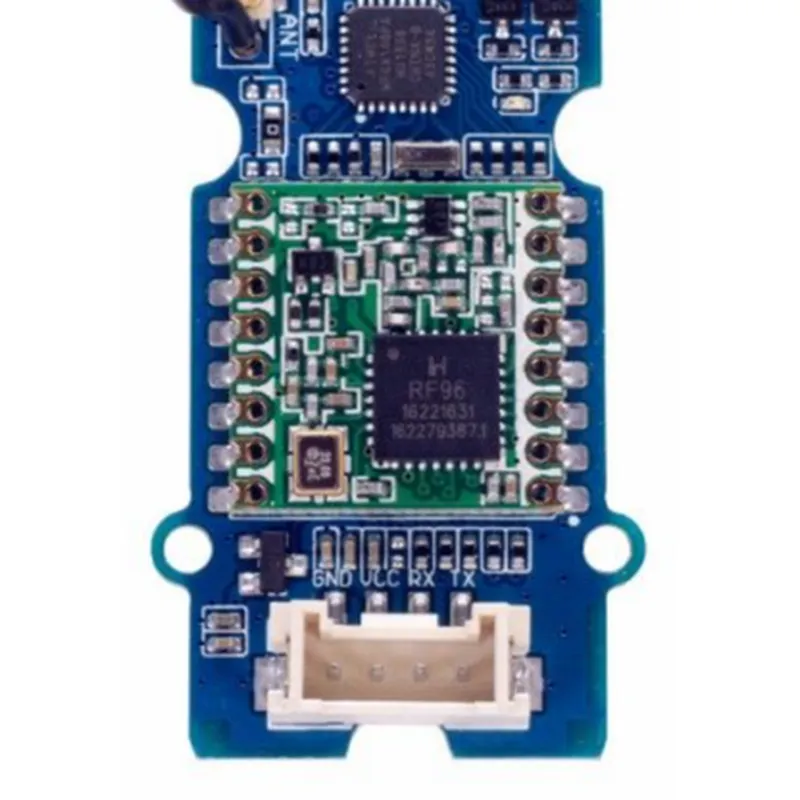

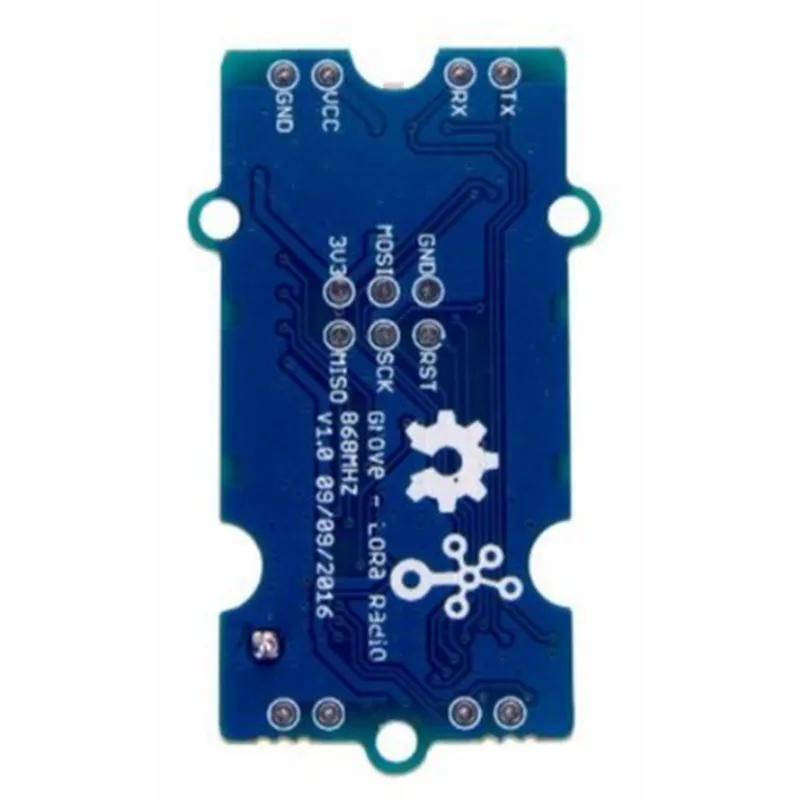

Grove - Long Range Radio 868MHz RFM95 LoRa Module

Stufin

Grove - Long Range Radio 868MHz RFM95 LoRa Module

This product is not available in your location yet

Description: 1. Long Range Wireless Communication: The Grove - Long Range Radio 868MHz RFM95 LoRa Module is a wireless radio transceiver that provides long-range, low-power wireless communication using the LoRa (Long Range) modulation technique. 2. Operating Frequency: It operates in the European ISM band at 868 MHz frequency and supports both LoRa and FSK (Frequency Shift Keying) modulations. 3. Data Rates and Range: With adjustable spreading factor, it offers data rates between 50 bps to 50 Kbps and a maximum range of up to 16km in open space with an optimized LoRa antenna setup. 4. Power Consumption: The RFM95 module is designed for low power applications, consuming around 13mA during transmission and 4mA during reception, making it suitable for battery-operated projects. 5. Compatibility: This module can be easily integrated into various Arduino platforms using the Grove Shield or by soldering directly onto a PCB with available GPIO pins. 6. Sleep Mode: The RFM95 supports sleep mode to mi

View Technical Documentation

Specification	Details
Frequency	868 MHz (EU433 CN470 EU868 AS923)
Modulation	LoRa Spread Spectrum
Communication Mode	Half-duplex
Data Rate	Up to 300 kbps
Range	Up to 15 km (line-of-sight)
Power Consumption	Typical: 110 mA Max: 180 mA
Operating Voltage	1.8-3.6V
Sensitivity	-137 dBm
Transmission Current	100 mA
Reception Current	10 mA
Package	LGA (leadless)
Size and Weight	13mm x 12mm 2g
