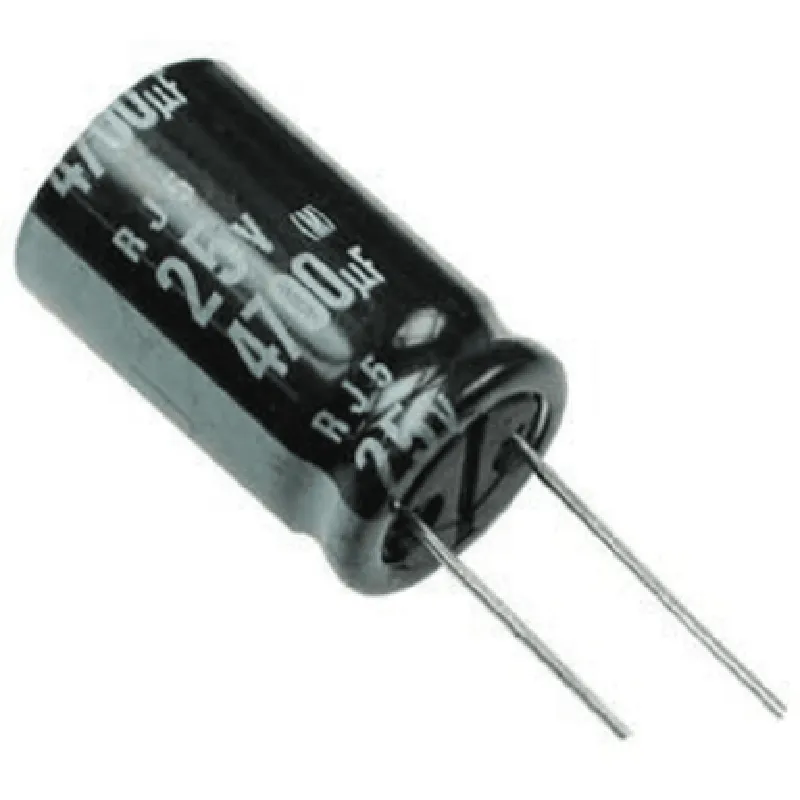

Description: 1. This is a pack of five (5) 4700uF/25V electrolytic capacitors, ideal for energy storage and smoothing applications in IoT projects and electronic circuits. 2. Features: Each capacitor has a capacitance value of 4700 microfarads (uF), rated voltage of 25 volts (V), and a temperature range of -55°C to +85°C. They are radial lead design with a maximum diameter of 31mm and height of 59mm. 3. Electrolytic Capacitor Function: These capacitors store energy in an electrochemical reaction, providing larger energy storage capacity and better voltage stability than ceramic or film capacitors. They are commonly used for filtering and power supply applications. 4. Benefits in IoT Projects: In IoT projects, these capacitors can be utilized to smooth DC voltages, reduce ripple voltages, store energy, and help maintain the stability of power supplies or voltage regulators. 5. Capacitance Rating: A high capacitance value of 4700uF allows these capacitors to store more charge, making them suitab
| Specification | Details |
|---|---|
| Capacitance | 4700 μF (microFarads) |
| Voltage Rating | 25 Volts DC |
| Working Temperature | -55°C to +85°C |
| Leakage Current | ≤10 μA @ 1 VDC @ 120 Hz |
| Dissipation Factor | ≤0.1% @ 100 Hz |
| ESR (Equivalent Series Resistance) | ≈2.5 Ohms @ 1 kHz |
| Tolerance | ±20% |
| Packaging | Pack of 5 capacitors |
| Material | Electrolytic capacitor with Aluminum case and Mylar film |
| Mounting Style | Through-hole (axial lead) |
