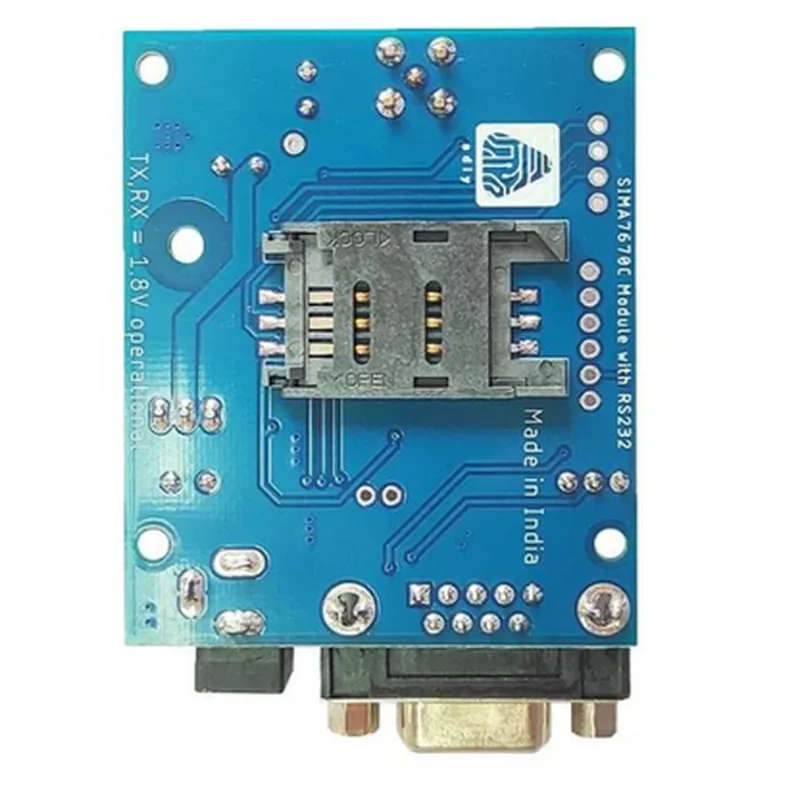

Description: 1. The SIM7670C 4G LM137 with Antenna is a versatile IoT module that integrates a 4G LTE Cat.M1/NB1 modem, an antenna, and the ADIY development board. It's ideal for creating 4G IoT projects, remote monitoring systems, and industrial automation applications. 2. Connectivity: This module supports 4G LTE FDD bands: 1(2100MHz), 3(1800MHz), 5(850MHz), 7(2600MHz), 8(900MHz), 12(700MHz), and 20(800MHz). It also features an integrated GPS receiver for accurate location tracking. 3. Power Management: The SIM7670C includes a power management IC (PMIC) that ensures optimal power consumption, making it suitable for battery-powered applications. This module can be powered through the external VBAT pin or the micro-USB port. 4. Development Board: ADIY development board provides an easy-to-use platform to connect and program the SIM7670C. The board features an ATmega328P microcontroller, which can be flashed with Arduino IDE for simple programming tasks. 5. Interfaces: This module offers variou
| Specification | Details |
|---|---|
| Product Name | SIM7670C 4G LM137 |
| Connectivity Standard | GSM 4G |
| Form Factor | Foldable |
| Network Frequency | Supports multiple frequency bands |
| Antenna Type | Internal/External antenna options |
| Power Supply | 5V DC 500mA |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Supported Modes | 4G GSM WCDMA LTE |
| Data Speed | Up to 150 Mbps (DL) / up to 50 Mbps (UL) |
| Power Management | Supports power saving features |
