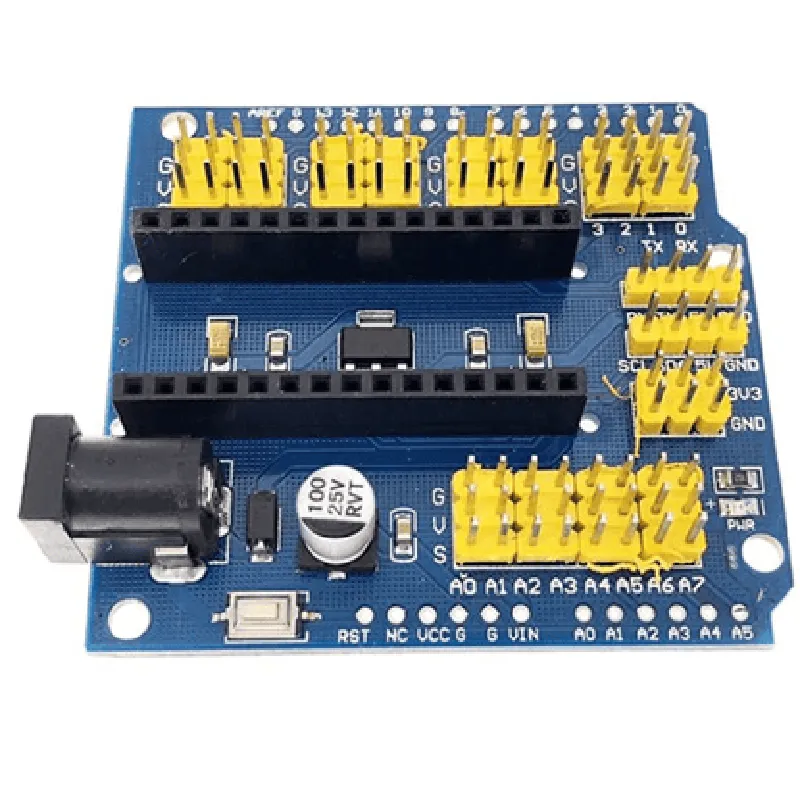

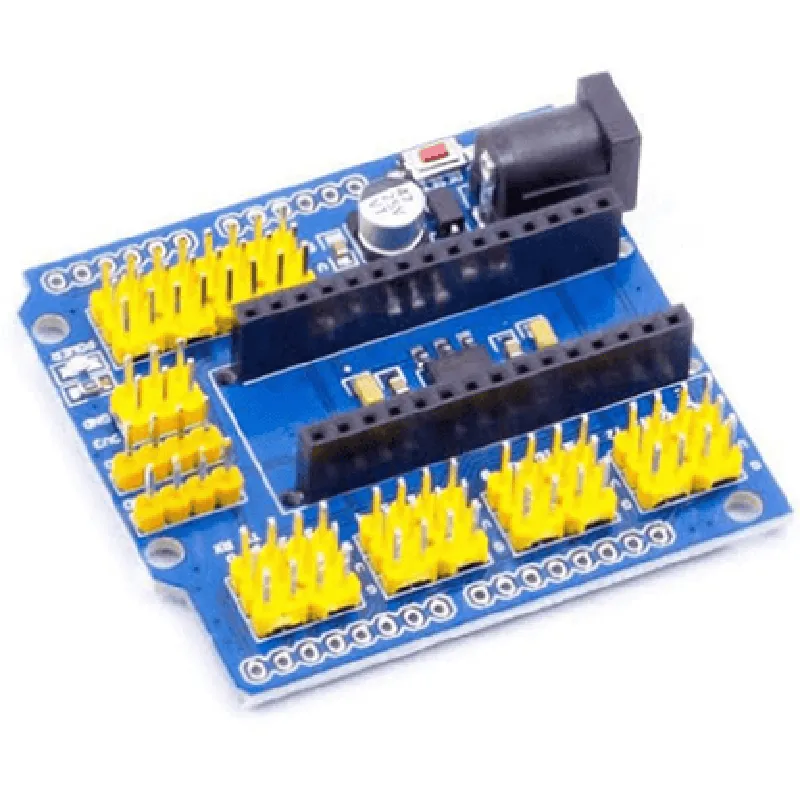

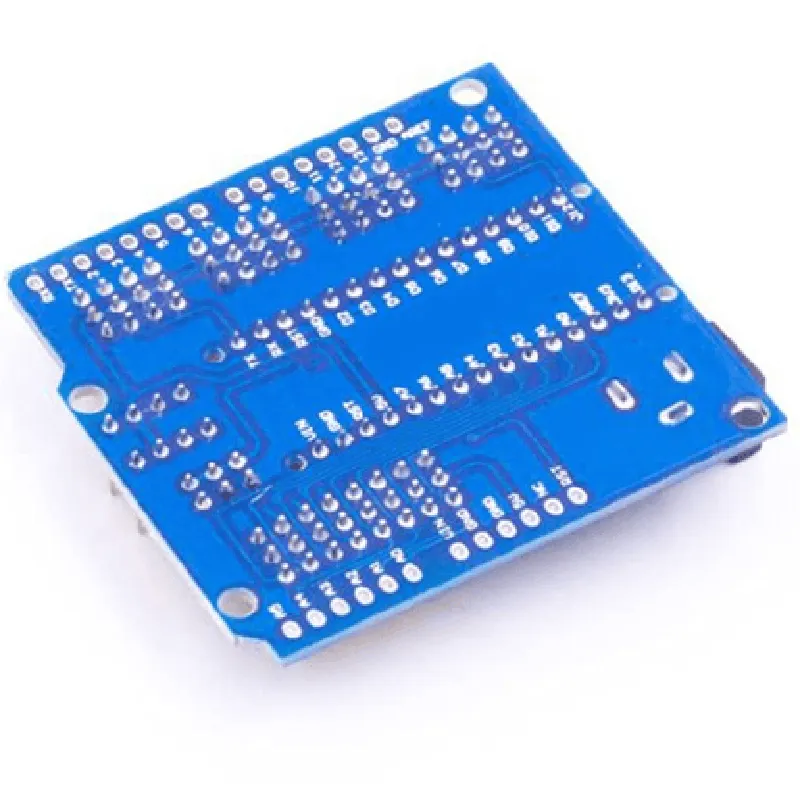

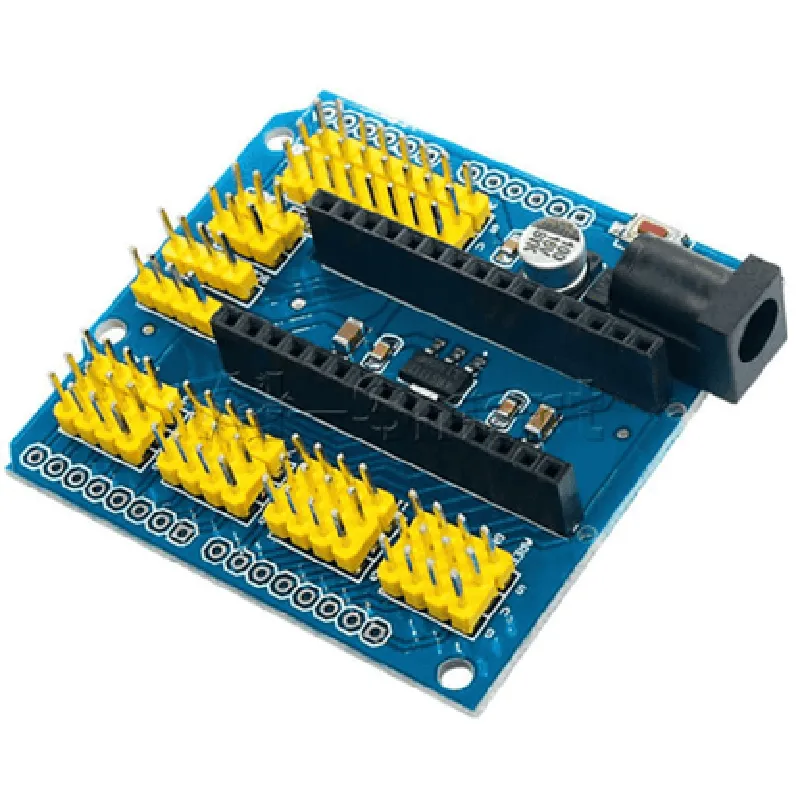

Description: 1. Nano Expansion Shield is an add-on board designed for Arduino Nano microcontroller boards, expanding their functionalities through additional digital and analog inputs/outputs. 2. It offers a total of 34 new I/O pins (18 digital and 16 analog), allowing users to connect more sensors, actuators, or other peripherals to their Arduino Nano projects. 3. The shield features two 10-bit analog input channels with an adjustable gain of x2, suitable for precise measurement of low-level signals, such as temperature, light intensity, and voltage levels. 4. It includes a real-time clock (RTC) with battery backup, allowing the Arduino Nano to keep accurate time even without external power or computer connection. 5. The Nano Expansion Shield also features a serial EEPROM for data storage, enabling users to save project settings and configurations without the need for an additional external memory chip. 6. The board includes several useful onboard components, such as a voltage regulator that
| Specification | Details |
|---|---|
| Interface | Arduino Nano (ATmega328) expansion board |
| Chipset | ATmega328P Microcontroller |
| Voltage | 5V (operating) 7-12V (powering) |
| Power Consumption | ~20mA @ 5V |
| GPIO Pins | 14 (digital input/output) 6 (analog input) |
| Communication | UART (Serial) I2C SPI |
| Dimensions | 50mm x 60mm (1.97in x 2.36in) |
| Weight | ~20g |
| Operating System | Arduino IDE (optional) |
| Compatibility | Arduino Nano (ATmega328) Arduino Uno |
| Shield Type | General-purpose Breadboard-compatible |
