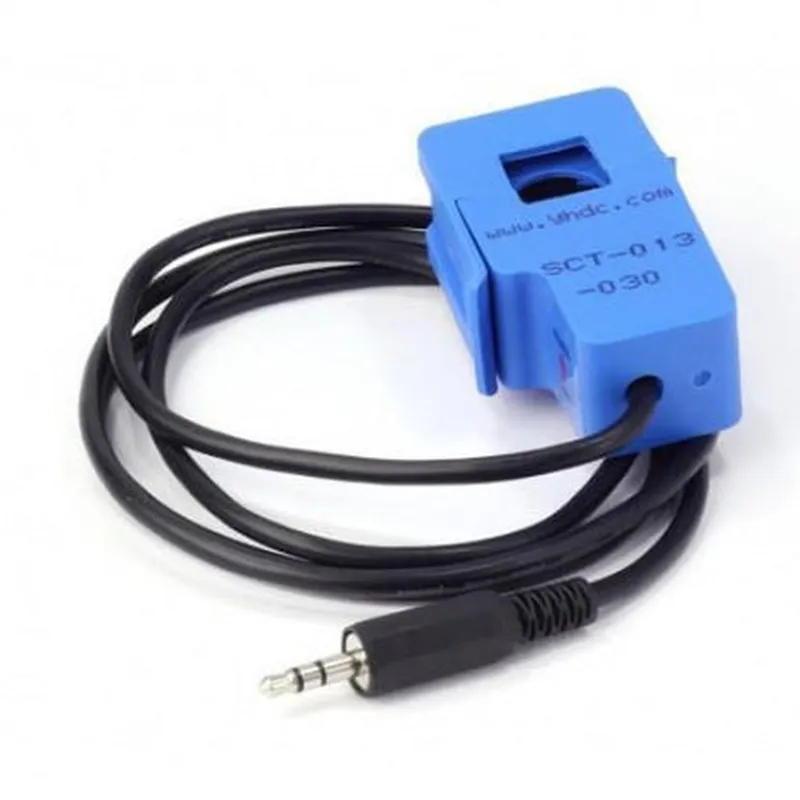

Non-Invasive SCT-013 30A AC Sensor Split Core Current Transformer

This product is not available in your location yet

Description: 1. Non-Invasive SCT-013 is a 30A AC Sensor, a type of split core current transformer designed for easy installation and measurement of electrical current without breaking the circuit (non-invasive). 2. Design: Featuring a split-core design, this sensor can be installed around existing wires or conductors, making it suitable for use in various IoT applications where installing traditional transformers is not feasible. 3. Accuracy and Precision: SCT-013 offers high accuracy (±1%) and precision, ensuring reliable measurements of current flow in real time, which is essential for effective monitoring and controlling IoT systems. 4. Input Voltage: Operating on a wide input voltage range of 85V-264V AC, this sensor can be used with various power sources to cater to diverse IoT applications and configurations. 5. Output Signal: The sensor produces an analog output signal in the form of a current proportional to the measured current. This signal is typically transmitted through a communica

View Technical Documentation

Specification	Details
Sensor Type	Split Core Current Transformer
Maximum Current	30 Amps (AC)
Operating Frequency	15 Hz to 400 Hz
Accuracy Class	0.5 (Typical ±1% Max Error)
Turn Ratio	100:1 (Typical)
Primary Resistance	0.2 ohms (Typical)
Secondary Resistance	0.002 ohms (Typical)
Bandwidth	DC to 10 kHz
Temperature Range	-40°C to +80°C
Isolation Voltage	3 kV AC (1500 V DC)
Certifications	UL ENEC CE
Dimensions	30 mm x 15 mm x 20 mm
Material	Magnetic Core with Copper Windings
Ambient Temperature	+25°C (Typical)
