555 Timer IC

Stufin

This product is not available in your location yet

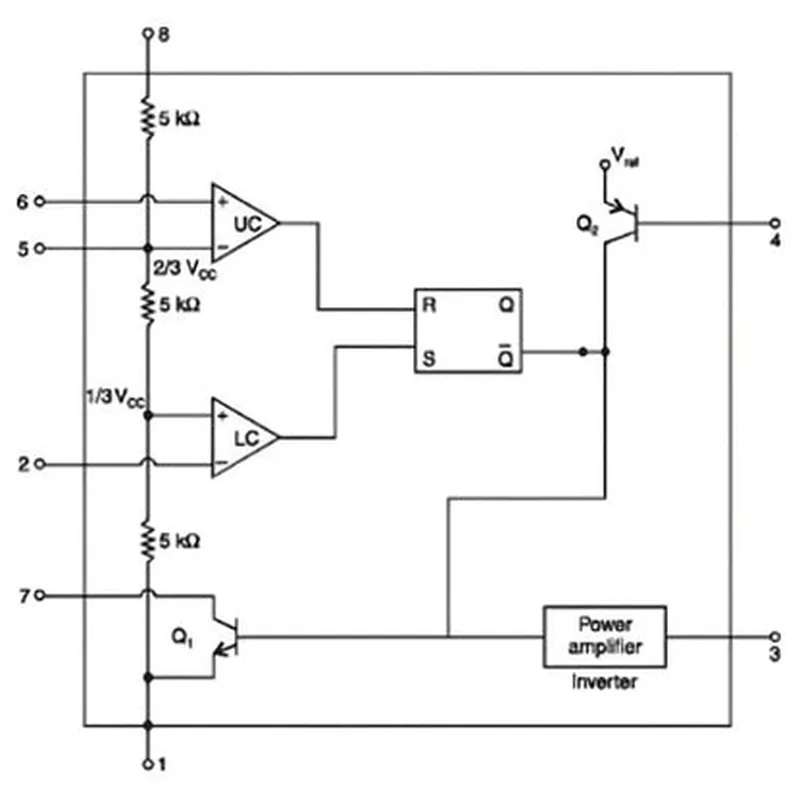

Description: 1. The 555 Timer Integrated Circuit (IC) is a versatile and widely used timing device in electronic projects and applications due to its simplicity and functionality. 2. It is an 8-pin IC with basic functionalities of a monostable multivibrator, astable multivibrator, and a timer/counter circuit. 3. The 555 Timer's primary feature includes the ability to generate precise time delays (ranging from milliseconds to minutes) through external components like resistors and capacitors. 4. It operates using an external voltage source between 4V and 15V, making it suitable for a wide range of applications and systems. 5. The 555 Timer IC's threshold voltages are adjustable via two external resistors, providing flexibility in setting time delays based on specific application requirements. 6. In monostable operation, also known as one-shot, the circuit generates a single output pulse of a desired length when triggered by an external signal. 7. In astable operation, the 555 Timer IC oscillates co

View Technical Documentation

Specification	Details
Supply Voltage	4.5V to 18V (±10%)
Operating Current	200μA (max)
Threshold Voltage	1/3 of Vcc
Reference Voltage	2/3 of Vcc
Trigger Threshold	±10% of Vcc
Output Duty Cycle	Adjustable from 10% to 90%
Operating Frequency	Up to 500 kHz (at 5V)
Power-Down Current	≤1μA
Package Type	DIP SOIC TSSOP etc.
Pin Count	8 or 14 (depending on package type)
